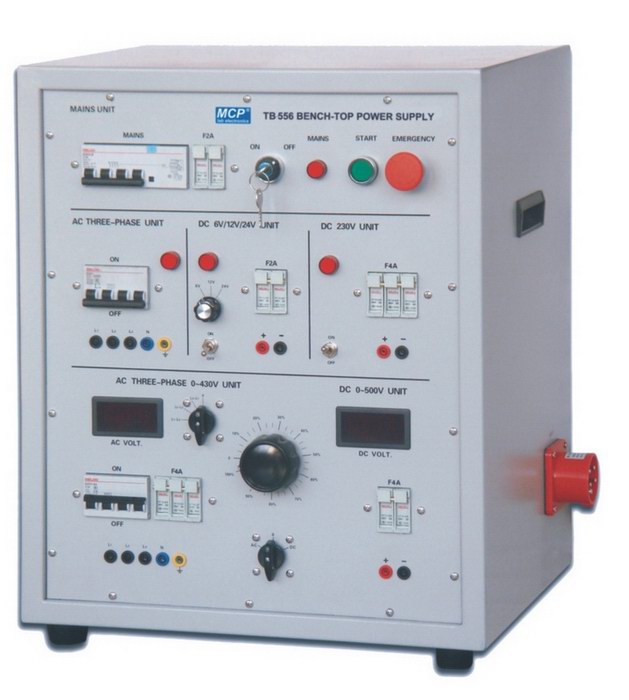

TB556
BENCHTOP ELECTRICAL POWER SUPPLY
Features
.General control with key-locked switch
.Protected with high sensitivity T.M.C.B. And emergency pushbutton
.Digital voltage meters for both AC and DC output monitoring
.4mm safety socket for connection
.Variable three-phase AC power supply 0~430V
.Variable rectified DC power supply 0~500V
.400V three-phase AC output
.230VAC outlets
.Fixed 220 VDC output
.Fixed regulated 6/12/24 VDC output
Specifications
.Mechanical characteristics
.Built in structural steel and welded sheet steel, finished with epoxy paint
.Silk screen front panel and handles on both sides Electrical characteristics
.AC thermal-magnetic circuit breaker: 4P/16A/400V/30mA
.Three-phase AC output: 400V/10A+N and PE
.AC outlet: 230V/10A (2 universal single-phase sockets)
.Fixed DC output: 220V/3A, rectified
.Variable three-phase AC output: 0~430V/6A
.Variable DC output: 0~500V/4A, three-phase rectified
.Fixed regulated DC output: 6V/12V/24 V/2A, electronic protection
.Power supply: 3×400VAC/N/PE/50Hz (or other voltages upon request)
.Dimensions(W×H×D): 525×500×600mm
.Weight: 50kg
