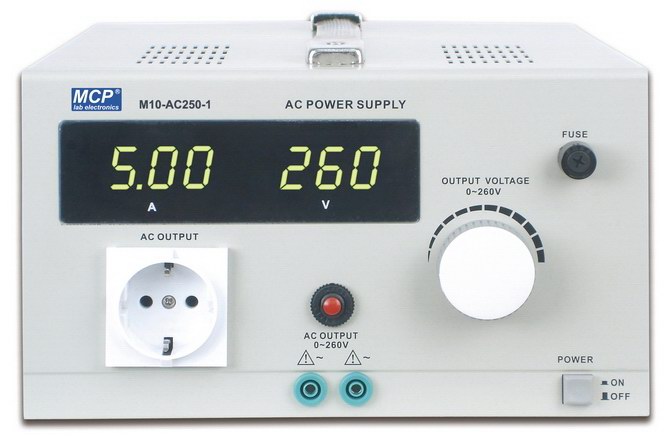

M10-AC250-1
Features
.Digital display for output voltage and current
.Output voltage and current continuously adjustable
.Over current protection
.Isolative safety
Specifications
.Iutput voltage: 230 (220) VAC
.Output voltage: 0~260 VAC
.Output current: Max. 5A
.Output power: Max. 1300VA
.Protection: over current
.Display Accuracy: Voltmeter ±(2.5%Rdg+2 digits)
Ammeter±(2.5%Rdg+2 digits)
.Dimensions(W×H×D): 260×160×340mm
.Weight: 17kg

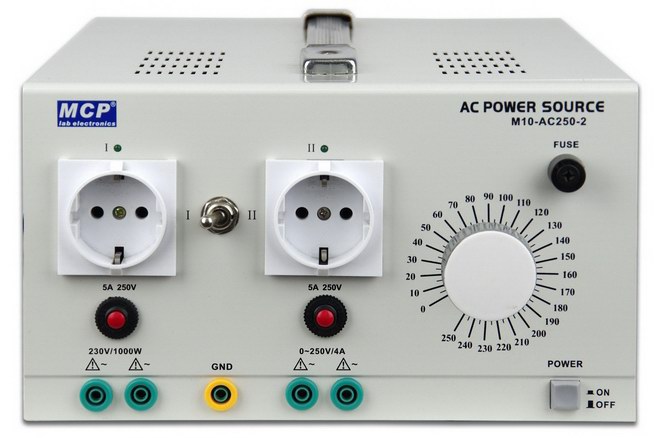

M10-AC250-2
Features
.Output separate, isolative safety
.One way for output voltage continuously adjustable
.One way for fixed output voltage (selectable)
.High efficiency and convenient
Specifications
.Iutput voltage: 230 (220) VAC
.Output 1 voltage: 230 VAC
.Output 1 current: Max. 4.35A
.Output 1 power: Max. 1000VA
.Output 2 voltage: 0~250 VAC
.Output 2 current: Max. 4A
.Output 2 power: Max. 1000VA
.Protection: over current
.Dimensions(W×H×D): 260×160×340mm
.Weight: 16kg
