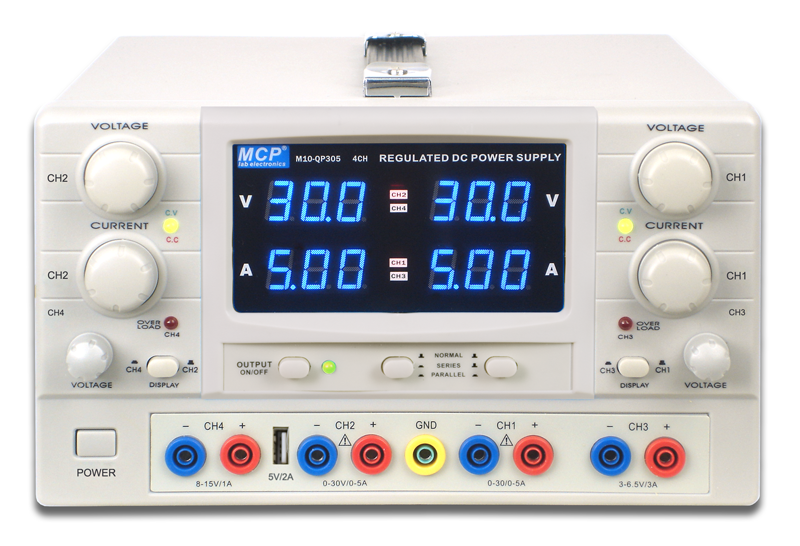

M10-QP SERIES
MULTI OUTPUT ADJUSTABLE DC POWER SUPPLY
Features
. Output off function
. Quad independent DC outputs
. USB power output (5V/2A)
. Independent, series and parallel variety output
. Constant voltage and constant current
. Low ripple and noise
. Plastic panel
. Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously
Specifications
.Line Regulation: CV 1X10-4+3mV CC 2X10-3+3mA
.Load Regulation: CV 1X10-4+4mV CC 2X10-3+5mA
.Ripple & Noise: CV 1mVrms CC 3mA rms
.Display Accuracy: ±0.5%Rdg+2digits
.Input Voltage: 110~127VAC±10%, 220~240VAC±10% Switchable
| Model | Independent Output | Series Output | Parallel Output | Dimensions
(WxHxD) | Weight (kg) |
|---|
| M10-QP303E | CH1/0~30V/0~3A
CH2/0~30V/0~3A
CH3/3~6.5V/3A
CH4/8~15V/1A | CH1+CH2
0~60V/0~3A
CH3/3~6.5V/3A
CH4/8~15V/1A | CH1//CH2
0~30V/0~6A
CH3/3~6.5V/3A
CH4/8~15V/1A | 255x155x320mm | 10 |
| M10-QP305E | CH1/0~30V/0~3A
CH2/0~30V/0~3A
CH3/3~6.5V/3A
CH4/8~15V/1A | CH1+CH2
0~60V/0~5A
CH3/3~6.5V/3A
CH4/8~15V/1A | CH1//CH2
0~30V/0~10A
CH3/3~6.5V/3A
CH4/8~15V/1A | 12 |
