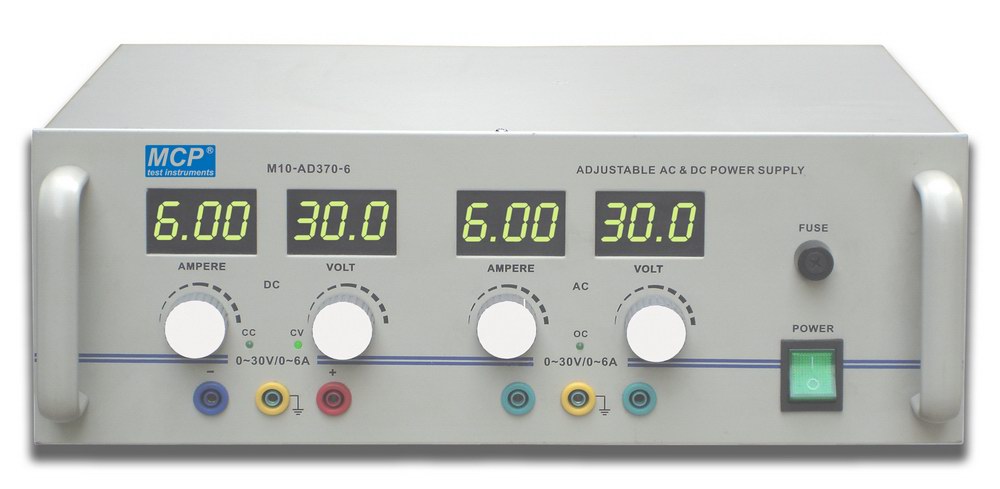

M10-AD370M

Features

.AC and DC combined power supply

.DC constant voltage and constant current

.AC output current limited and continuous adjusting

.AC output over load electronic protection

Specifications

DC output

.Output Voltage: 0~30V

.Output Current: 0~6A

.Line Regulation: CV1X10^-4+3mV CC2X10^-3+3mA

.Load Regulation: CV1X10^-4+5mV CC2X10^-3+5mA

.Ripple & Noise: CV1mVrms CC3mArms

.Display Accuracy: Votlmeter ±(0.2%Rdg+2digits) Ampmeter±(1.0%Rdg+2digits)

AC output

.Output Voltage: 0~30V

.Output Current: max.6A

.Display Accuracy: Voltmeter ±(1.0%Rdg+2digits) Ampmeter ±(1.0%Rdg+2digits)

.Input Voltage: 220~240VAC±10%

.Dimensions: 380(W)x140(H)x300(D)mm

.Weight: 12kg
