PB C series magnetic powder brake controller
The controller is delivering a constant current for controlling the magnetic powder brake.
| Technical Data | PB06C | PB25C |
| Output current | 0~1ADC | 0~3ADC |
| Max. output voltage | 9VDC | 12VDC |
| Adaptive power brake | PB03B/PB06B | PB12B/PB25B |
| Dimension | 170 × 135 × 70 mm | 240 × 170 × 90 mm |

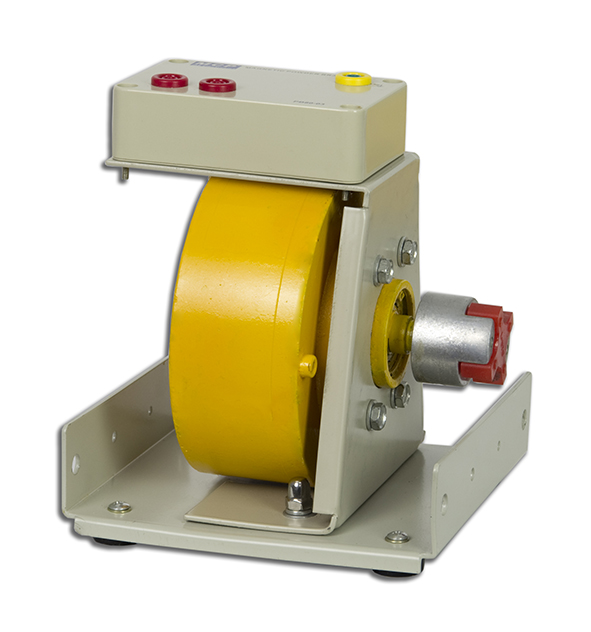

PB B series magnetic powder brake
| Technical Data | PB03B | PB06B | PB12B | PB25B |
| Max.torque | 3Nm | 6Nm | 12Nm | 25Nm |
| Max.control current | 0.5ADC | 1ADC | 2ADC | 3ADC |
| Shaft heigh | 63mm | 75mm | 80mm | 95mm |
| Dimension | 150 × 130 × 145 mm | 150 × 180 × 177 mm | 150 × 180 × 182 mm | 150 × 180 × 197 mm |
