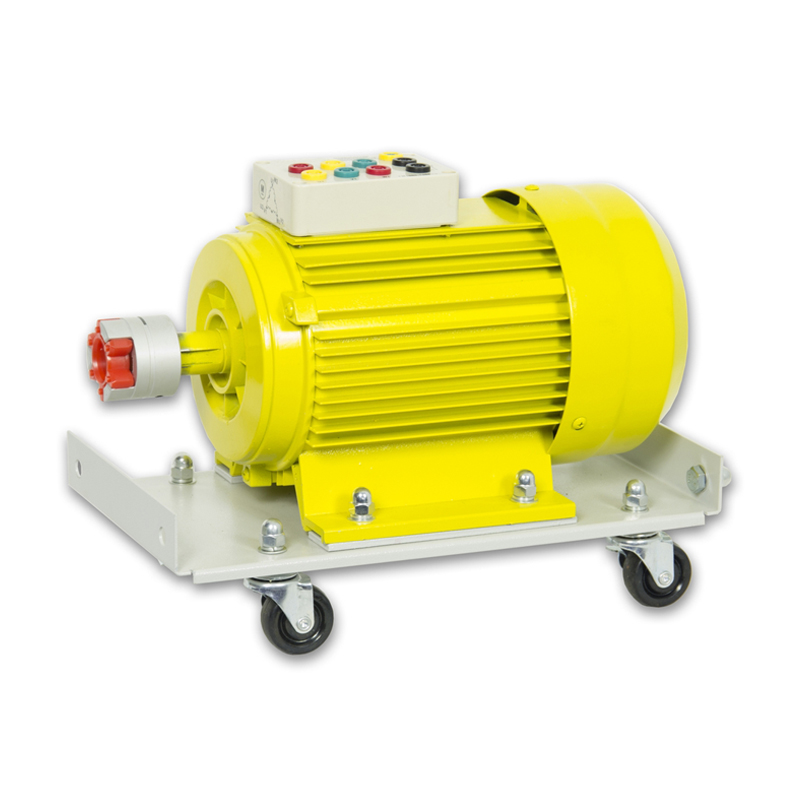

TM1000-1500
Three-phase asynchronous squirrel cage motor
Votlage: 220/380V(230/400V) Current: 2A/3.5A Frequency: 50Hz Output power: 1000W Rotate speed: 1400rpm Shaft height: 95mm Dimension: 340*180*250mm Weight: 13kg |
|
| TM1000-1500DS
Double speed three-phase asynchronous squirrel cage motor
Votlage: 380V(400V) Current: 2.3/2.5A Frequency: 50Hz Output power: 1000W Rotate speed: 2800/1400rpm Shaft height: 95mm Dimension: 340*180*250mm Weight: 13kg |

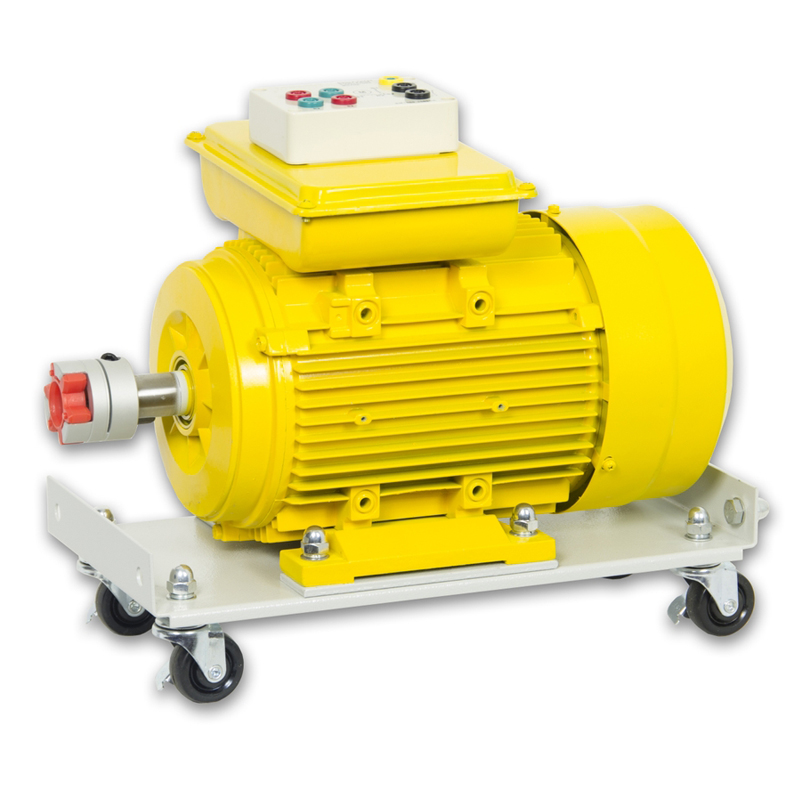

SM1000-1500SR
Single-phase start & run capacitors motor
Votlage: 220V(230V) Current: 7.2A Frequency: 50Hz Output power: 1000W Rotate speed: 1400rpm Shaft height: 95mm Dimension: 360*180(210)*290mm Weight: 18kg |
|
| SM1000-1500S
Single-phase start capacitor motor
Votlage: 220V(230V) Current: 7.2A Frequency: 50Hz Output power: 600W Rotate speed: 1400rpm Shaft height: 95mm Dimension: 360*180(210)*290mm Weight: 18kg |

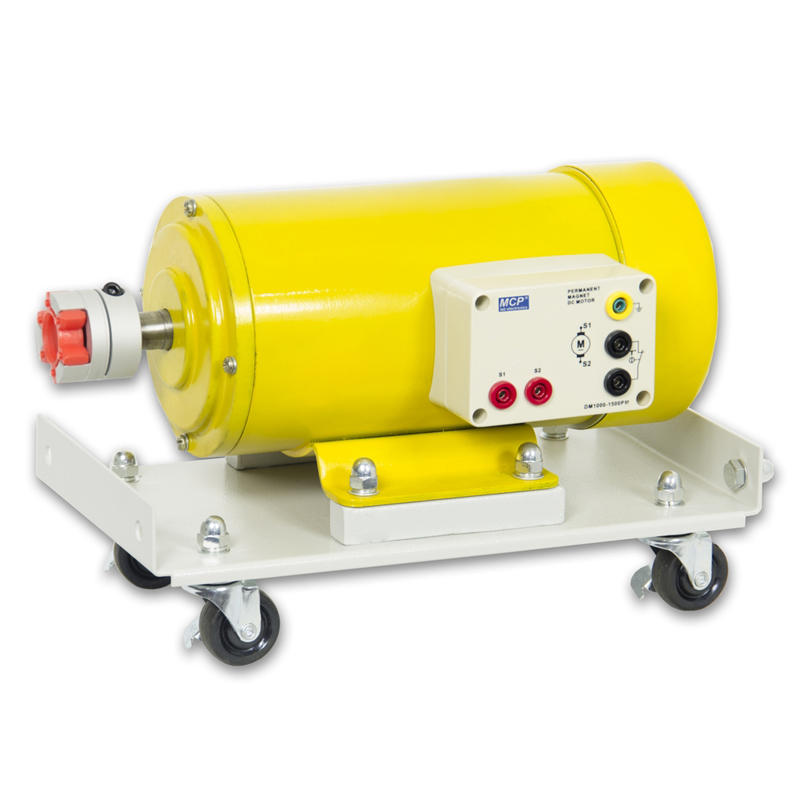

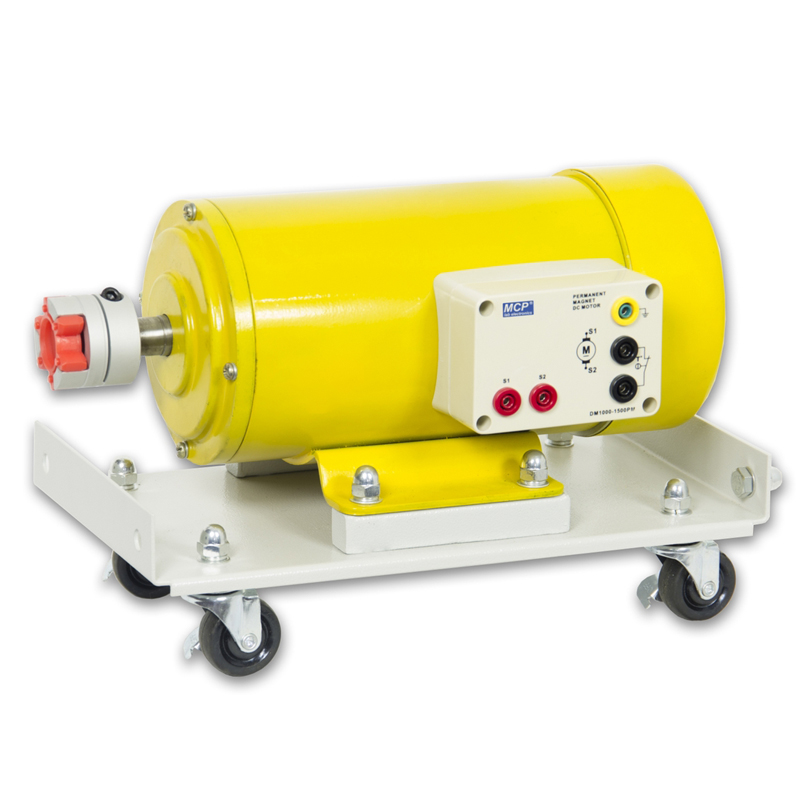

DM1000-1500PM
Permanent magnet DC motor
Armature votlage: 0~220VDC Max. armature current: 5A Max. output power: 1000W Max. rotate speed: 1500rpm Shaft height: 95mm Dimension: 370*180(200)*200mm Weight: 16.5kg |
|

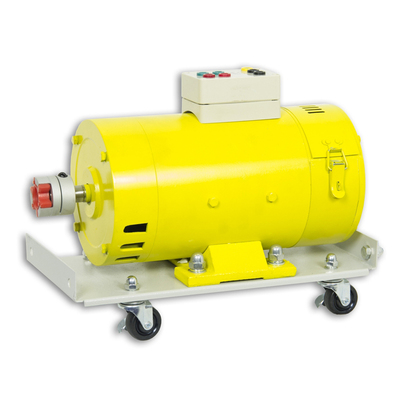

| DM1000-1500SP
Separated/shunt DC motor
Armature & excitation votlage: 0~220VDC Max. armature current: 6A Max. excitation current: 0.14A Max. output power: 1000W Max. rotate speed: 1500rpm Shaft height: 95mm Dimension: 370*180(190)*290m Weight: 26.5kg |

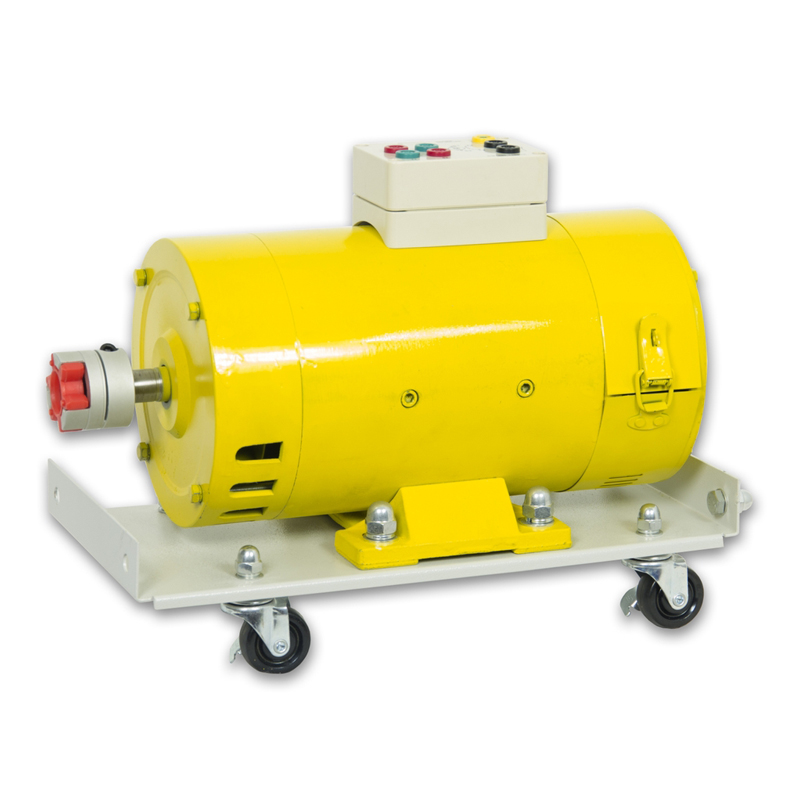

DM1000-1500SR
Series DC motor
Armature & excitation votlage: 0~220VDC Max. armature & excitation current: 7A Max. output power: 1000W Max. rotate speed: 1500rpm Shaft height: 95mm Dimension: 280*180(200)*150mm Weight: 25kg |
|

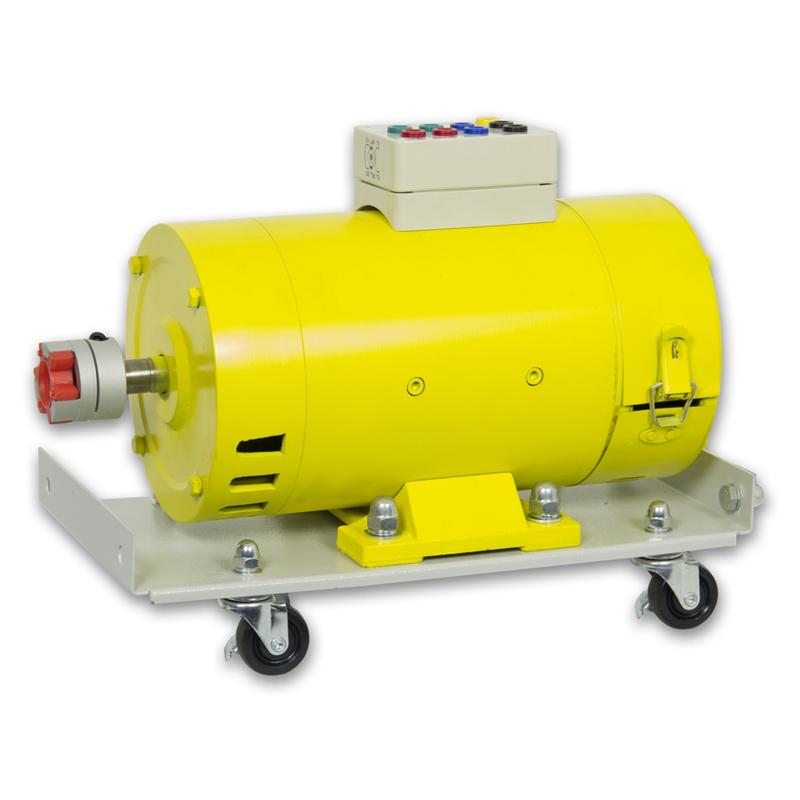

| DM1000-1500CP Compound DC motor
Armature votlage: 0~220VDC Excitation voltage: 220VDC Max. armature current:6A Excitation current: 0.14A Max. output power: 1000W Max. rotate speed: 1500rpm Shaft height: 95mm Dimension: 370*180(190)*290mm Weight: 25.5kg |
DG1000-1500SP DC generator
Excitation votlage: 0~220VDC Excitation current: 0.14A Max. output voltage: 220VDC Max. output power: 1000W Max. rotate speed: 95rpm Shaft height: 80mm Dimension: 370*180(190)*290mm Weight: 26.5kg |
|

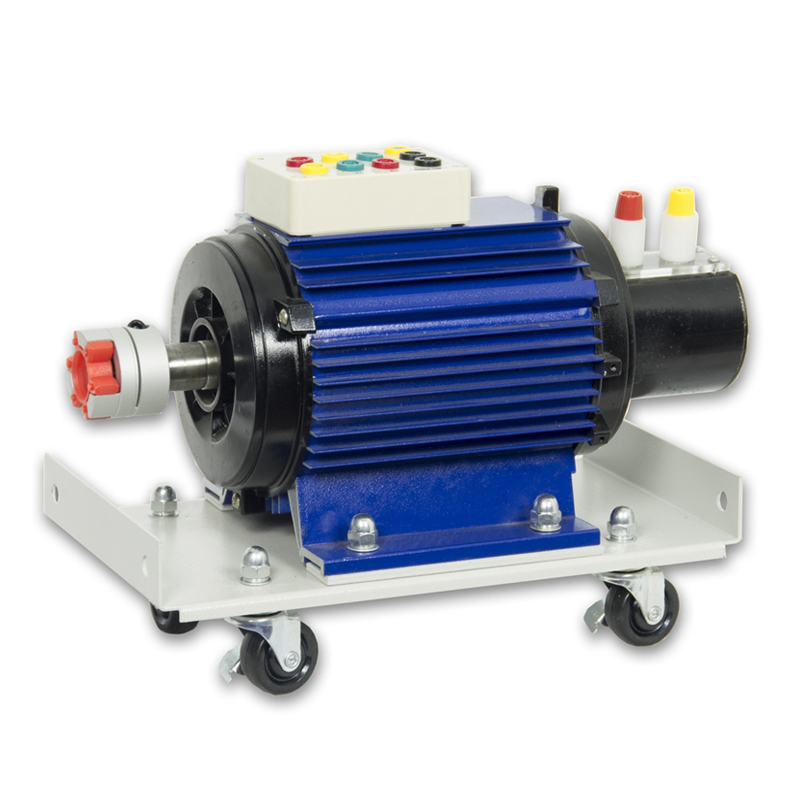

| TM1000-1500SR Three-phase slip-ring asychronous motor
Votlage: 230V/400V Current: 6A Frequency: 50Hz Output power: 1000W Rotate speed: 1250rpm Shaft height: 95mm Dimension: 360*180*250mm Weight: 12.5kg |
TM1000-1500S Three-phase synchronous motor/generator
Votlage: 230V/400V Current: 5A Frequency: 50Hz Rotor voltage: 24VDC Rotor current: 2.6ADC Output power: 700W Rotate speed: 1500rpm Shaft height: 95mm Dimension: 360*180*250mm Weight: 13kg |
|
