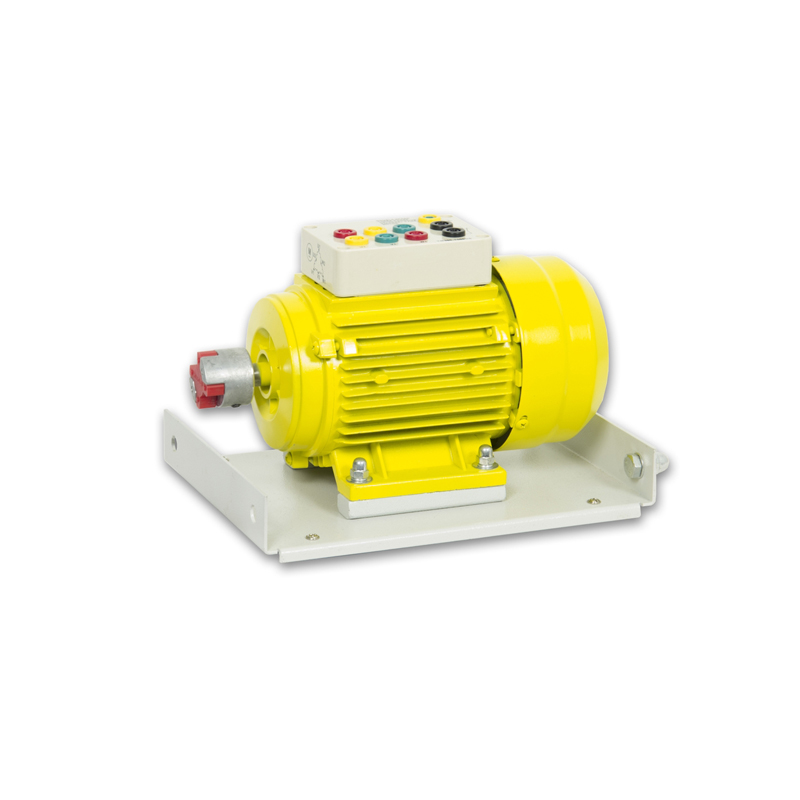

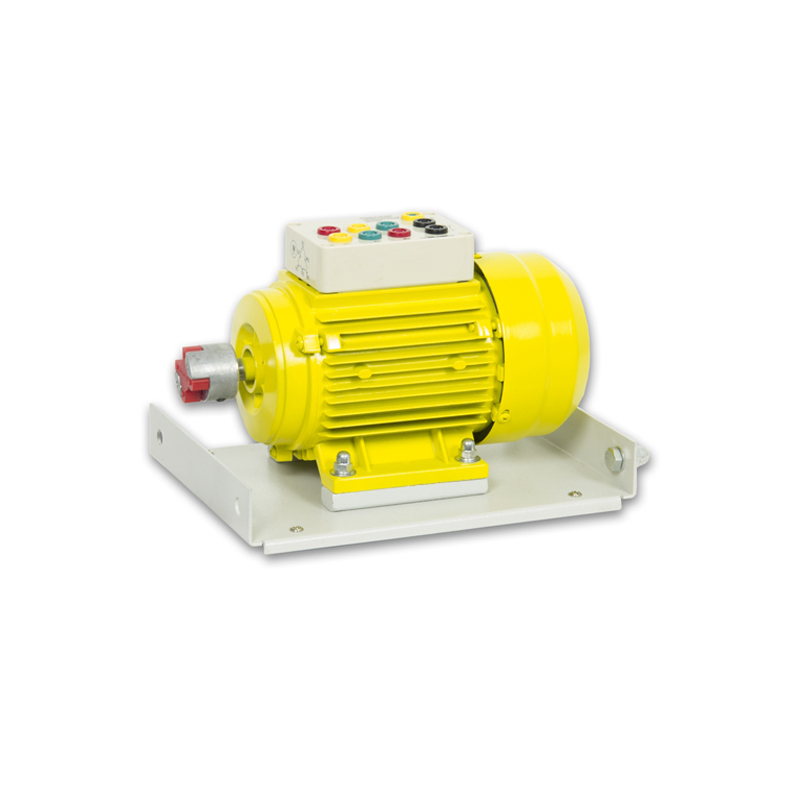

TM300-1500
Three-phase asynchronous squirrel cage motor
Votlage: 220/380V(230/400V) Current: 0.7A/1.2A Frequency: 50Hz Output power: 300W Rotate speed: 1400rpm Shaft height: 75mm Dimension: 260*180*160mm Weight: 7kg |
|
| TM300-1500DS
Double speed three-phase asynchronous squirrel cage motor
Votlage: 380V(400V) Current: 0.7/0.8A Frequency: 50Hz Output power: 300W Rotate speed: 2800/1400rpm Shaft height: 75mm Dimension: 260*180*160mm Weight: 7kg |

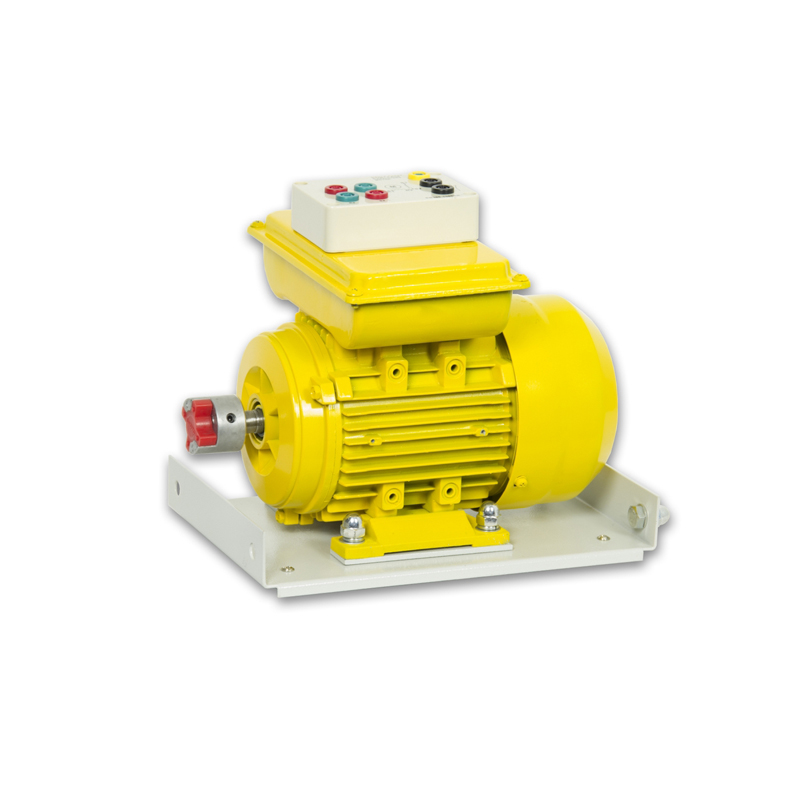

SM300-1500SR
Single-phase start & run capacitors motor
Votlage: 220V(230V) Current: 2.4A Frequency: 50Hz Output power: 300W Rotate speed: 1400rpm Shaft height: 75mm Dimension: 260*180(185)*185mm Weight: 10.5kg |
|
| SM300-1500S
Single-phase start capacitor motor
Votlage: 220V(230V) Current: 2.4A Frequency: 50Hz Output power: 300W Rotate speed: 1400rpm Shaft height: 75mm Dimension: 260*180(185)*185mm Weight: 10.5kg |

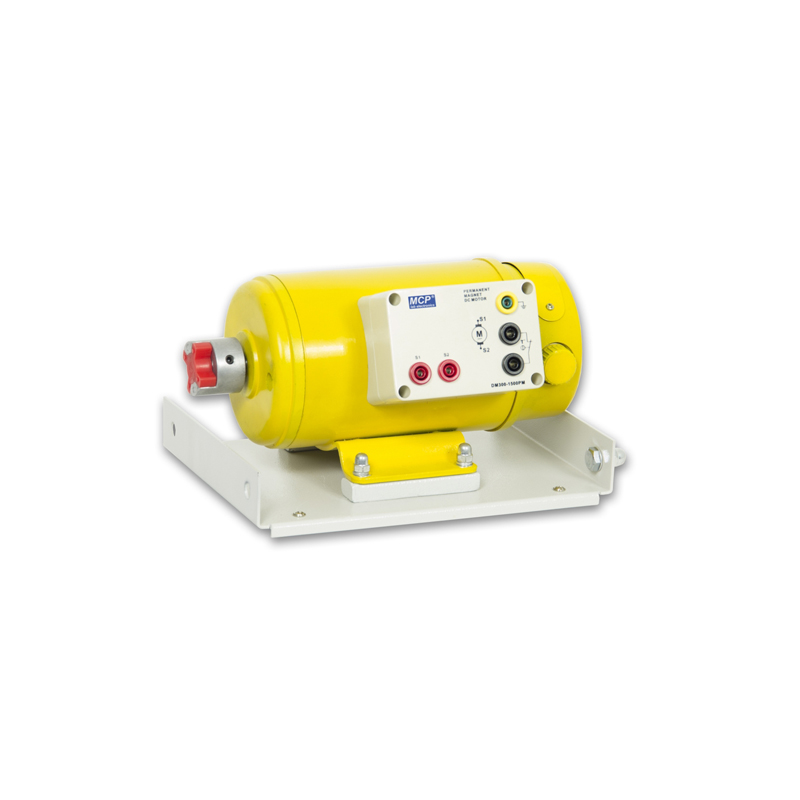

DM300-1500PM
Permanent magnet DC motor
Armature votlage: 0~220VDC Max. armature current: 1.6A Max. output power: 300W Max. rotate speed: 1500rpm Shaft height: 75mm Dimension: 230*180*140mm Weight: 8.5kg |
|

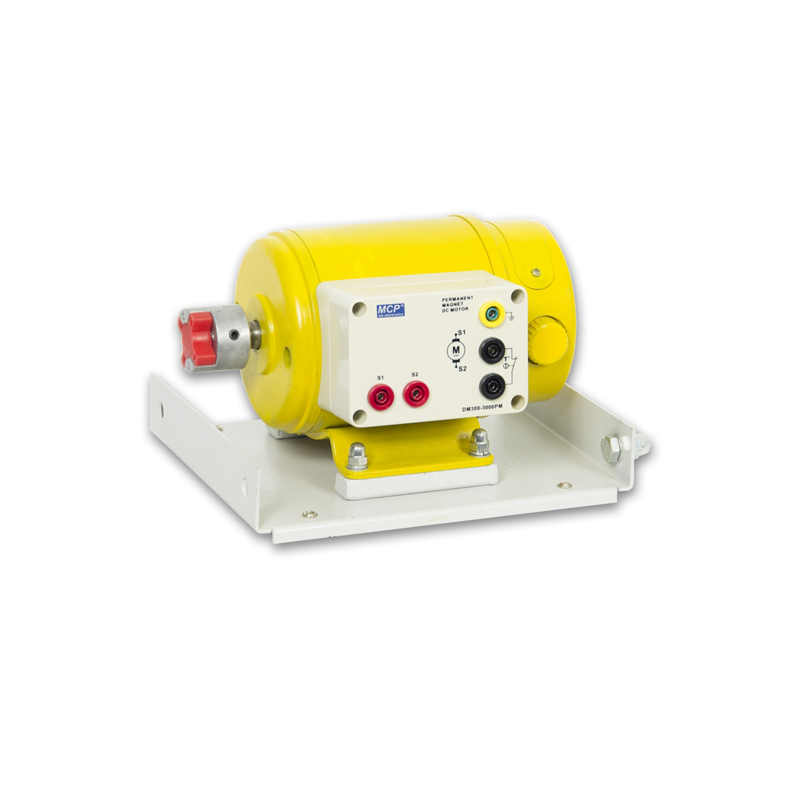

| DM300-3000PM
Permanent magnet DC motor
Armature votlage: 0~220VDC Max. armature current: 1.5A Max. output power: 300W Max. rotate speed: 3000rpm Shaft height: 75mm Dimension: 260*180(190)*150mm Weight: 6.5kg |

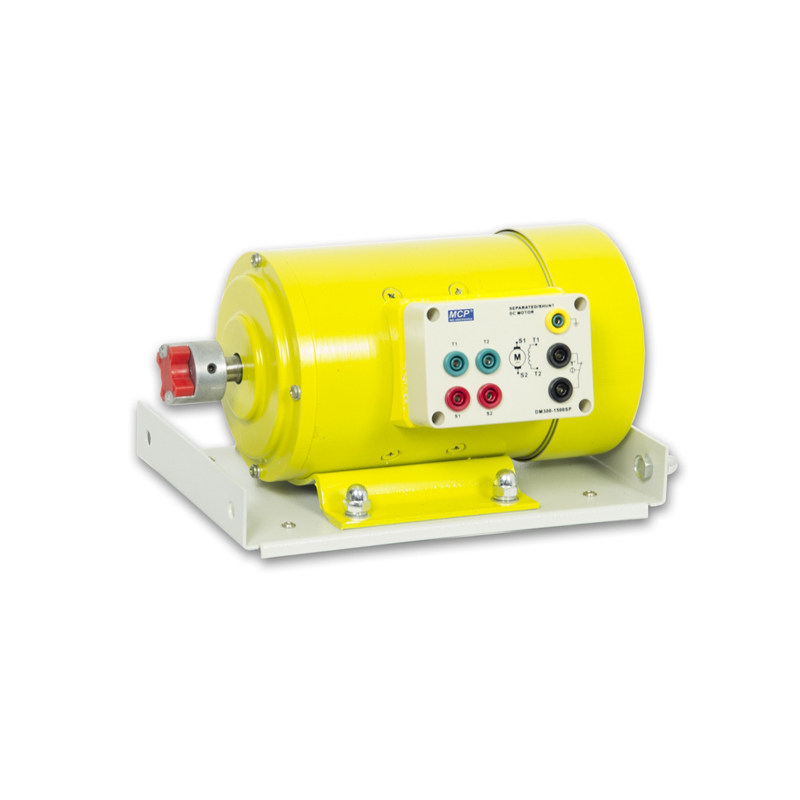

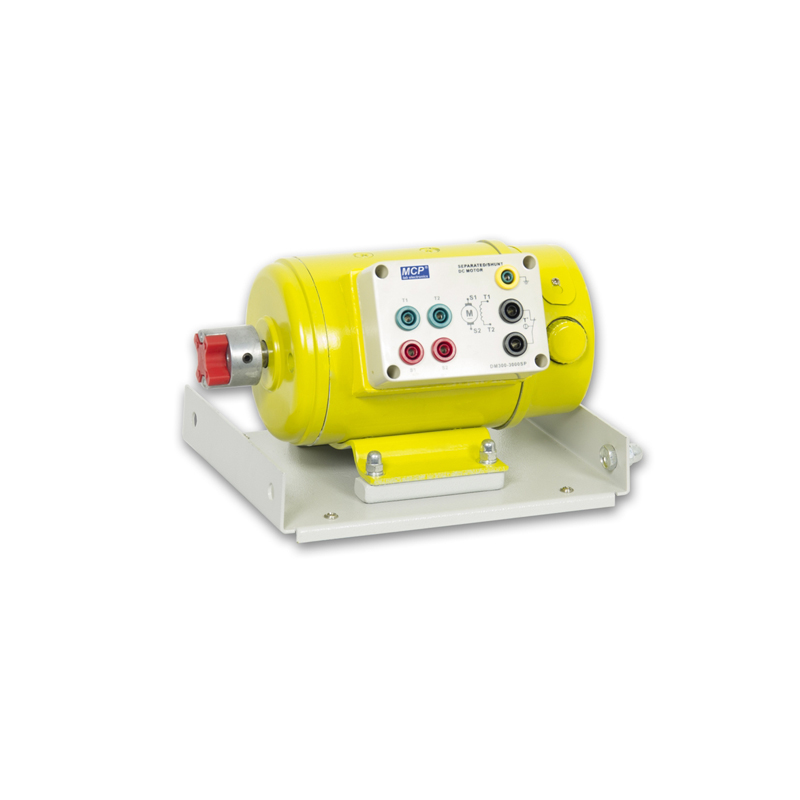

DM300-1500SP
Separated/shunt DC motor
Armature & excitation votlage: 0~220VDC Max. armature current: 1.7A Max. excitation current: 0.14A Max. output power: 300W Max. rotate speed: 1500rpm Shaft height: 75mm Dimension: 280*180(200)*150mm Weight: 13kg |
|
| DM300-3000SP
Single-phase start & run capacitors motor
Armature & excitation votlage: 0~220VDC Max. armature current: 1.9A Max. excitation current: 0.13A Max. output power: 300W Max. rotate speed: 3000rpm Shaft height: 75mm Dimension: 240*180(190)*140mm Weight: 8.5kg |

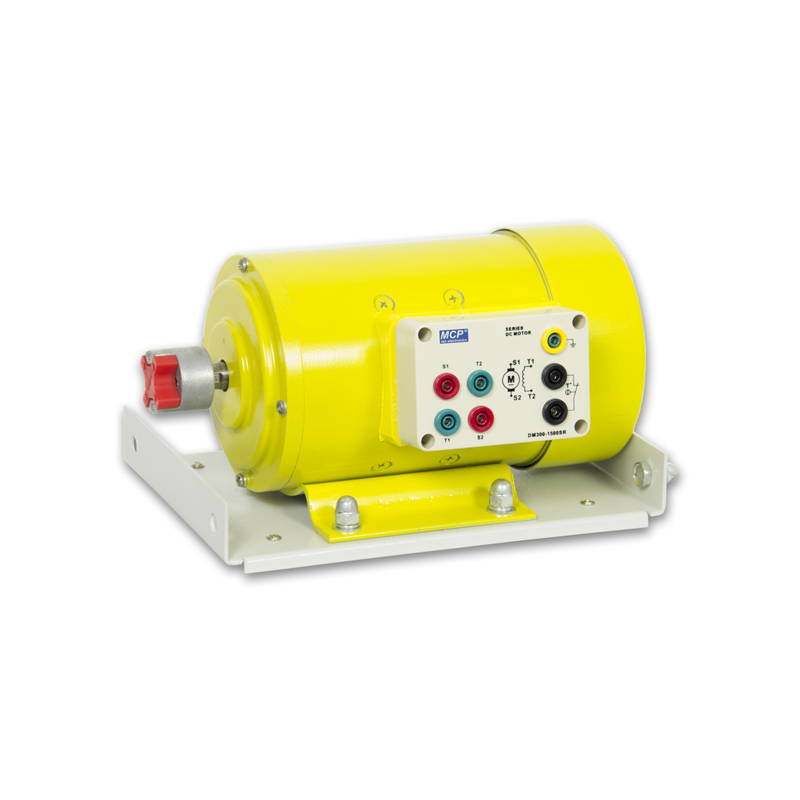

DM300-1500SR
Series DC motor
Armature & excitation votlage: 0~220VDC Max. armature & excitation current: 1.7A Max. output power: 300W Max. rotate speed: 1500rpm Shaft height: 75mm Dimension: 280*180(200)*150mm Weight: 13kg |
|

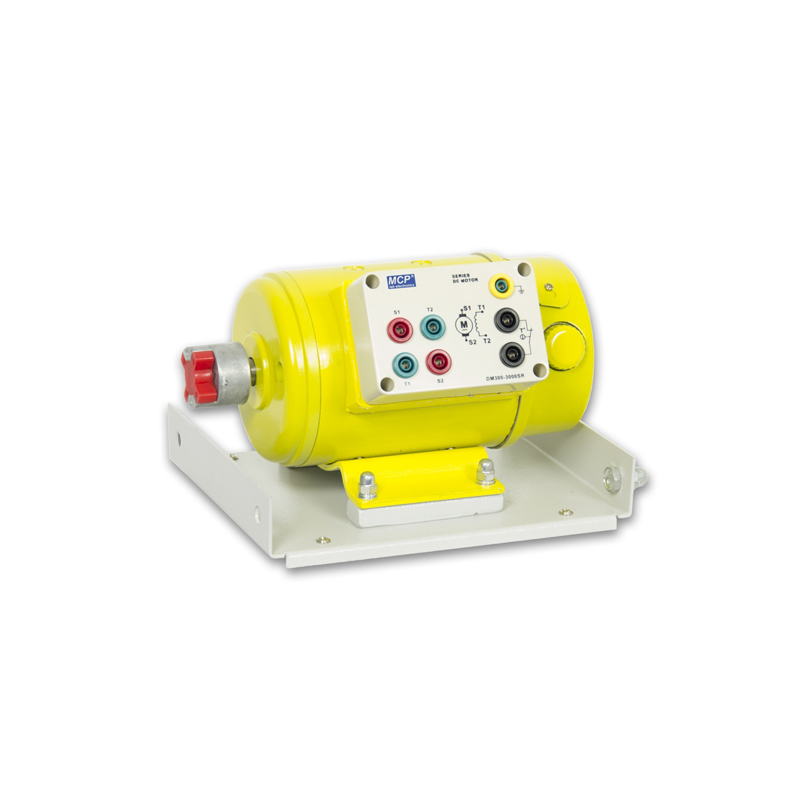

| DM300-3000SR
Series DC motor
Armature & excitation votlage: 0~220VDC Max. armature & excitation current: 2.2A Max. output power: 300W Max. rotate speed: 3000rpm Shaft height: 75mm Dimension: 240*180(190)*140mm Weight: 8kg |

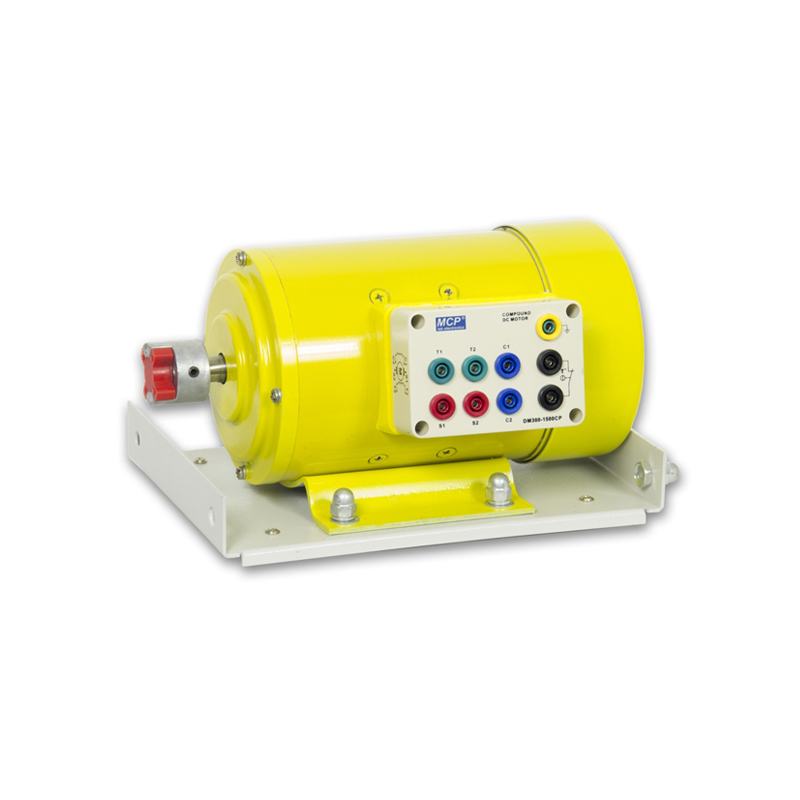

DM300-1500CP Compound DC motor
Armature votlage: 0~220VDC Excitation voltage: 220VDC Max. armature current: 1.9A Excitation current: 0.13A Max. output power: 240W Max. rotate speed: 1500rpm Shaft height: 75mm Dimension: 280*180(200)*150mm Weight: 13kg |
|

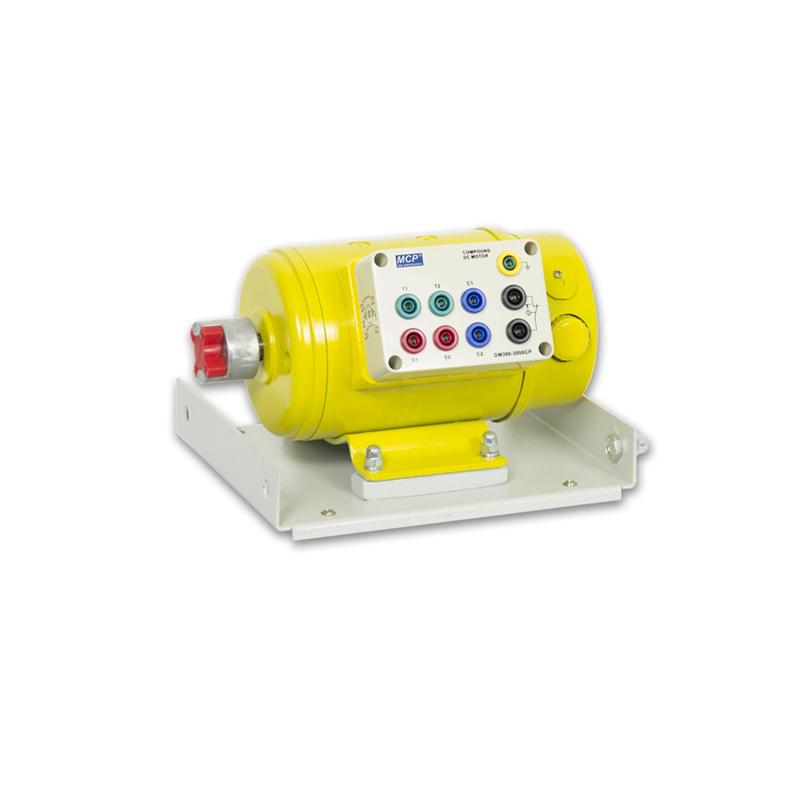

| DM300-3000CP Compound DC motor
Armature votlage:0~220VDC Excitation voltage:220VDC Max. armature current:1.8A Excitation current:0.11A Max. output power:300W Max. rotate speed:3000rpm Shaft height:75mm Dimension:240*180(190)*140mm Weight:8.5kg |

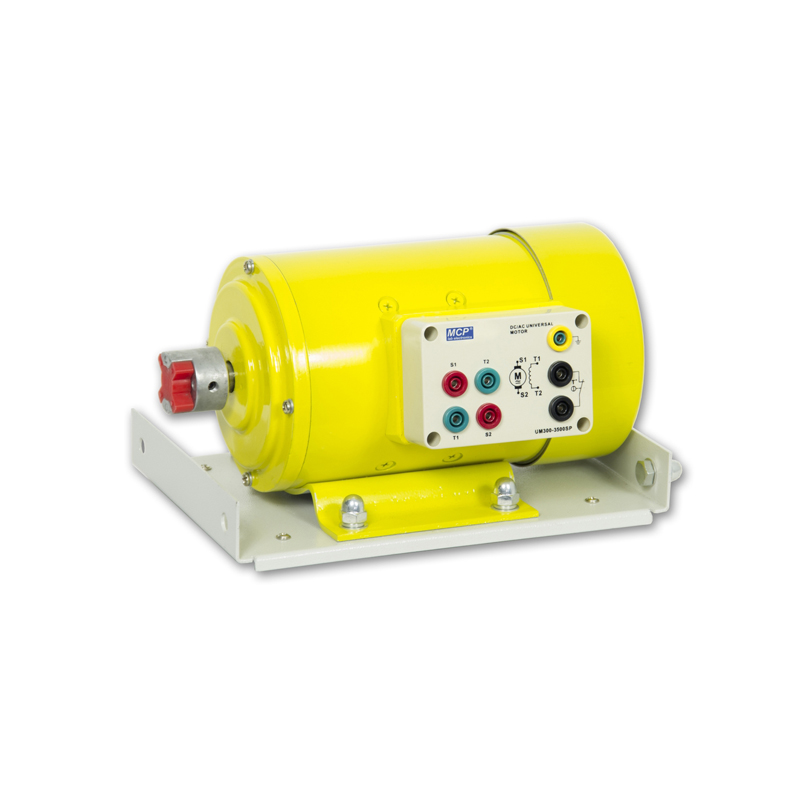

UM300-3500SP DC/AC universal motor
Armature & excitation votlage: 220VDC/AC Max. armature & excitation current: DC 2.0A / AC 3.9A Max. output power: 300W Max. rotate speed: 3500rpm(DC) / 3700rpm(AC) Shaft height: 75mm Dimension: 280*180(200)*150mm Weight: 12kg |
|

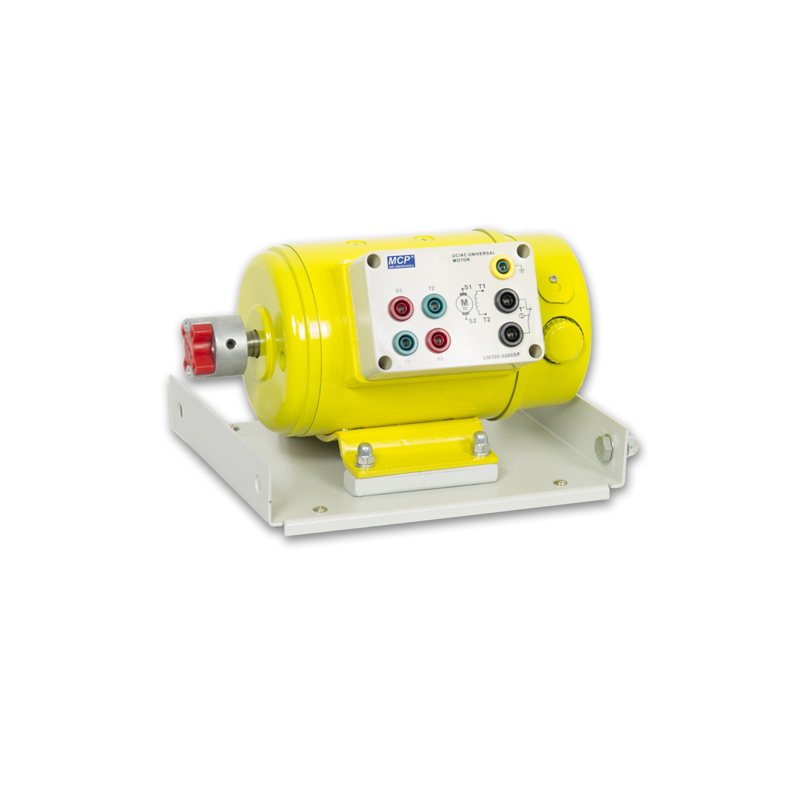

| UM300-6000SP DC/AC universal motor
Armature & excitation votlage: 220VDC/AC Max. armature & excitation current: DC 3.5A / AC 6A Max. output power: 300W DC (200W AC) Max. rotate speed: 6000rpm(DC) Shaft height: 75mm Dimension: 240*180(190)*140mm Weight: 8kg |

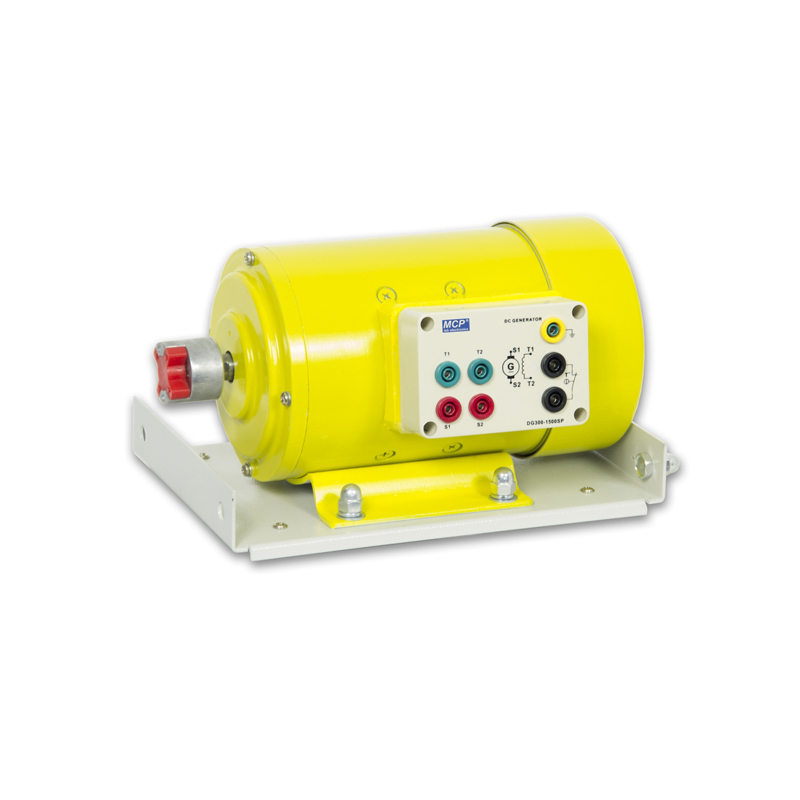

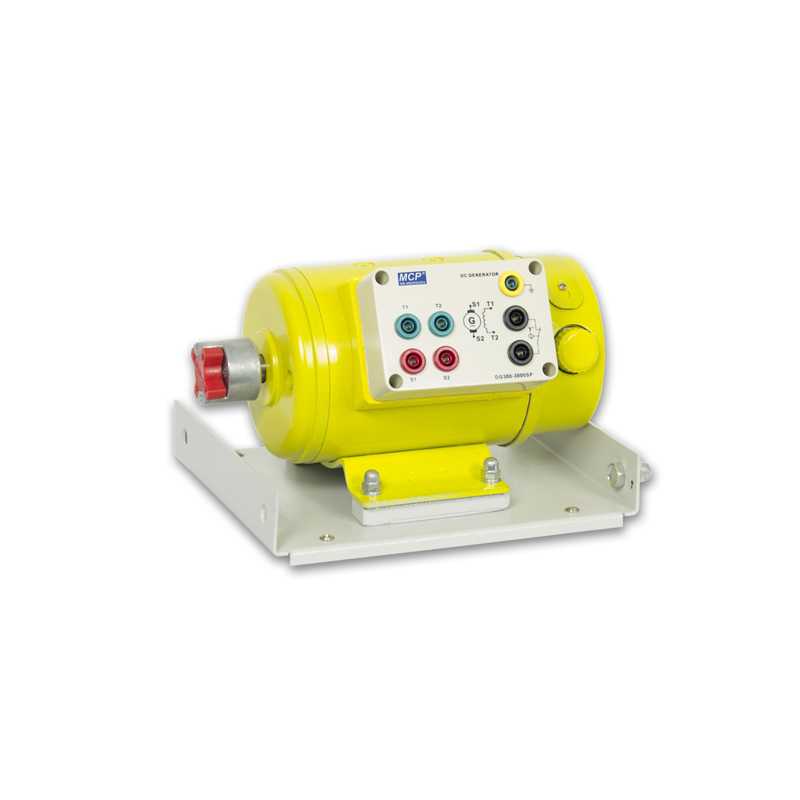

DG300-1500SP DC generator
Excitation votlage: 0~220VDC Excitation current: 0.14A Max. output voltage: 220VDC Max. output power: 250W Max. rotate speed: 1500rpm Shaft height: 75mm Dimension: 280*180(200)*150mm Weight: 13.5kg |
|
|
DG300-3000SP DC generator
Excitation votlage: 0~220VDC Excitation current: 0.14A Max. output voltage: 220VDC Max. output power: 250W Max. rotate speed: 3000rpm Shaft height: 75mm Dimension: 240*180(190)*140mm Weight: 8.5kg |
TM300-1500SR Three-phase slip-ring asychronous motor
Votlage: 230V/400V Current: 1.3A Frequency: 50Hz Output power: 300W Rotate speed: 1250rpm Shaft height: 80mm Dimension: 300*180*180mm Weight: 8kg |
|
|
TM300-1500S Three-phase synchronous motor/generator
Votlage: 230V/400V Current: 2.3A Frequency: 50Hz Rotor voltage: 24VDC Rotor current: 2.6ADC Output power: 200W Rotate speed: 1500rpm Shaft height: 80mm Dimension: 300*180*180mm Weight: 9kg |
