TSP SERIES MOTOR TORQUE MEASURING SYSTEM

TSP SERIES MOTOR TORQUE MEASURING SYSTEM


Details

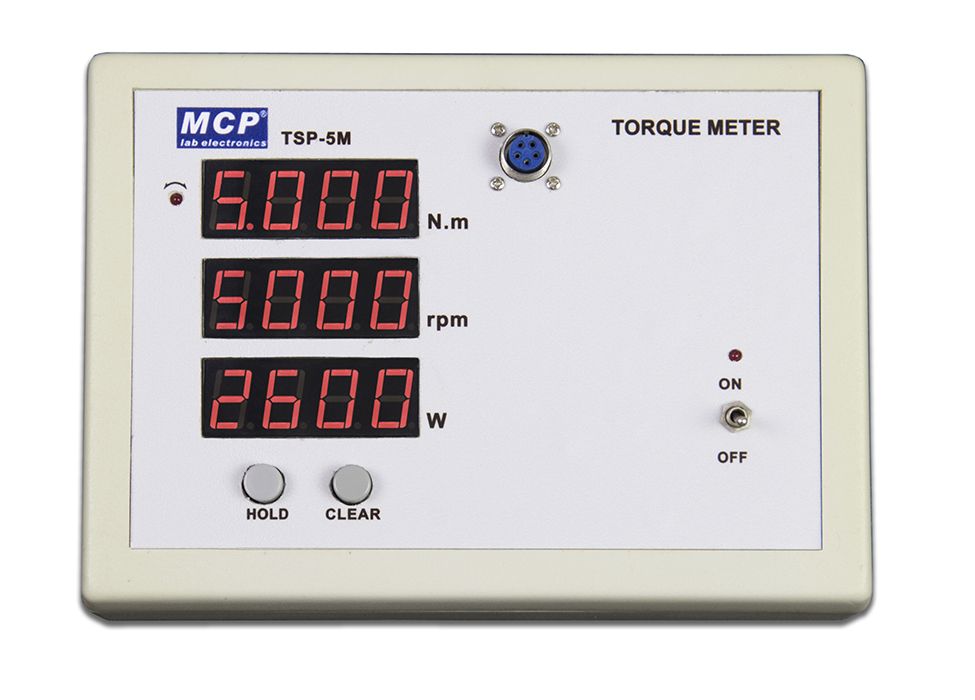

TSP-M SERIES 3 IN 1 TORQUE METER

The torque meter is combined with the dynamic torque sensor for torque,speed and power display


Technical DataTSP-5MTSP-10MTSP-15MTSP-30M
Torque measuring range0~±5.00Nm0~±10.00Nm0~±15.00Nm0~±30.00Nm
Rotate speed measuring range0~9999rpm0~9999rpm0~9999rpm0~9999rpm
Power display range0~5235W0~9999W0~9999W0~9999W
Output voltage24VDC24VDC±15VDC±15VDC
Max.torque5Nm10Nm15Nm30Nm
Adaptive sensorTSP-5STSP-10STSP-15STSP-30S
Dimension170 × 135 × 70 mm

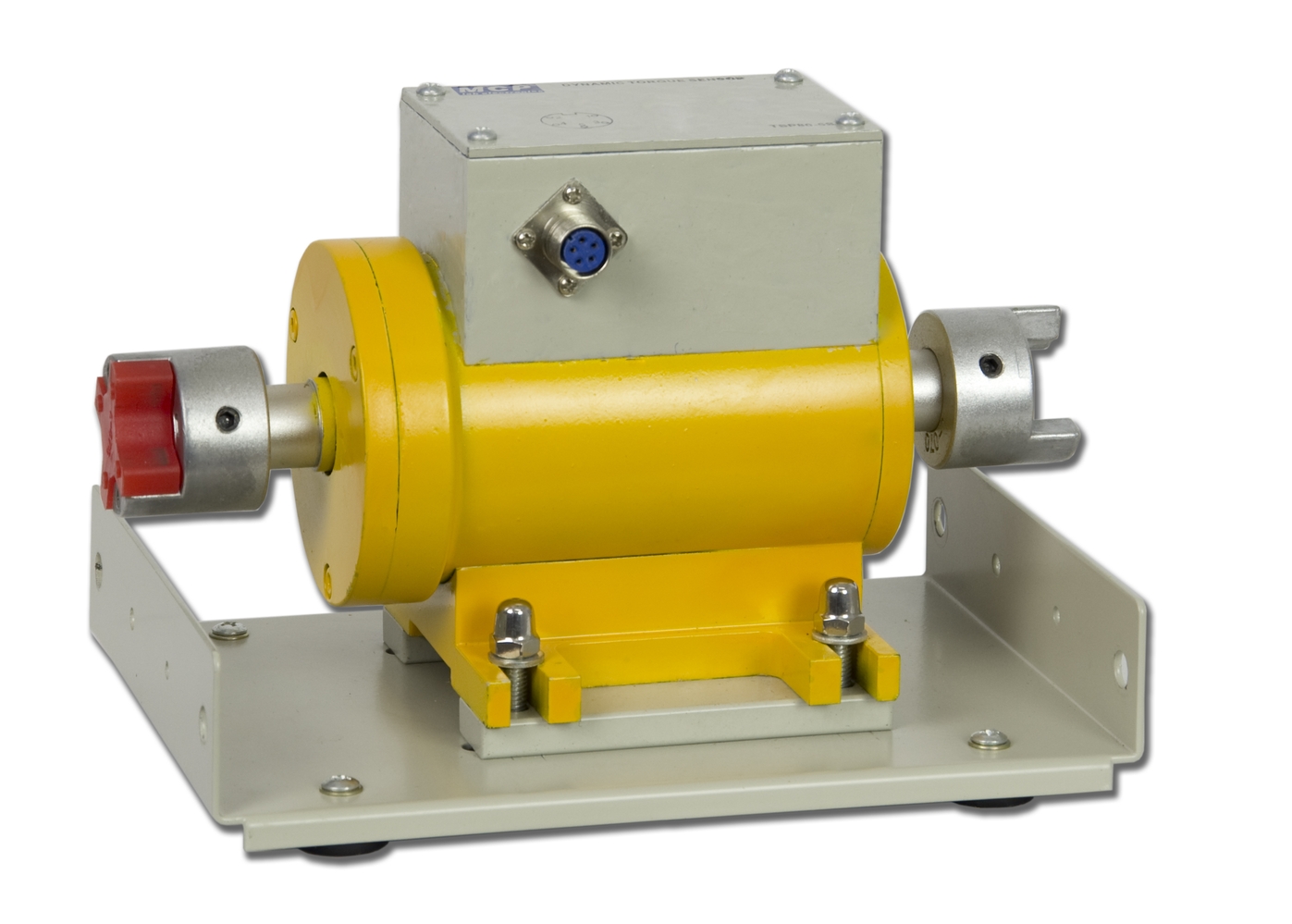

TSP-S SERIES DYNAMIC TORQUE SENSOR


Technical DataTSP-5STSP-10STSP-15STSP-30S
Working voltage   24VDC±15VDC
Max.torque5Nm10Nm15Nm30Nm
Shaft heigh63mm75mm80mm95mm
Dimension165 × 140 × 145 mm165 × 180 × 157 mm215 × 180 × 162 mm215 × 180 × 177 mm
