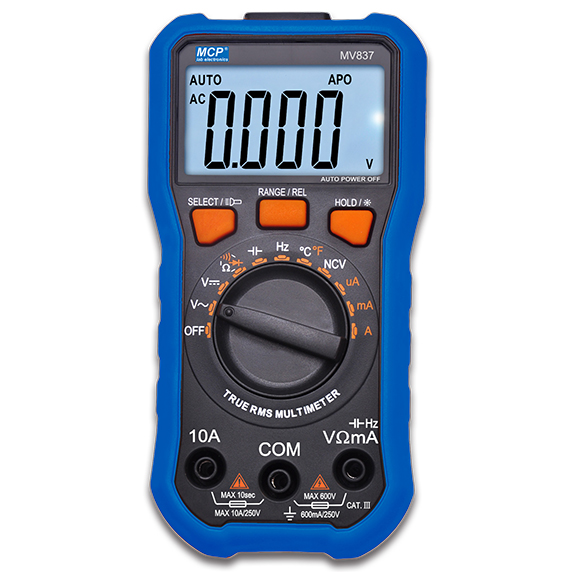

MV837
DIGITAL PROTABLE MULTIMETER
Features
. Auto Range, true RMS,Non-contact voltage detect (NCV) function
. Lighting function,Backlight display;Diode test
. Strong antimagnetic and anti-interferential performance, full function protection
. Auto power off when there is no measurement in 15 minutes
. Unit symbol display, easy to read,data hold
. Large LCD display makes reading clear
. New type holster, streamlined design, comfortable handle
Technical data | MV837 |
Basic function | Range | Basic Accuracy |
DCV |
600mV / 6V / 60V / 600V | ±(0.5%+4) |
ACV | 6V / 60V / 60V / 600V | ±(0.8%+6) |
DCA | 600uA / 6000uA / 60mA / 600mA / 6A / 10A | ±(1.0%+5) |
ACA | 600uA / 6000uA / 60mA / 600mA / 6A / 10A | ±(1.5%+5) |
Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ | ±(0.8%+1) |
Capacitance | 60nF / 600nF / 6uF / 60uF / 600uF / 6mF | ±(2.5%+8) |
Fequency | 10Hz / 100Hz / 1kHz / 10kHz / 100kHz | ±(0.5%+4) |
Temperature |
-40℃~1000℃ |
±(1.0%+5) |
0℉~1832℉ | ±(1.0%+5) |
Special function |
TRMS | √ |
NCV | √ |
Data hold | √ |
| Function protection | √ |
Torch function | √ |
| Backlight display | √ |
Duty cycle | √ |
Diode test
| 0V~2V, it displays “OL” if over 2V
|
Continuity alarm | Less than 50Ω, it displays “OL” if over 610Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes
|
General characteristic |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method |
Manual or Auto range |
Max. display | 6000 |
LCD size | 61x28mm |
Battery | 3V AAA×2 |
Power consumption | Quiescent current about 2mA |
Meter weight | 195g（including battery） |
Meter size | 140×72×37mm |
Standard accessory |
Test leads, battery, manual, TP01 temperature probe |
