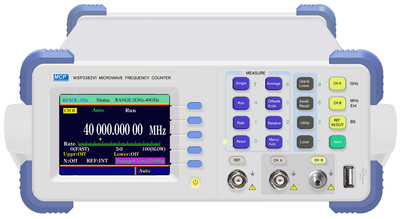

WSP3382
MICRO WAVE FREQUENCY COUNTER
Features
.Measure frequency up to 40GHz
.Dynamic and wide measure range
.High accuracy and high performance
.Advanced design, compact and plastic die-casting
.Reliability MTBF>8000h
.3.5 inch QVGA color LCD and soft keys
.Automatic and manual frequency measurement
.USB interface and GPIB optional
| Technical Data |
|
| CH A |
| 1MΩ impedance |
| Measure frequency range | 10Hz~80MHz |
| Resolution | 1Hz, 10Hz, 100Hz, 1kHz, 10kHz, selectable and 9 digits/s |
| Input sensitivity | 30mVram |
| Max. input level | 1Vrms (+13dBm) |
| Damage level | 3Vram(+23dBm) |
| 50Ω impedance |
| Measure frequency range | 60MHz~3GHz |
| Resolution | 1Hz, 10Hz, 100Hz, 1kHz, 10kHz, selectable and 9 digits/s |
| Input sensitivity | 25mVram (-20dBm) |
| Max. input level | 1Vrms (+13dBm) |
| Damage level | 3Vram(+23dBm) |
| CH B |
| Measure frequency range | 2GHz~9GHz (WSP3382 I) 2GHz~12.4GHz (WSP3382 II) 2GHz~18GHz (WSP3382 III)
2GHz~20GHz (WSP3382 IV)
2GHz~22GHz (WSP3382 V)
2GHz~26.5GHz (WSP3382 VI)
2GHz~36GHz (WSP3382 VII)
2GHz~40GHz (WSP3382 VIII)
|
Input sensitivity
| ≤-25dBm (2GHz~12.4GHz) ≤-20dBm (12.4GHz~18GHz) ≤-15dBm (18GHz~26.5GHz) ≤-10dBm (26.5GHz~40GHz) |
Input impedance
| 50Ω |
Max. input level
| +7dBm |
Damage level
| +20dBm |
Input SWR
| ≤3.5(2GHz~40GHz) typical |
Time base
| 10MHz |
Frequency stability
| 1×10-8/day |
| Power supply | 100~240VAC 47~ 63Hz |
| Dimensions(W×H×D) | 265×104×375mm |
| Weight | 3kg |
