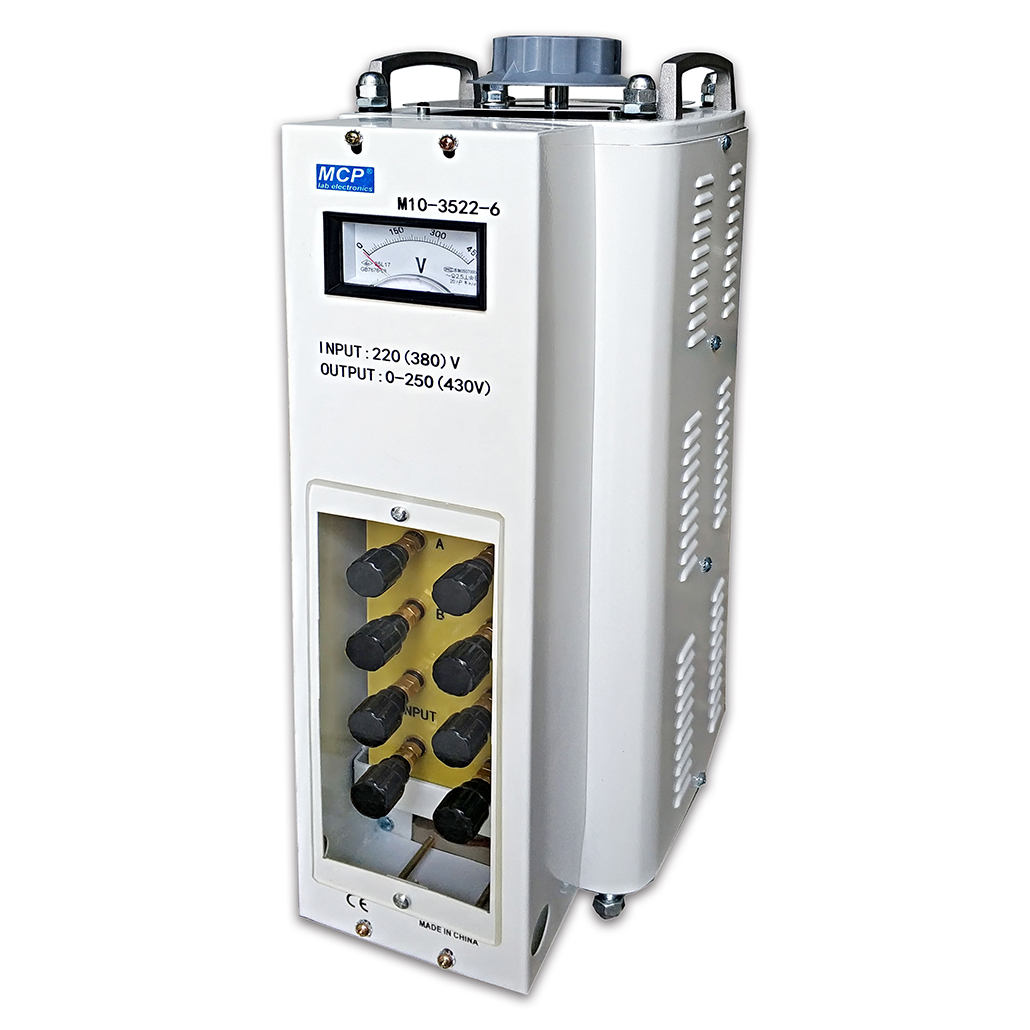

M10-3500 SERIES

M10-3500 SERIES


Details

M10-500 SERIES
THREE PHASE VARIAC


Features

.Three phase input and output

.High efficiency and convenient use

.Digital meter optional


Specifications

ModelInput VoltageOutput VoltageMax Power

Max
Current

Dimensions (WxHxD)

Weight (kg)

M10-3522-03220(380)VAC0~250(430)VAC3000(3X1000)VA3X4A207×182×430mm19
M10-3522-06220(380)VAC0~250(430)VAC6000(3X2000)VA3X8A207×182×430mm26
M10-3522-09220(380)VAC0~250(430)VAC9000(3X3000)VA3X12A235×210×550mm33
M10-3522-15220(380)VAC0~250(430)VAC15000(3X5000)VA3X20A390×355×605mm70
M10-3522-20220(380)VAC0~250(430)VAC20000(3X6600)VA3X25A390×355×605mm90
M10-3522-30220(380)VAC0~250(430)VAC30000(3X10000)VA3X40A410×450×900mm150
M10-3511-03100(175)VAC0~130(225)VAC3000(3X1000)VA3X8A207×182×550mm26
M10-3511-06100(175)VAC0~130(225)VAC6000(3X2000)VA3X16A235×210×550mm33
M10-3511-09100(175)VAC0~130(225)VAC9000(3X3000)VA3X24A280×245×720mm50
M10-3511-15100(175)VAC0~130(225)VAC15000(3X5000)VA3X40A280×245×720mm90
