M31-1100 SERIES

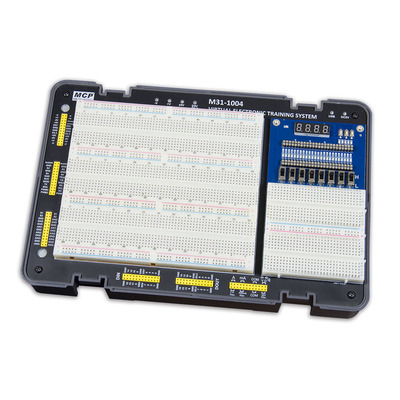

VIRTUAL ELECTRONIC TRAINING SYSTEM
Features
.Max. 30MHz bandwidth, 100MSPS@4CH, sampling rate (Oscilloscope)
.Max. 25MHz sine wave output (Signal generator)
.Arbitrary waveform output
.16 channel digital input output
.Digital multimeter
.Office report, source data save
.USB2.0 interface, no external power source required,easy to use
.Operating system: Windows 7 or above
.Easy to carry
| Technical Data |
| M31-1104 |
| Oscilloscope | Channels | 4 |
| Sampling rate | 100MSPS@4CH, 200MSPS@2CH |
| Bandwidth | 30MHz |
| ADC resolution | 8bit |
| Time base range | 10ns~10s |
Vertical resolution | 10mV/div~5V/div |
| Input coupling | AC/DC |
| Max. input voltage | ±25V
|
| Vertical resolution(Accuracy) | 10mV/div ~ 5V/div (±1%) |
| Trigger mode | Auto, normal and single |
Trigger source: | CH1~CH4 |
| Trigger level adjustable | Yes |
| Math | ＋, －, ×, ÷, FFT |
Signal generator | Channels | 4 (2 Main channel, 2 secondary channel) |
| DAC resolution | 12bit
|
| Max. frequency (sine) | 25MHz (Main channel), 100KHz (Secondary channel) |
| Wave form | Sine, Triangle, Square, DC, Arbitrary |
| Output range | ±0.5mV~±5V |
Spectrum analyzer | Channel | 1 |
| ADC resolution | 8bit |
| Bandwidth | 50MHz |
| Sampling rate | 100MSPS |
| Voltage range | ±25V |
| Auto measuring | Frequency, SNR, THD, V-Peak |
| Other measuring | Hanning, B-H, RMS, Peak Hold |
Logical analyzer | Channels | 16 |
| Max. Input voltage | 5V |
| Max. Sampling rate | 100MSPS |
| Max. Sampling depth | 1000 points / 500s |
Pulse generator | Channels | 16 |
| Refresh rage | 100MSPS |
| Output signal level | 3.3V, 5V |
| Inner/Ext. Trigger select | Yes |
Digital multimeter | Voltage range / Accuracy | 0.1mV~36V / 1% |
| Current range / Accuracy | 0.1uA~600uA / 1%, 0.1mA~400mA / 1%, 100mA~3A / 1% |
| Resistance range / Accuracy | 0.1Ω~40MΩ / 1% |
| Capacitor range / Accuracy | 0.1nF~4mF / 2%~5% |
| Power output | Output range | ±2.0V~±15V, fixed ±5V, fixed 3.3V |
| Rated current | ±500mA (±2.0V~±15V), 800mA (fixed+5V), -100mA (fixed-5V), 800mA (fixed 3.3V) |
| Protection | Shout cut / over current |
| Interface | USB 2.0 |
Power source | USB |
| Dimensions (W×H×D) | 290×40×195 mm |
| Weight | 1.5kg
|
