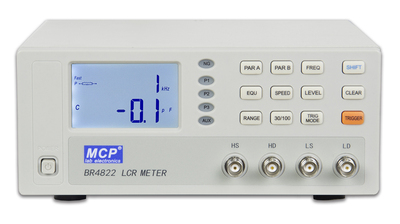

BR4822
Features
.Max. Testing frequency 10kHz
.Measuring parts type auto detect
.Serial and parallel connection
.Compact casing design
| Technical Data | BR4822 |
| Measuring range | L | 100Hz/120Hz
1kHz
10kHz | 0~1000H
0~100.00H
0~999.99H |
| C | 100Hz/120Hz
1kHz
10kHz | 0~20.000mF
0~999.99μF
0~100.00μF |
| R | N/A | 0~999.9Ω |
| Q | N/A | 0~9999 |
D
| N/A
| 0~9.999
|
| θ | N/A | -179.9°~179.9° |
| Measuring accuracy | 0.2% |
| Equivalent mode | Series, Parallel |
| Auto LCR function | Manual, Auto |
| Correction | Short, Open |
| Tolerance mode | 1%,5%,10%,20% |
| Output Impedance | 100Ω
|
Measuring signal level | 0.4Vp-p±10% (no load) |
| Measuring speed | 200ms |
Working temperature
and relative humidity
| 0℃~40℃, ≤85%RH |
| Power supply | 220V±10%, 50Hz±5% |
| Dimensions (W×H×D) | 215×88×232mm3 |
| Weight | 1.5kg
|
