TB1600

Feature

.The benches are suitbale for the use of training, developing, service,calibration and DIY

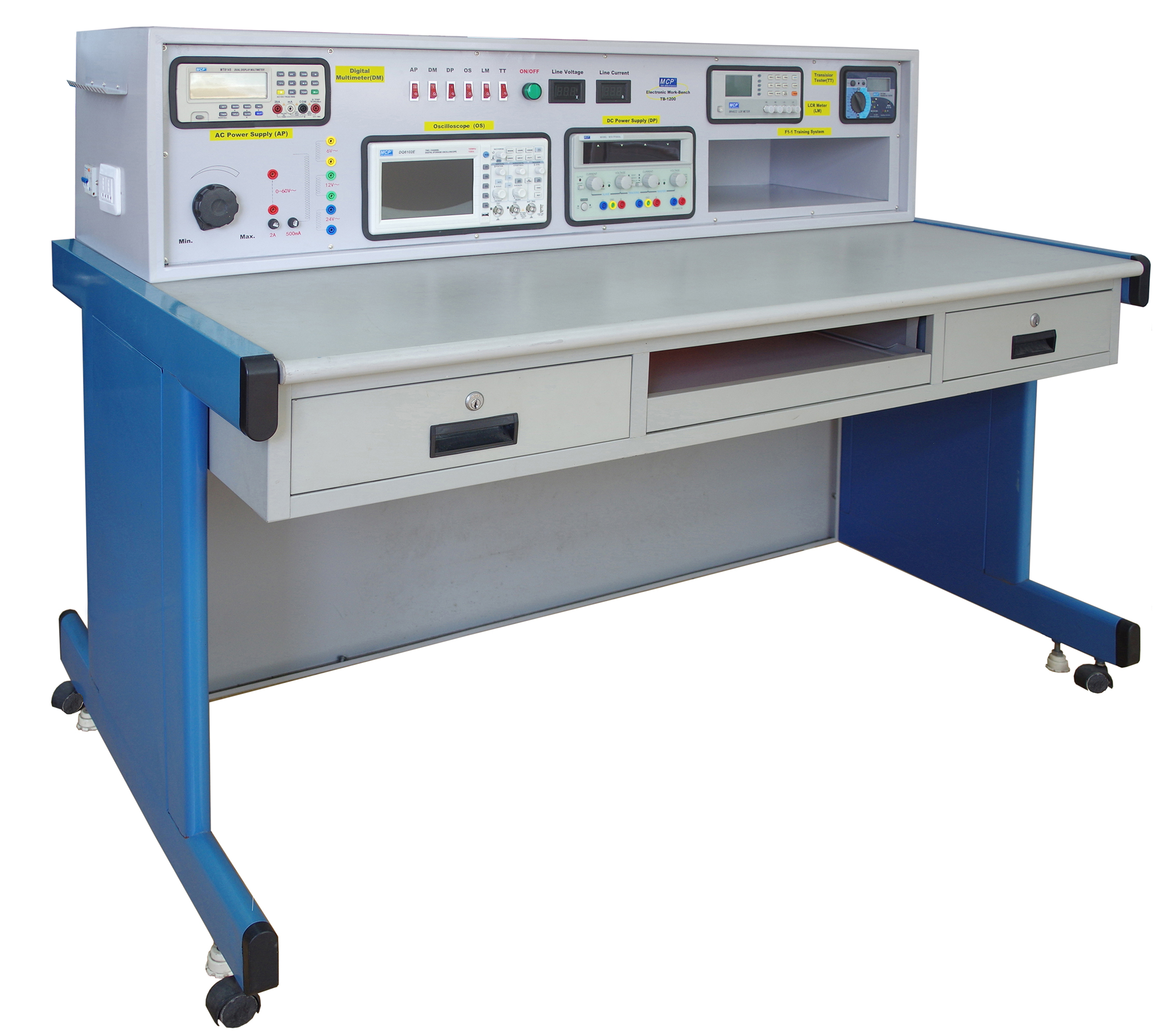

TB1600

Training bench + instrument housing

1. Training bench (TB1000)

2. Instrument housing

. Oscilloscope: DQ6102E  X 1

. DC power supply: M10-TP3003L  X 1

. Digital multimeter: MT8145  X 1

. LCR meter: BR4822  X 1

. Transistor tester: TST294  X 1

. AC power supply:

. Store house  X 1

. AC outlet  X 4

. Test leads holder: PTL2001  X 2

Brief technical data of installed instruments

2.1 Oscilloscope: DQ6102E

Bandwidth: 100MHz

Samling rate: 1GSa/s

Channels: 2

Vertical sensitivity: 1mV/div~20V/div

Horizontal range: 2nsdiv~50s/div

Trigger mode: Auto,Normal, Single

Math:  + ,- , x , /, FFT

2.2 DC power supply: M10-TP3003L

Output voltage: 0~30V × 2, 5V fixed

Output current: 0~3A × 2, Max. 3A

Output mode: independent, series, parallel

2.3 Digital multimeter: MT8145

DC voltage: 80mV, 800mV, 8V, 80V, 800V, 1000V

AC voltage: 80mV, 800mV, 8V, 80V, 750V

DC current: 80mA, 800mA, 8A, 20A

AC current: 80mA, 800mA, 8A, 20A

Resistance: 800Ω, 8kΩ, 80kΩ, 800kΩ, 8MΩ, 80MΩ

Capacitance: 1nF, 10nF, 100nF, 1μF, 10μF, 100μF

Frequency: 999099Hz~1000.0MHz

hFE:

2.4 LCR meter: BR4822

L: 0.01~9999H

C: 0.5pF~200mF

R: 0.1mΩ~19.99MΩ

Q: 0.01~999

D: 0.01%~999%

Test frequency: 100Hz, 1kHz, 7.8kHz

2.5 Transistor tester: TST294

VBR range: 0~1000V, 0~200V

VCE range: 0~6V

hEF: 0~200, 0~2000

ICEO: 0~2000uA

78 & 79 voltage regulator: 78XX  / 79XX

2.6 Store house

Inner dimension (WxHxD): 462 x 86 x 312mm
