SG1000 SERIES

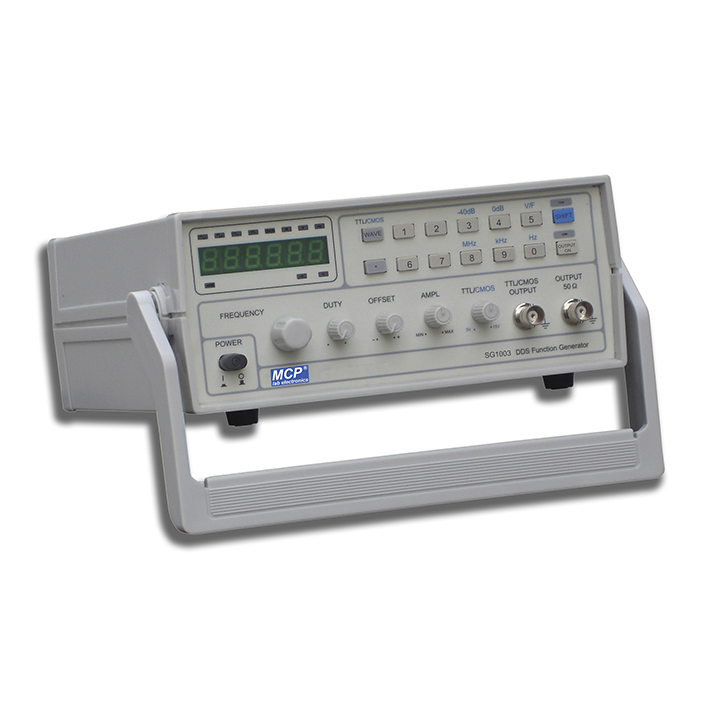

FUNCTION GENERATOR
Features
.DDS technology design, ultra-low power consumption
.Frequency range: 0.1Hz~3MHz(SG1003) 0.1Hz~5MHz(SG1005) 0.1Hz~8MHz(SG1008)
.High frequency accuracy:±5X10-6
.High frequency stability: ±1X10-6
.Max. frequency resolution: 100mHz
.Low distortion sine wave:<0.3%
.Through the keyboard input frequency set value .Voltage display
| Technical Data | SG1003/SG1005/SG1008 |
| Main output | Output frequency | 0.1Hz~3MHz(SG1003)
0.1Hz~5MHz(SG1005)
0.1Hz~8MHz(SG1008) |
| Output amplitude | 0.2~20Vp-p |
| Output wave form | sine, square, triangle |
| Amplitude accuracy | ±10%(1kHz, 20Vp-p) |
| Frequency accuracy | ±5x10-6 |
| Frequency resolution | 100mHz |
| Frequency stability | ±1x10-6 |
| Impedance | 50Ω ±10% |
| Attenuator | -40dB, 0dB |
| Display | 6 digits LED display |
| Output control | ON/OFF seletor |
| DC offset | ±10V |
| Sine wave | Distortion factor | ≤0.3%(20Hz~20kHz) |
| Square wave | Rise or fall time | ≤25ns |
| Duty cycle | 10%~90% |
| Square wave | Rise or fall time | ≤25ns |
| Duty cycle | 10%~90% |
| Triangle wave | Linear | ≥98% 100mHz~100kHz
≥95% 100kHz~1MHz |
| TTL/COMS output | TTL level | ≥3Vp-p |
| Output capability | 20TTL load |
| CMOS level | 3~13.5Vp-p |
| Power supply | 110~127VAC±10%/220~240VAC±10%,50Hz±2Hz/60Hz±2Hz |
| Dimension (W×H×D) | 300×110×265mm |
| Weight | 1.5kg
|
