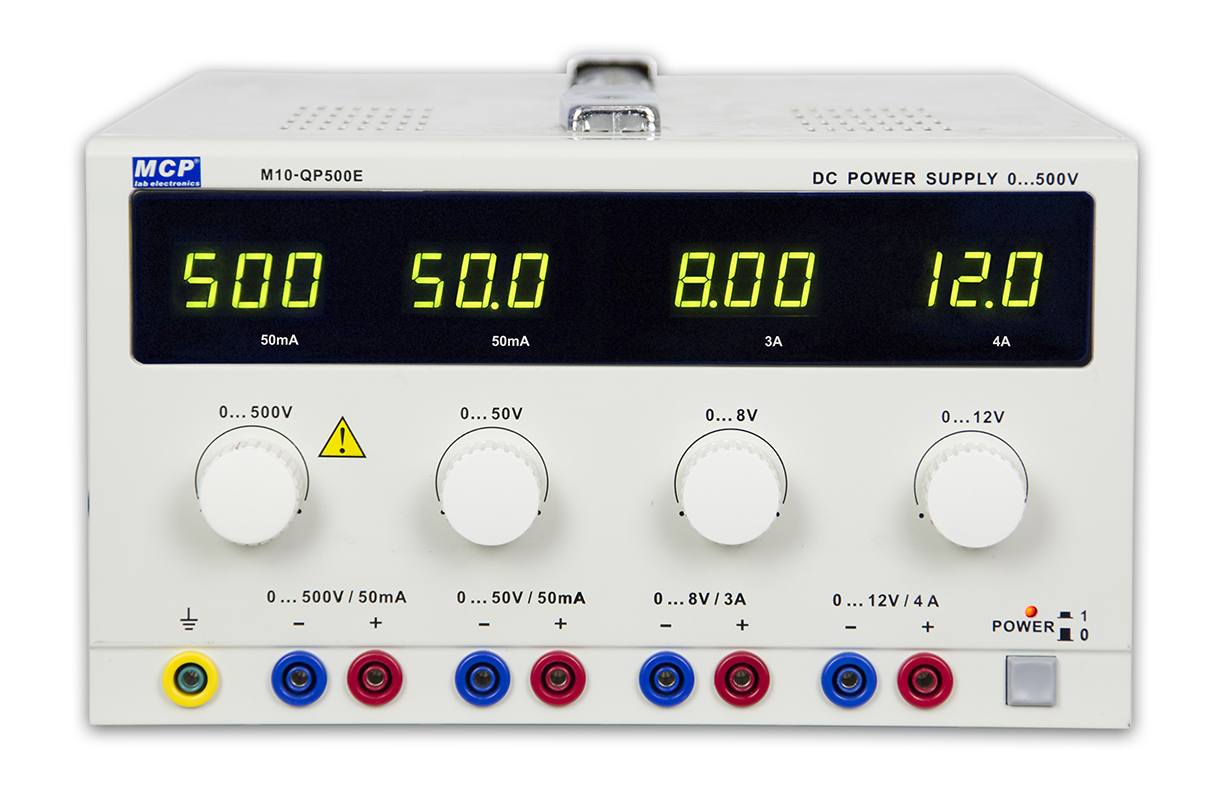

M10-QP500E
MULTI OUTPUT ADJUSTABLE DC POWER SUPPLY

Features

. High voltage output (500V)

. Quad independent DC outputs
. Constant voltage and constant current
. Low ripple and noise

Specifications

1.1    Input voltage: 220~240VAC±10%

1.2    Output voltage: CH1 0~500V / CH2 0~50V / CH3 0~8V / CH4 0~12V

1.3    Output current: CH1 Max. 50mA / CH2 Max. 50mA / CH3 Max. 3A / CH4 Max. 4A

1.4    Line regulation: CH1 1×10^-4+100mV / CH2 1×10^-3+10mV / CH3 1×10^-3+10mV / CH4 1×10^-3+10mV

1.5    Load regulation: CH1 1×10^-4+100mV / CH2 1×10^-3+10mV / CH3 1×10^-3+30mV / CH4 1×10^-3+30mV

1.6    Ripple and noise: CH1 20mV rms   /   CH2&CH3&CH4 5mV

1.7    Protection: current-limit

1.8    Display accuracy: ±(1%Rdg+2digits)

1.9    Dimensions(W×H×D): 260×160×340mm

1.10   Weight: 5kg
