F8 SERIES
EXPERIMENTS BOX
|
|
Features .Plastic box for double insulation
.Easy and safety operation for students
.Novel design and various types for you
|

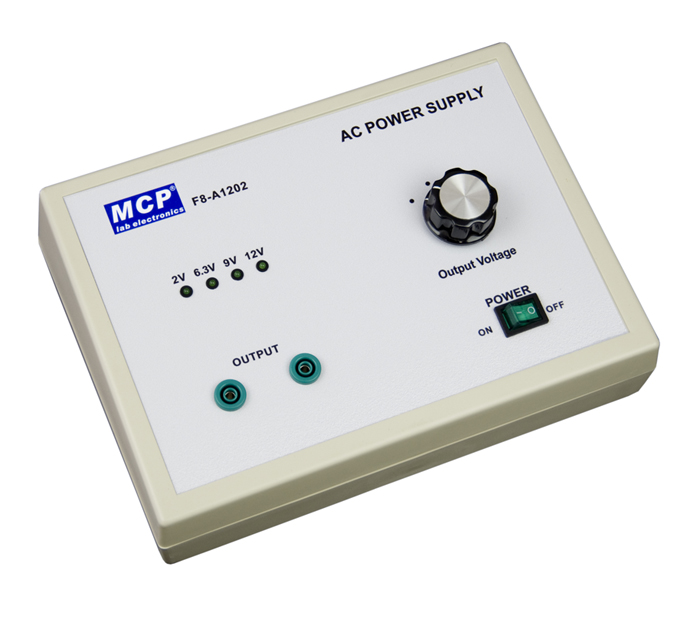

AC power supply F8-A1202
Specifications
.Output Voltage: 2V, 6.3V, 9V, 12V
.Output Current: 2A
.Protection: output short (buzzer), over heat
.Input Voltage: 220~240VAC ±10%
.Dimensions: 240(W)X90(H)X170(D)mm
.Weight: 2kg
|
F8-A1202 |

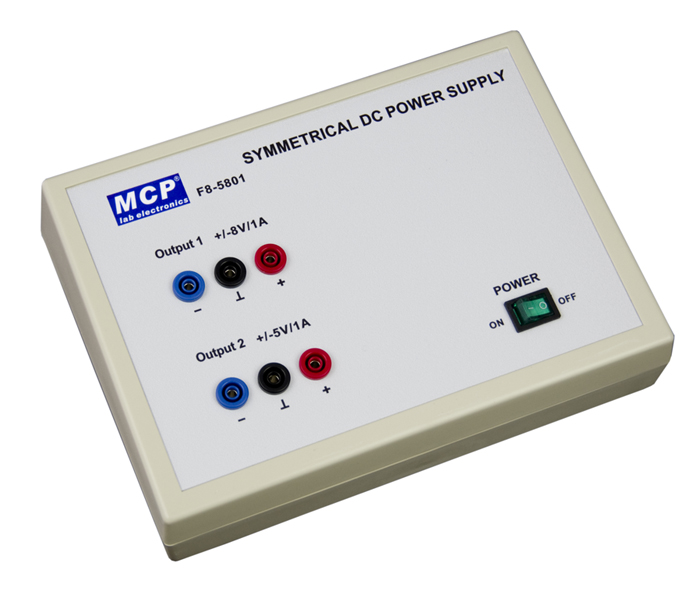

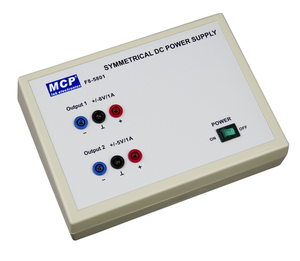

Symmetric DC power supply F8-5801
Specifications .Output Voltage: +5V, -5V, +8V, -8V
.Output Current: 1A
.Load Regulation: 50mV
.Line Regulation: 50mV
.Ripple: 10mV
.Protection: over current, over heat
.Input Voltage: 220~240VAC ±10%
.Dimensions: 240(W)X90(H)X170(D)mm
.Weight: 2.5kg
|
F8-5801 |

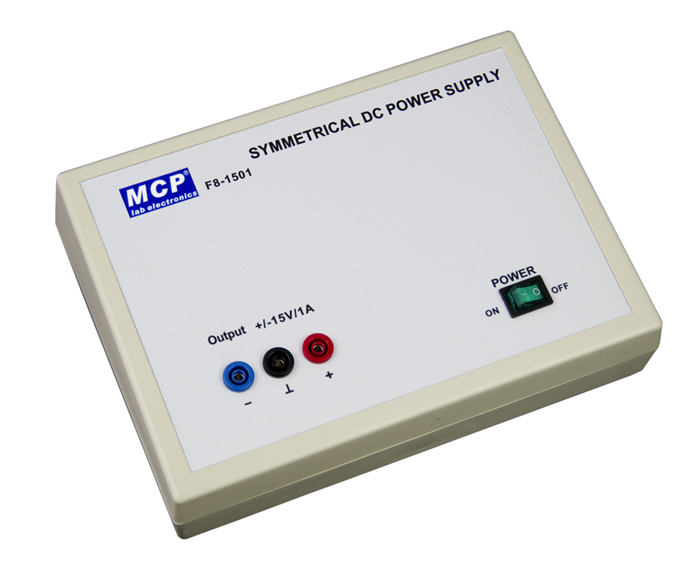

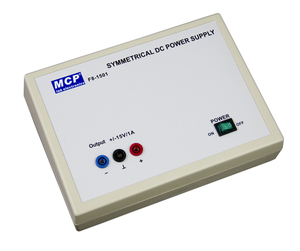

Symmetric DC power supply F8-1501
Specifications .Output Voltage: ±15V
.Output Current: 1A
.Load Regulation: 20mV
.Line Regulation: 20mV
.Ripple: 10mV
.Input Voltage: 220~240VAC ±10%
.Dimensions: 240(W)X90(H)X170(D)mm
.Weight: 2.5kg
|
F8-1501 |

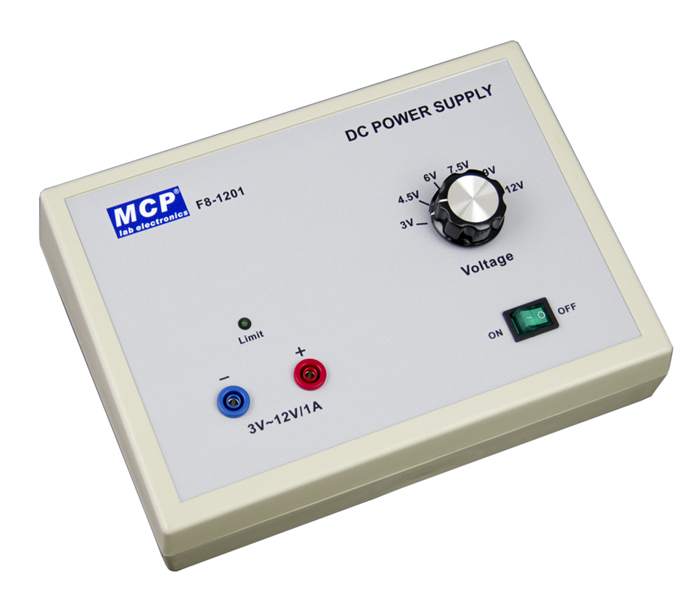

DC power supply F8-1201 Specifications .Output Voltage: 3V, 4.5V, 6V, 7.5V, 9V, 12V
.Output Current: 1A
.Load Regulation: 10mV
.Line Regulation: 10mV
.Ripple: 1mV
.Input Voltage: 220~240VAC ±10%
.Dimensions: 240(W)X90(H)X170(D)mm
.Weight: 2kg
|
F8-1201 |

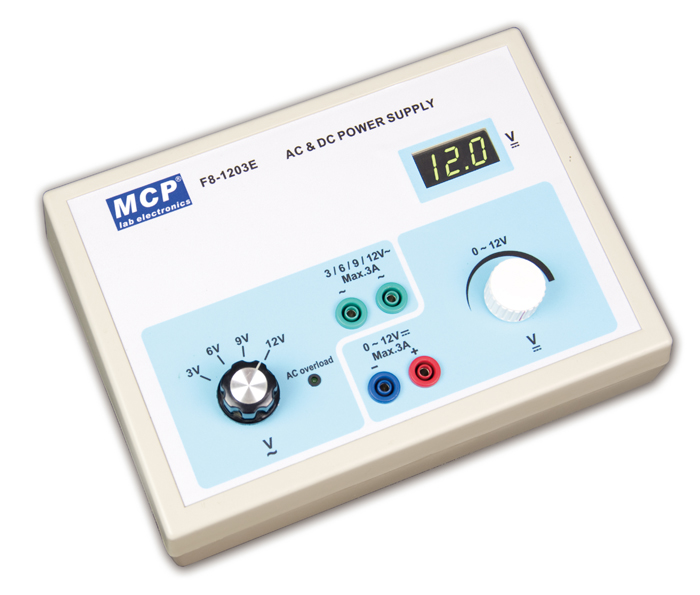

F8-1203E AC & DC breadboard power supply
Specifications
.DC output voltage: 0~12V .DC output current: 3A .Load regulation: 10mV .Line regulation:10mV .Ripple: 1mV .3 digits display for DC voltage
.AC output voltage: 3V, 6V, 9V, 12V .AC output current: 3A .AC overload protection
.Input voltage: 110~127VAC±10% 60Hz or 220~240VAC±10% 50Hz .Weight: 2.5kg |
F8-1203E |

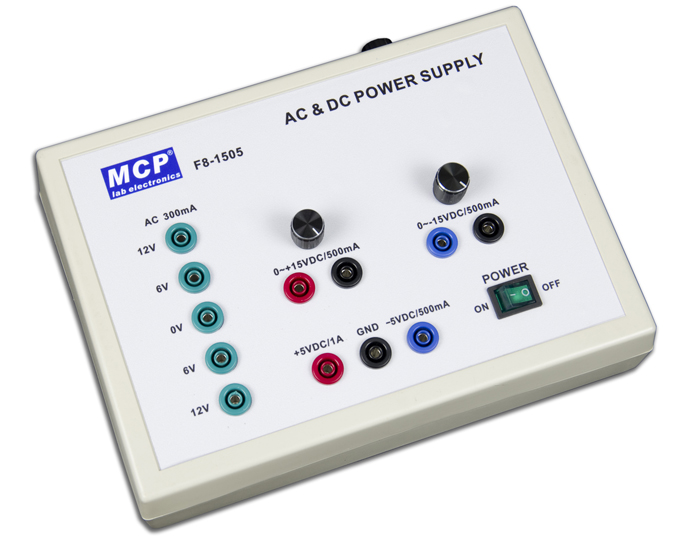

F8-1505 AC & DC breadboard power supply
Specifications .DC output: 0~+15V/500mA, 0~-15V/500mA, +5V/1A, -5V/500mA
.AC output: 12V-6V-0-6V-12V, 300mA
.Load regulation: 200mV
.Line regulation: 200mV
.Ripple: 20mV
.Input voltage: 220~240VAC ±10%
.Weight: 3kg |
F8-1505
|
