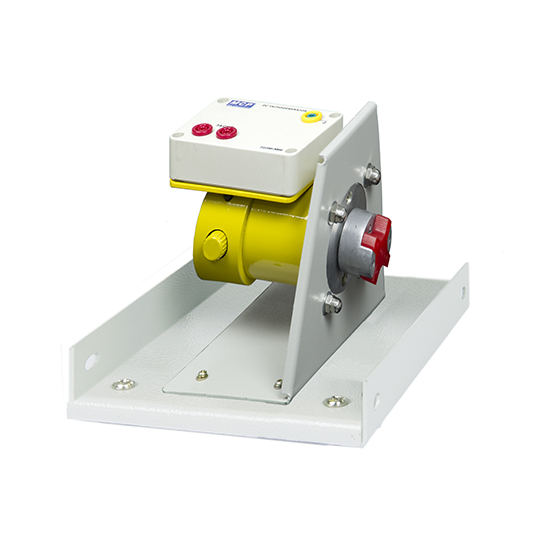

TG SERIES
DC TACHOGENERATOR
This tachogenerator delivers a continuous DC voltage which is proportional to the rotating speed of the motor
| Technical Data | TG120 | TG300 | TG600 | TG1000 |
| Output voltage | 0~160VDC |
| Max. current | 200mA |
| Power | 32W |
| Max. speed | 6000rpm |
| Shaft heigh | 63mm | 75mm | 80mm | 95mm |
| Suitable motor | 150W | 300W | 600W | 1000W |
| Dimension | 170 × 130 × 165 mm | 170 × 180 × 177 mm | 170 × 180 × 182 mm | 170 × 180 × 197 mm |

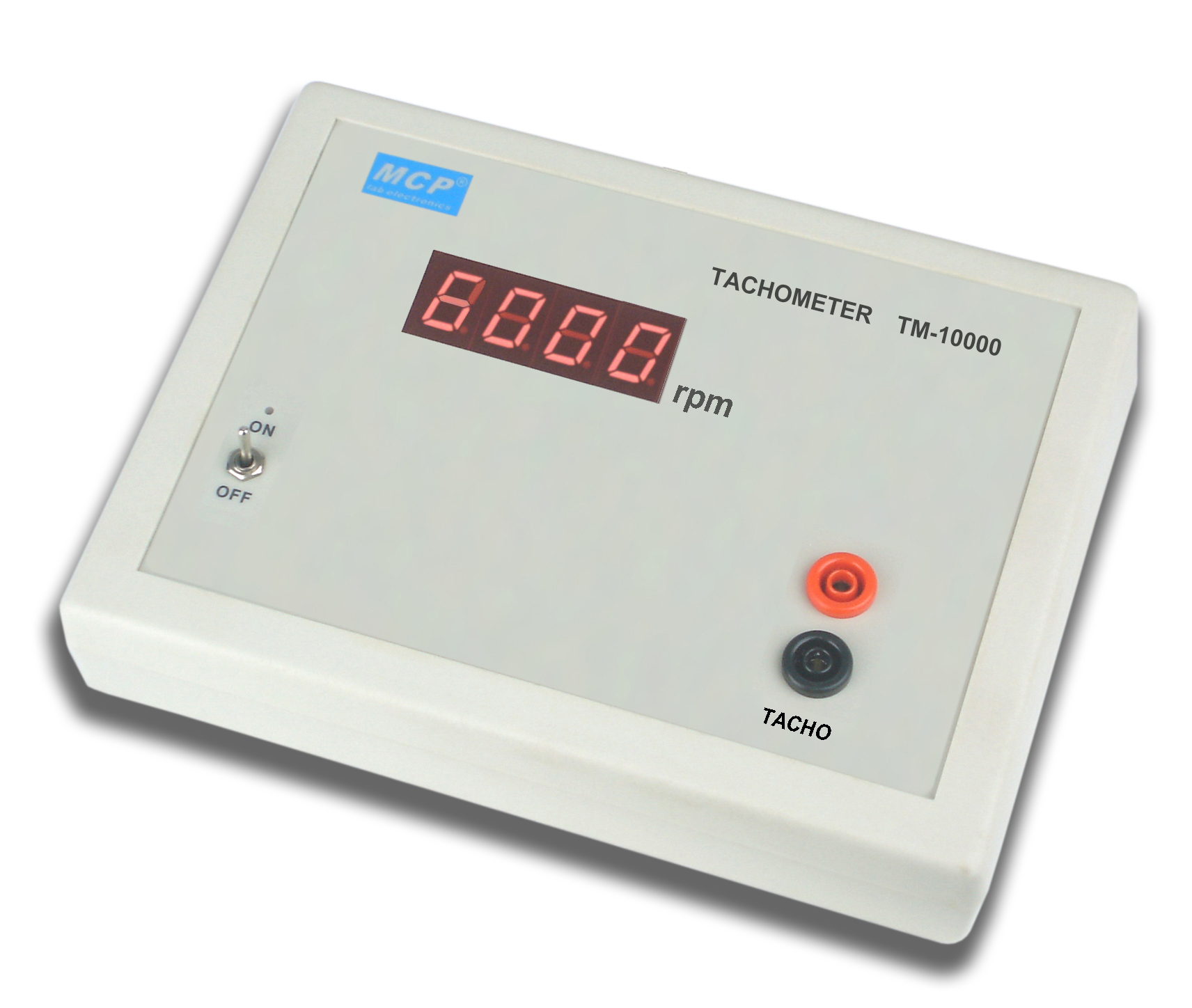

TM-10000
TACHOMETER

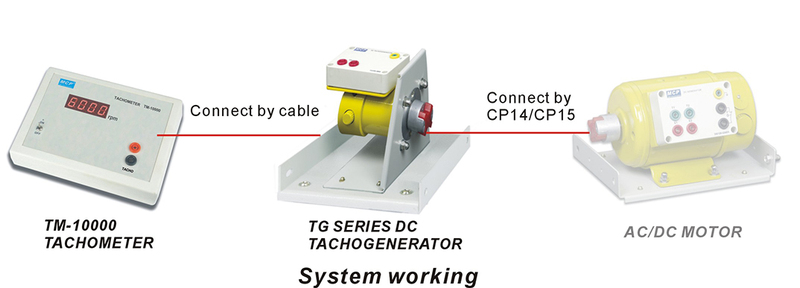

The tachometer displays in rpm the rotating speed of the motors by converting the voltage of the DC tachogenerator.
Inputvoltage: 0~160VDC
Diplay: Max. 6000rpm
Dimension: 170x135x70mm
