Specifications .AC thermal-magnetic circuit breaker: 4P/16A/400V/30mA
.Three-phase AC output: 400V/10A+N and PE
.AC outlet: 230V/10A (2 universal single-phase sockets)
.Power supply: 3×400VAC/N/PE/50Hz (or other voltages upon request)
.Dimensions(W×H×D): 400×170×200mm
.Weight: 5kg

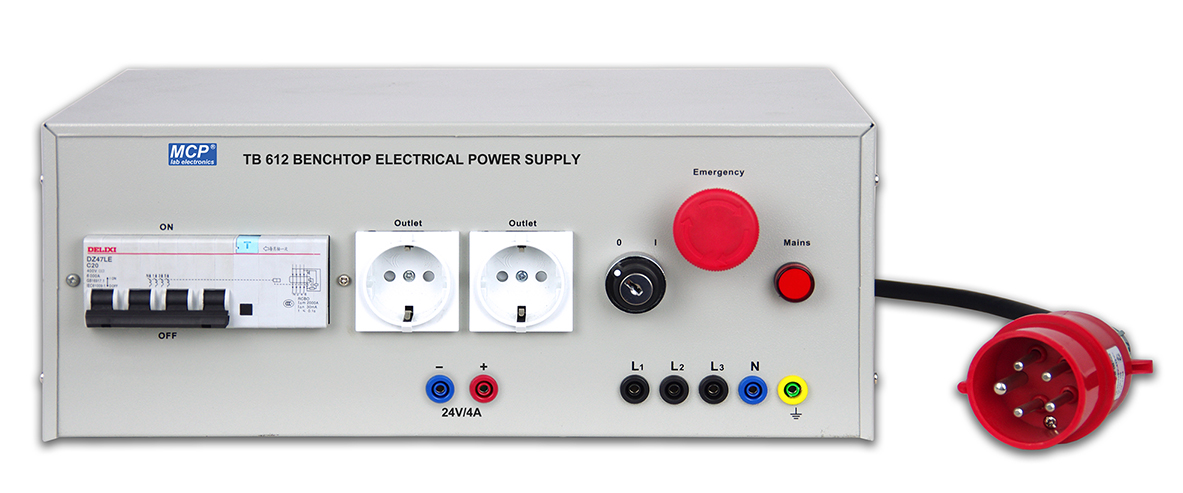

TB612 Features .General control with key-locked switch .Protected with high sensitivity T.M.C.B. and emergency push button .4mm safety socket for connection .Power supply cable with three-phase plug
Specifications .AC thermal-magnetic circuit breaker: 4P/16A/400V/30mA .AC output: 1. Three-phase AC output: 400V/10A+N and PE 2. AC outlet: 230V/10A (2 universal single-phase sockets) .DC output: 24V/4A .Power supply: 3×400VAC/N/PE/50Hz (or other voltages upon request) .Dimensions(W×H×D): 400×160×200mm .Weight: 6kg

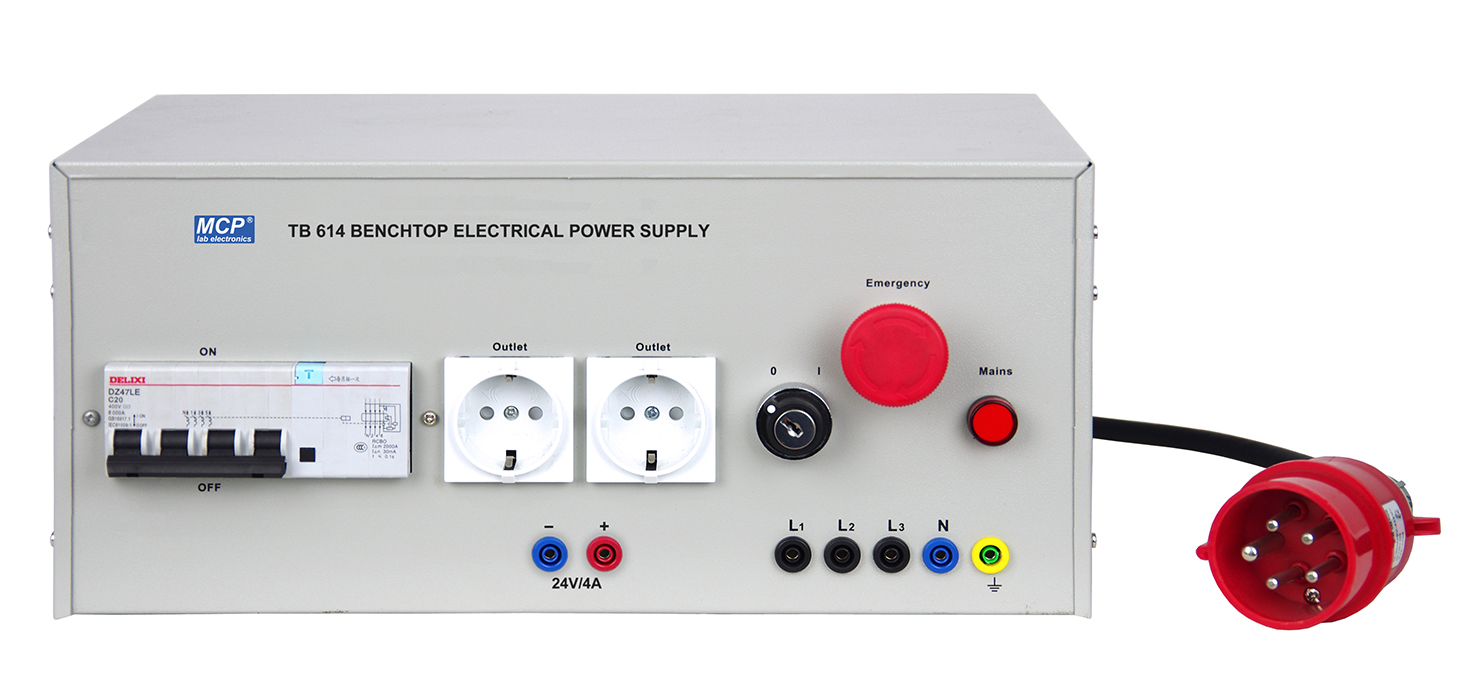

TB614 Features .Output separate, isolative from mains .General control with key-locked switch .Protected with high sensitivity T.M.C.B. and emergency push button .4mm safety socket for connection .Power supply cable with three-phase plug
Specifications .AC thermal-magnetic circuit breaker: 4P/16A/400V/30mA .AC output: 1. Three-phase AC output: 400V/3A+N and PE 2. AC outlet: 230V/4A (2 universal single-phase sockets) .DC output: 24V/4A .Power supply: 3×400VAC/N/PE/50Hz (or other voltages upon request) .Dimensions(W×H×D): 450×200×280mm .Weight: 16kg

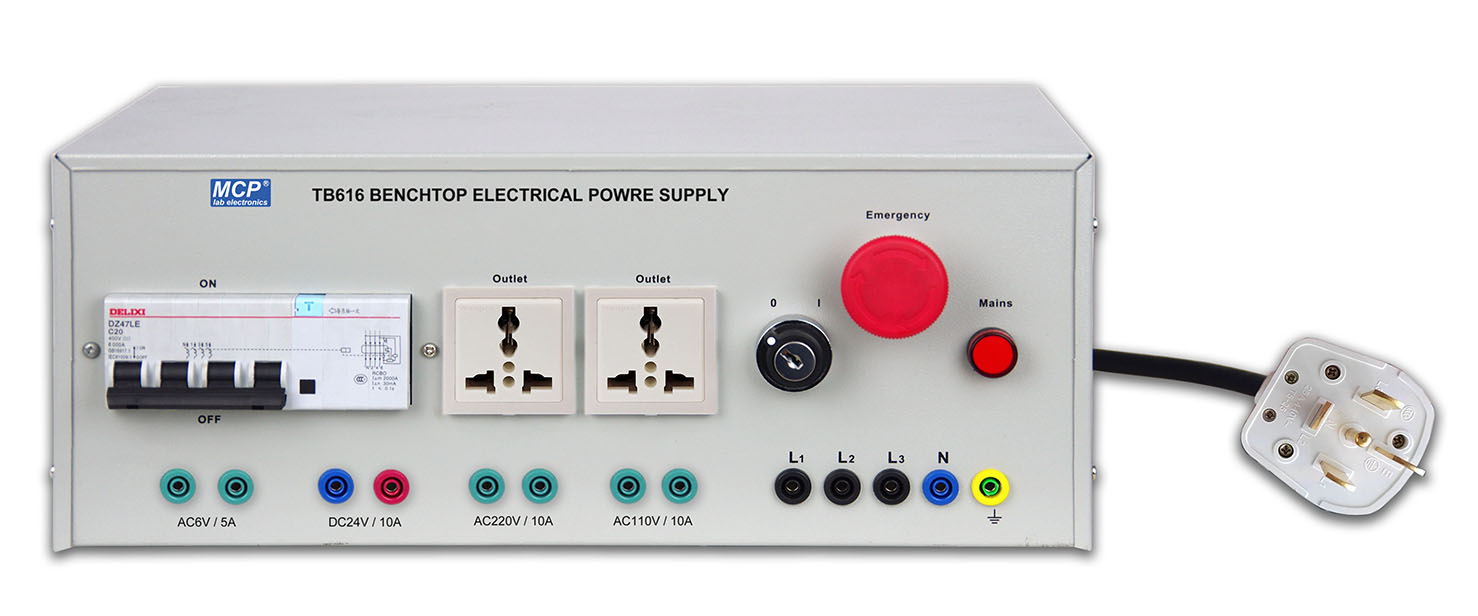

TB616 Features .General control with key-locked switch .Protected with high sensitivity T.M.C.B. and emergency push button .4mm safety socket for connection .Power supply cable with three-phase plug
Specifications .AC thermal-magnetic circuit breaker: 4P/16A/400V/30mA .AC output: 1. Three-phase AC output: 400V/10A+N and PE 2. AC outlet: 230V/10A (2 universal single-phase sockets) 3. AC output:110V/10A 4. AC output: 6V/5A .DC output: 24V/10A .Power supply: 3×400VAC/N/PE/50Hz (or other voltages upon request) .Dimensions(W×H×D): 400×160×200mm .Weight: 9kg
|
