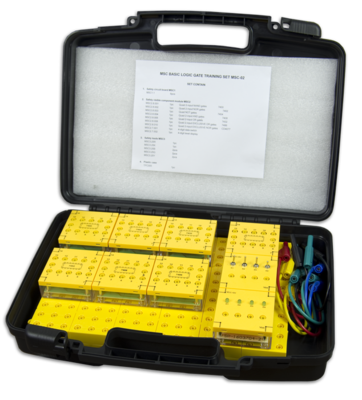

MSC-2 BASIC LOGIC GATE TRAINING SET
| SET CONTAIN: |
1. Safety circuit board MSC1
MSC1.1 6pcs
2. Safety visible component module MSC2
MSC2.8.001 1pc Quad 2-input NAND gates 7400
MSC2.8.002 1pc Quad 2-input NOR gates 7402
MSC2.8.003 1pc Quad NOT gates 7404
MSC2.8.004 1pc Quad AND gates 7408
MSC2.8.005 1pc Quad OR gates 7432
MSC2.8.008 1pc Quad 2-input EXCLUSIVE OR gates 7486
MSC2.8.010 1pc Quad EXCLUSIVE NOR gates gates CD4077
MSC2.7.001 1pc 4-digit data switch
MSC2.7.002 1pc 4-digit level display
3. Safety leads MSC3
MSC3.25R
MSC3.25K
MSC3.25B
MSC3.25G
MSC3.25Y
4. Plastic case
TPC005 1pc
|
| EXPERIMENTS CONTENT |
NOT LOGIC GATE
|
AND LOGIC GATE
|
NAND LOGIC GATE
|
OR LOGIC GATE
|
NOR LOGIC GATE
|
XOR LOGIC GATE
|
XNOR LOGIC GATE
|
|
