MSC MODULAR SAFETY CIRCUIT SYSTEM

MSC MODULAR SAFETY CIRCUIT SYSTEM


Details

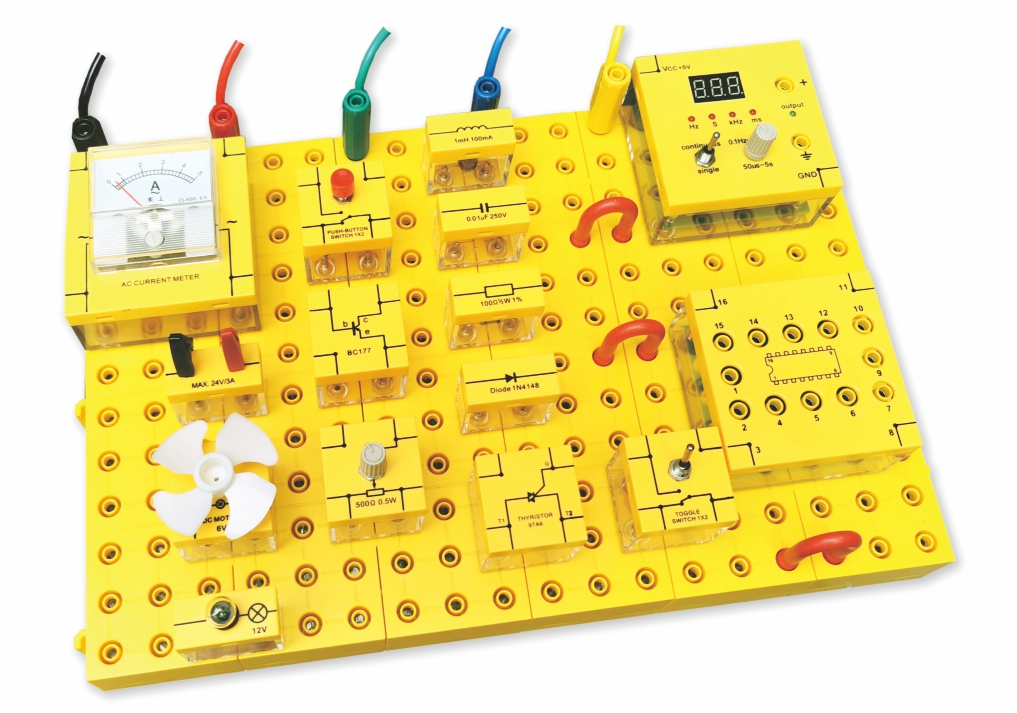

MSC MODULAR SAFETY CIRCUIT SYSTEM

WITH:
SAFETY CIRCUIT BOARD-MSC1
SAFETY VISIBLE COMPONENT MODULE-MSC2
SAFETY SHUNT & LEADS-MSC3

Feature
.Safety and easy to creat your circuit quickly
.Over 60 preset modules and custom made module is available

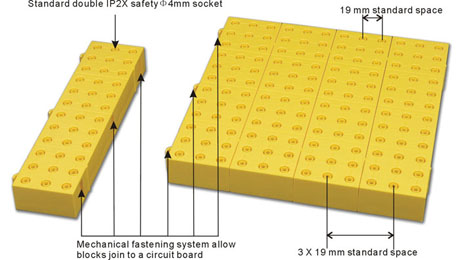

.Standard double IP2X safetyΦ4mm socket connection

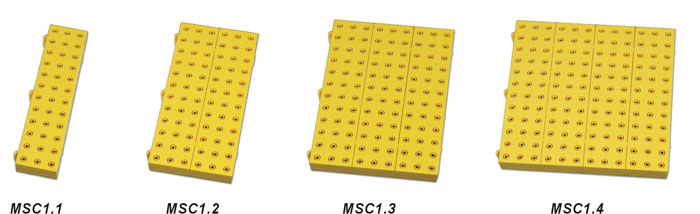

SAFETY CIRCUIT BOARD-MSC1
ModelBlockUnitSocket
MSC1.11436
MSC1.22872
MSC1.3312108
MSC1.4
416144

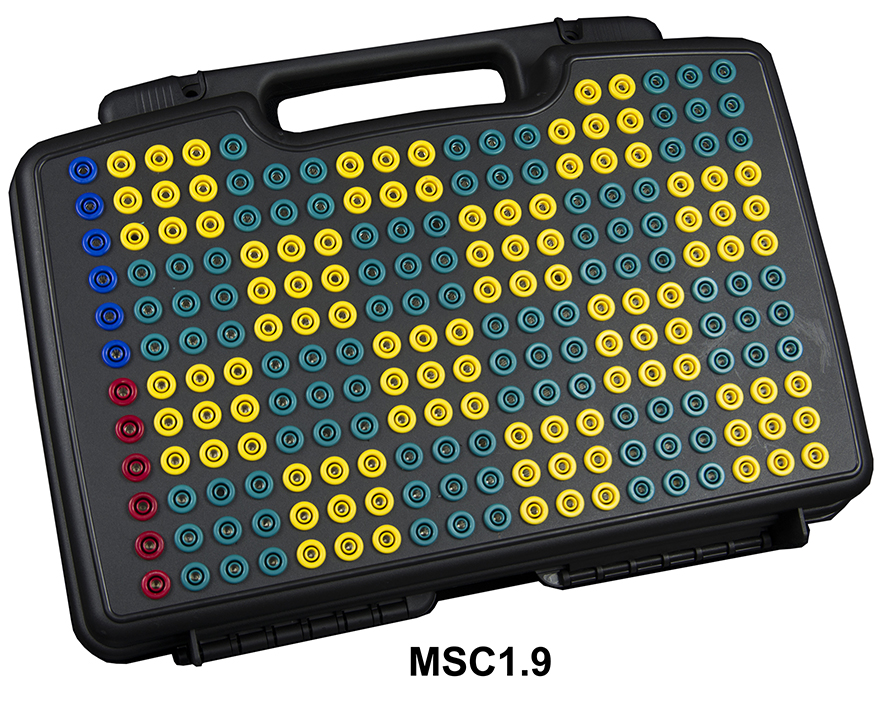

MSC1.9126217

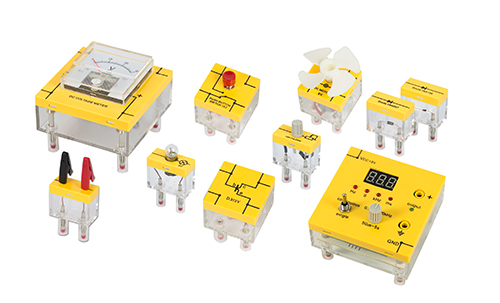

SAFETY VISIBLE COMPONENT MODULE-MSC2
SAFETY SHUNT & LEADS-MSC3
Safety shunt MSC3.1

Standard double IP2X safetyΦ4mm plug
and 19mm plug space


MSC3.1

Safety leads MSC3.25

Standard double IP2X safetyΦ4mm plug
Length: 250mm

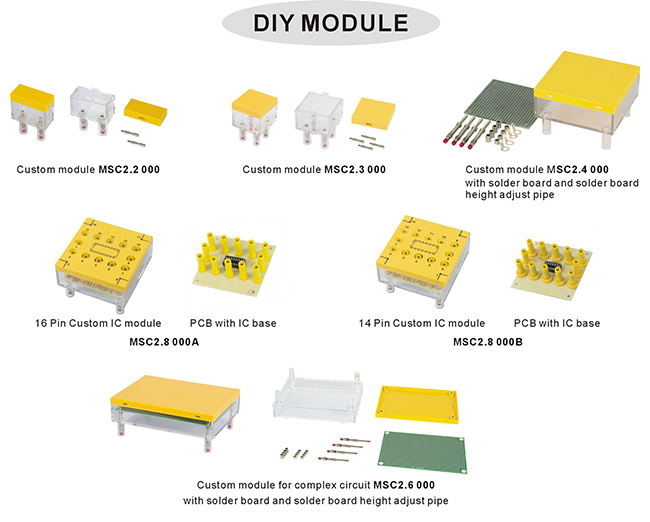

CREATE YOUR OWN SAFETY VISIBLE
COMPONENT MODULE



SAFETY VISIBLE COMPONENT MODULE-MSC2
DIPOLES MODULE-MSC2.2

Dimensions (W×H×D): 38×50.5×19

Standard double IP2X safetyΦ4mm plug

Transparent and marked housing

SMALL QUADRIPOLES MODULE-MSC2.3


Dimensions (W×H×D): 38×50.5×38

Standard double IP2X safetyΦ4mm plug

Transparent and marked housing

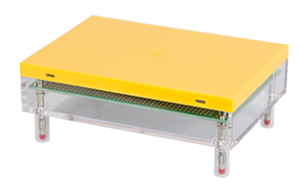

LARGE QUADRIPOLES MODULE-MSC2.6

Dimensions (W×H×D): 133×50.5×95

Standard double IP2X safetyΦ4mm plug

Transparent and marked housing		QUADRIPOLES MODULE-MSC2.4

Dimensions (W×H×D): 76×50.5×76

Standard double IP2X safetyΦ4mm plug

Transparent and marked housing
DIPOLES MODULE-MSC2.2 SERIES
ModelSpecification
MSC2.2.001Resistor 100Ω,2W,1%
MSC2.2.002Resistor 100Ω,1/2W,1%
MSC2.2.003Resistor 220Ω,1/2W,1%
MSC2.2.004Resistor 470Ω,1/2W,1%
MSC2.2.005Resistor 500Ω,1/2W,1%
MSC2.2.006Resistor 680Ω,1/2W,1%
MSC2.2.007Resistor 1kΩ,1/2W,1%
MSC2.2.008Resistor 2.2kΩ,1/2W,1%
MSC2.2.009Resistor 3.3kΩ,1/2W,1%
MSC2.2.010Resistor 4.7kΩ,1/2W,1%
MSC2.2.011Resistor 10kΩ,1/2W,1%
MSC2.2.012Resistor 330kΩ,1/2W,1%
ModelSpecification
MSC2.2.031Capacitor 0.01uF,250V
MSC2.2.032Capacitor 0.1uF,63V
MSC2.2.033Capacitor 1uF,25V
MSC2.2.034Capacitor 2.2uF,25V
MSC2.2.035Capacitor 10uF,25V
MSC2.2.036Capacitor 47uF,25V
MSC2.2.037Capacitor 100uF,25V
MSC2.2.038Capacitor 1000uF,25V
ModelSpecification
MSC2.2.051VR 500Ω, 0.25W
MSC2.2.052VR 10kΩ, 0.25W
ModelSpecification
MSC2.2.061ZD6.2V
MSC2.2.062ZD8.2V
MSC2.2.063Diode 1N4007
MSC2.2.064Diode 1N4148
MSC2.2.065Red LED
MSC2.2.066Green LED
ModelSpecification
MSC2.2.0711mH,100mA
MSC2.2.07210mH,100mA
MSC2.2.07350mH,50mA
ModelSpecification
MSC2.2.081PTC 150Ω,6W
MSC2.2.082NTC 33Ω,1W
MSC2.2.083LDR 10MΩ~8kΩ
ModelSpecification
MSC2.2.101E10 base bulb 6V
MSC2.2.102Push-button switch 1x1
MSC2.2.103Toggle switch 1x1
MSC2.2.104Universal stand
   MSC2.2.105
   Buzzer 3~7V
MSC2.2.1065V power supply
SMALL QUADRIPOLES MODULE-MSC2.3 SERIES
ModelSpecification
MSC2.3.001Potentiometer 100Ω,0.5W
MSC2.3.002Potentiometer 500Ω,0.5W
MSC2.3.003Potentiometer 1kΩ,0.5W
MSC2.3.004Potentiometer 10kΩ,0.5W
MSC2.3.005Potentiometer 1MΩ,0.5W
MSC2.3.006Potentiometer 5kΩ,3W
ModelSpecification
MSC2.3.031Transistor BC108
MSC2.3.032Transistor BC177
MSC2.3.033Transistor BD135
MSC2.3.034Transistor D313Y
ModelSpecification
MSC2.3.041Thyristor 97A6
ModelSpecification
MSC2.3.101Push-button switch 1x2
MSC2.3.102Toggle switch 1x2
MSC2.3.104DC motor 6V
msc2.3 aio.jpg
QUADRIPOLES MODULE-MSC2.4 SERIES
ModelSpecification
MSC2.4.021Decade 10x100Ω,0.5W
MSC2.4.022Decade 10x1kΩ,0.5W
ModelSpecification
MSC2.4.049Diode bridge 2A,100V
ModelSpecification
MSC2.4.051DC voltage meter 30V,2.5%
MSC2.4.052DC current meter 1A,2.5%
MSC2.4.053AC voltage meter 30V,2.5%
MSC2.4.054AC current meter 1A,2.5%
ModelSpecification
MSC2.4.103Relay 12V
msc relay.png
ModelSpecification
MSC2.4.105DC power supply
Input:12V
Output: +5V/1A,+9V/1A
MSC2.4.1065V DC power supply
Input:5V (micro USB interface)
Output:5V
DIGITAL LOGIC MODULE-MSC2.7 SERIES
ModelSpecification
MSC2.7.0014-bit data switchs
MSC2.7.0024-bit led level display
MSC2.7.003pulse generator 0.1Hz~10kHz
MSC2.7.0047 seg led display
IC MODULE-MSC2.8 SERIES
ModelSpecification
MSC2.8.0017400 quad 2-input nand gates
MSC2.8.0027402 quad 2-input nor gates
MSC2.8.0037404 hex inverting gates
MSC2.8.0047408 quad 2-input and gate
MSC2.8.0057432 quad 2-input or gates
MSC2.8.0067420 dual 4-input nand gates
MSC2.8.007hd14002 dual 4-input nor gates
MSC2.8.0087486 quad 2-input exclusive or gates
MSC2.8.00974123 dual retriggerable monostable
MSC2.8.010cd4077 quad 2-input exclusive nor gates
MSC2.8.0117476 dual j-k flip-flop
MSC2.8.012mc14027 dual j-k master/slave flip-flop
MSC2.8.01374190 4-bit synchronous up/down binary counters
MSC2.8.01474283 4-bit binary adder carry
MSC2.8.01574194 4-bit bi-dir shift register
MSC2.8.01674125 octal 3-state buffer
MSC2.8.01774253 dual 4-ch 3-state multiplexers
MSC2.8.018744511 bcd-7 seg driver/decoder
MSC2.8.000ADIY module with 16 pins DIP IC socket
MSC2.8.000BDIY module with 14 pins DIP IC socket
