F1 SERIES

DEMONSTRATION TRANSPARENT COMPONENTS

Feature
.Stainless steel grid panel
.Transparent component box with magnetic base
.Connecting with 4mm socket
.Plastic basement of tray for components and leads storage

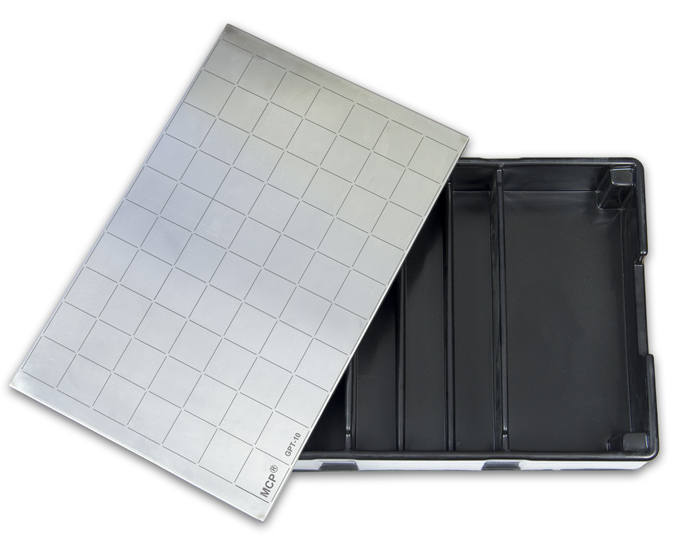

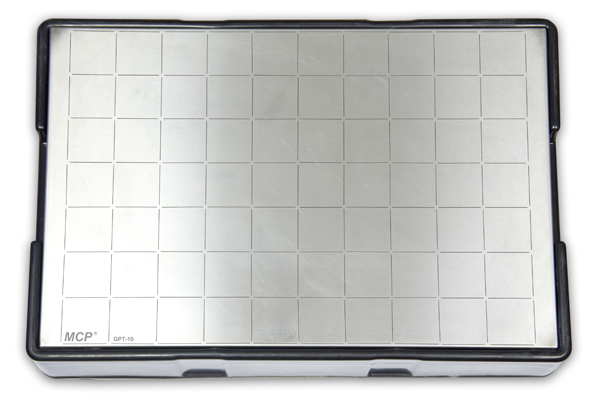

Grid panel and tray GPT-10 Dimensions (W×H×D): 462×86×312mm

Components

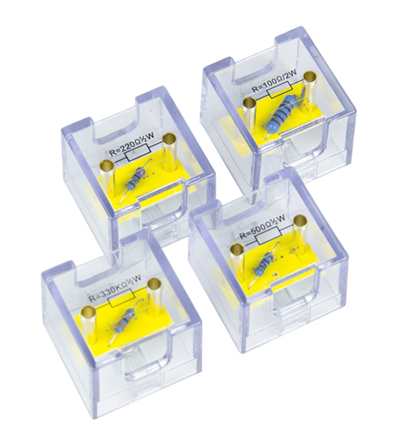

Resistor models: Model Specification F1-1001 100Ω, 2W, 1% F1-1002 100Ω, 1/2W, 1% F1-1003 220Ω, 1/2W, 1% F1-1004 470Ω, 1/2W, 1% F1-1005 500Ω, 1/2W, 1% F1-1006 680Ω, 1/2W, 1% F1-1007 1kΩ, 1/2W, 1% F1-1008 2.2kΩ, 1/2W, 1% F1-1009 3.3kΩ, 1/2W, 1% F1-1010 4.7kΩ, 1/2W, 1% F1-1011 10kΩ, 1/2W, 1% F1-1012 330kΩ, 1/2W, 1%	F1-1000 series

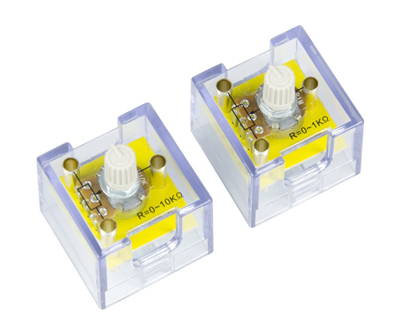

Potentiometer models: Model Specification F1-2001 0~500Ω F1-2002 0~1kΩ F1-2003 0~10kΩ F1-2004 0~1MΩ	F1-2000 series

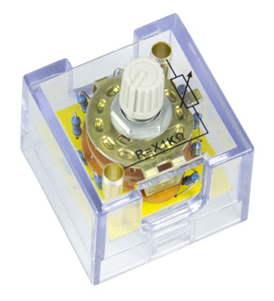

Decade resistor models: Model Specification F1-3001 Decade×100Ω F1-3002 Decade×1kΩ	F1-3000 series

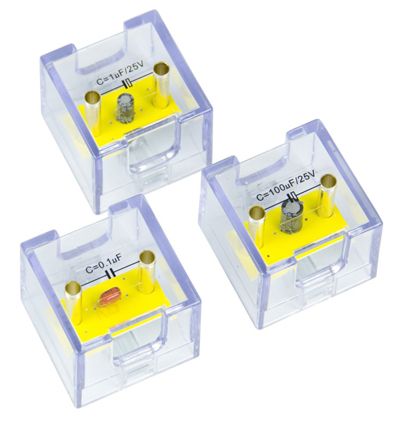

Capacitor models: Model Specification F1-4001 0.1μF, 25V F1-4002 1μF, 25V F1-4003 2.2μF, 25V F1-4004 10μF, 25V F1-4005 47μF, 25V F1-4006 100μF, 25V	F1-4000 series

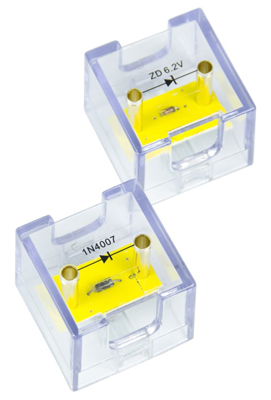

Zener and diode models: Model Specification F1-5001 ZD6.2V F1-5002 ZD8.2V F1-5003 DIODE 1N4007 F1-5004 DIODE 1N4148	F1-5000 series

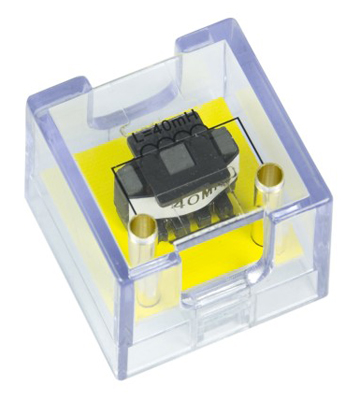

Inductor models: Model Specification F1-6001 1mH F1-6002 10mH F1-6003 30mH F1-6004 40mH	F1-6000 series

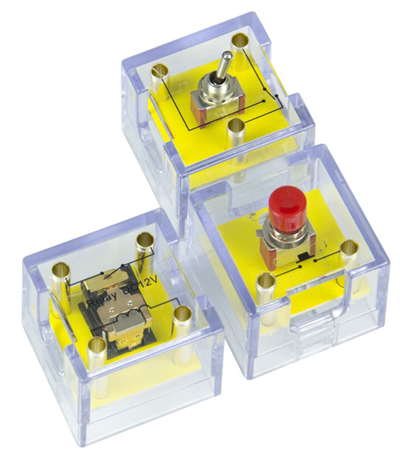

Switch and relay models: Model Specification F1-7001 TOGGLE 1×2 F1-7002 TOGGLE 2×2 F1-7003 PUSH BUTTON 1×2 F1-7004 RELAY 12V	F1-7000 series

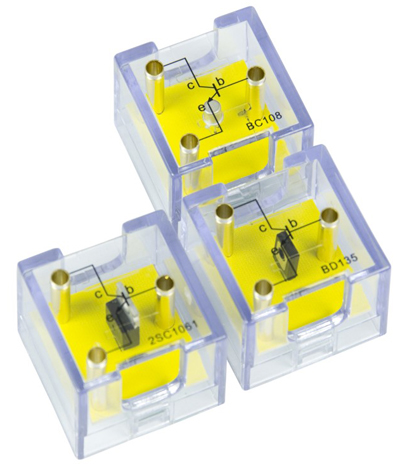

Transistor models: Model Specification F1-8001 TRANSISTOR BC108 F1-8002 TRANSISTOR BC177 F1-8003 TRANSISTOR BD135 F1-8004 TRANSISTOR D313Y	F1-8000 series

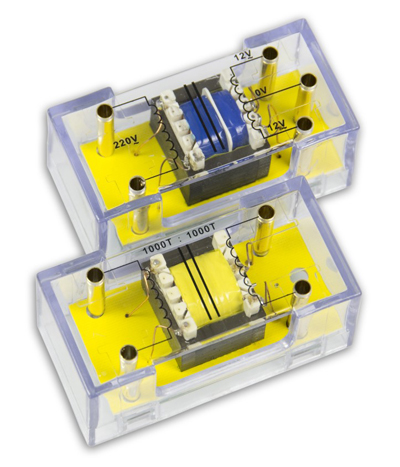

Transformer models: Model Specification F1-9001 220V 12V-0-12V F1-9002 1000T:1000T
