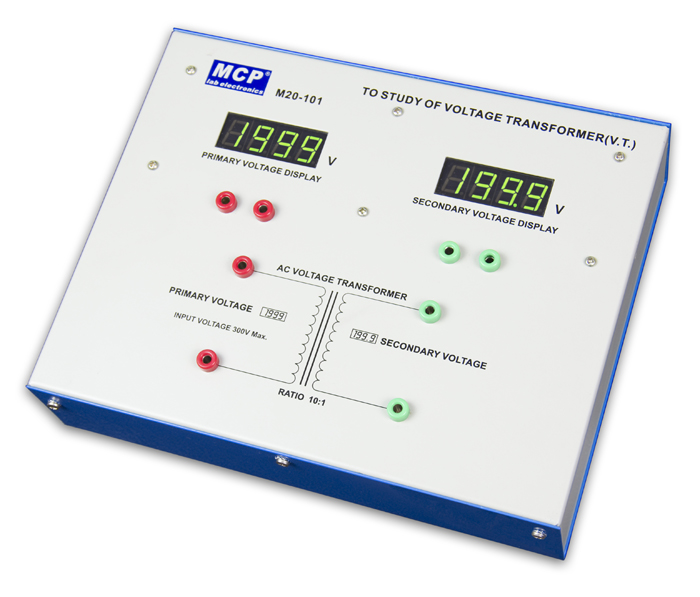

M20-101
experiment of voltage transformer
Features
.Φ4mm socket for convenience connecting
.Digital voltage meter for convenience indicating primary and secondary voltage
Specifications:
.Primary voltage: 0~300V
.Secondary voltage: 0~30V
.Display of voltage meter 1: 0~1999V (3 1/2 digits)
.Display of voltage meter 2: 0~199.9V (3 1/2 digits)
.Voltage transformer ratio: 10:1
.Power source: 110~127VAC±10% 60Hz or 220~240VAC±10% 50Hz
.Dimensions: 250×80×200mm
.Weight: 2.5kg

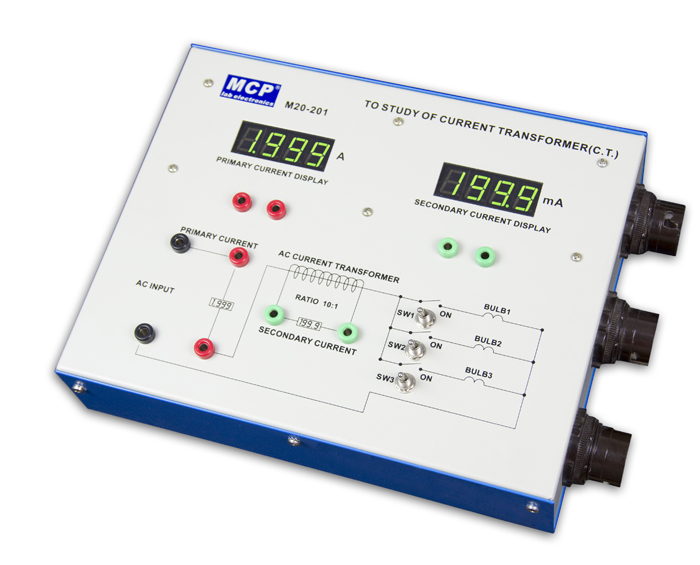

M20-201
experiment of current transformer
Features
.Φ4mm socket for convenience connecting
.Digital current meter for convenience indicating primary and secondary voltage
.Three bulbs' socket (W27) for lamp connecting
Specifications:
.Primary current: 0~2A
.Secondary current: 0~200mA
.Display of current meter 1: 0~1.999A (3 1/2 digits)
.Display of current meter 2: 0~199.9mA (3 1/2 digits)
.Current transformer ratio: 10:1
.Power source: 110~127VAC±10% 60Hz or 220~240VAC±10% 50Hz
.Dimensions: 250×80×200mm
.Weight: 2.5kg
