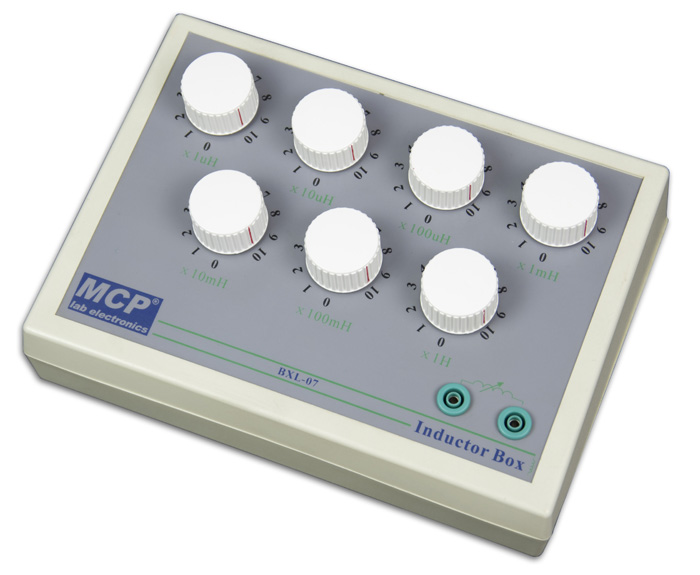

BXL-07
Inductor box
Feature
.High accuracy to 5% (decade 1~6); 10% (decade 7)
.Economical, high performance high resistance decade for all laboratory
.Plastic cabinet for better insulation
| Decade | Range | Max. Current | Dimension(mm)
LxWxH | Weight |
| 1 | 1μH~10μH | 300mA | 170x440x90 | 1.2Kg |
| 2 | 10μH~100μH | 200mA |
| 3 | 100μH~1mμH | 100mA |
| 4 | 1mμH~10mμH | 100mA |
| 5 | 10mμH~100mμH | 70mA |
| 6 | 100mμH~1H | 50mA |
| 7 | 1H~10H | 40mA |
