P338001

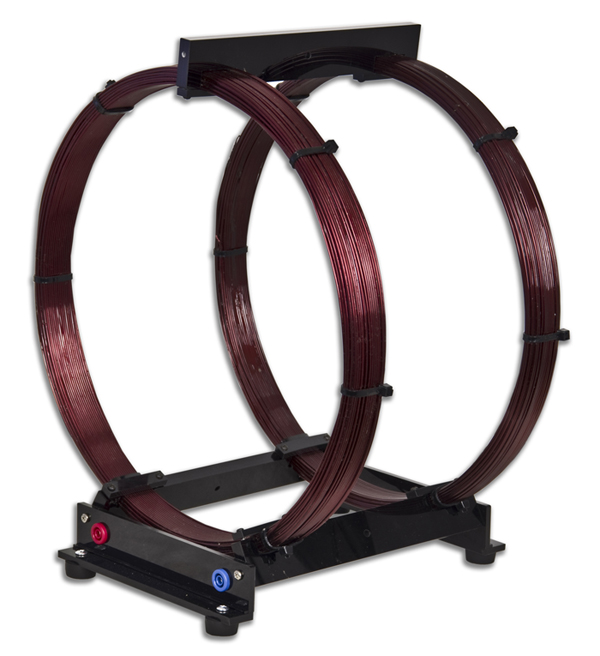

HELMHOLTZ COIL

Features

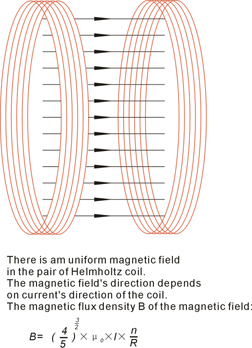

.Pair of coils in Helmholtz configuration used to produce a homogeneous magnetic field
.The coils can be switched in parallel or in series
.A spring clip is used to mount the Hall sensor

Specifications:

.Coil diameter: Approx. 300mm
.Max. field: 3.8mT
.Number of turns: 124
.DC resistance: 1.8Ω (3.6Ω in series)

.Max. coil current: 5A
.Terminals: φ4mm safety socket
.Weight: 4kg
