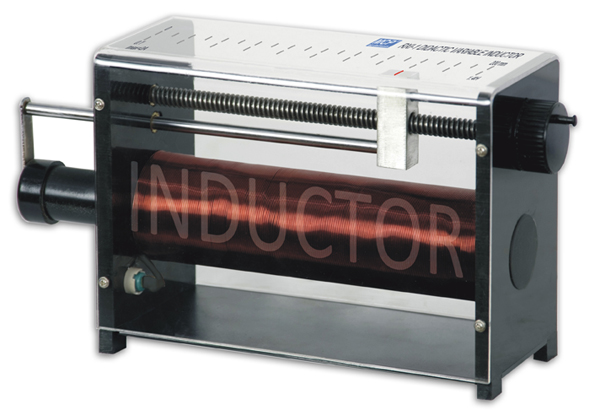

RXI-1
DIDACTIC VARIABLE INDUCTOR
Features
.Inductor equipped with 4mm safety socket and the whole unit is double insulated
| Technical Data | RXI-1 |
| Variable inductance: | 0.1~1.4H |
| No. of turns: | 3500 in 16 layers |
| Resistance: | 25Ω |
| Max. current: | 2A |
| Wire diameter: | φ1.0mm |
| Core: | Soft iron φ40mm x 180mm |
| Graduation: | Henry and centimeter |
| Dimension: | 290×160×105mm |
| Weight: | 2.9kg |
