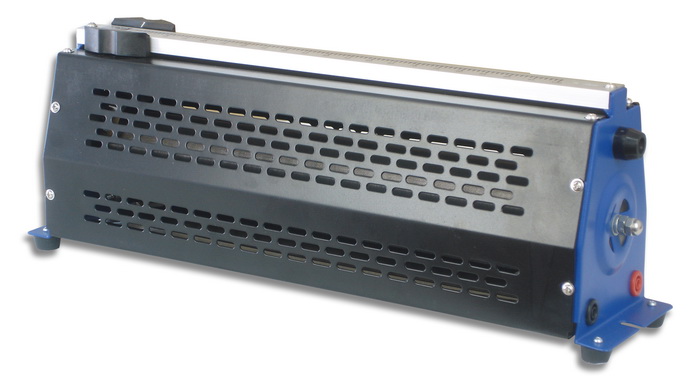

BXS Series
RHEOSTAT
Feature
. Enclose in robust sheet metal cover
. 100 scale division to show the resistance setting.
. Good linearity
. Sliding contact of coppers graphite
| Max. Working Voltage | 380VAC, 400VDC |
| Resistance tolerance | ±10% |
| Insulation resistance | >3x109 Ω |
| Earthing resistance | <0.1Ω |
| Rated resistance | see table |
| Model | Power
(VA) | Resistance
(Ω) | Max.
Current(A) | Dimensions
(mm) | Ceramic
Pipe diameter
| Weight
(kg) |
| BXS 150 | 160 | 3.3 | 7 | 285x140x95 | 47mm | 1.8 |
| 10 | 4 |
| 33 | 2.2 |
| 100 | 1.25 |
| 330 | 0.7 |
| 1000 | 0.4 |
| 3300 | 0.22 |
| BXS 300 | 320 | 3.3 | 10 | 385x140x95 | 47mm | 2.4 |
| 10 | 5.7 |
| 33 | 3.1 |
| 100 | 1.8 |
| 330 | 1.0 |
| 1000 | 0.57 |
| 3300 | 0.31 |
| 10000 | 0.18 |
| BXS 600 | 640 | 1.6 | 20 | 485x160x100 | 64mm | 3.2 |
| 5 | 11.4 |
| 16.5 | 6.2 |
| 50 | 3.6 |
| 165 | 2 |
| 500 | 1.1 |
| 1650 | 0.63 |
| 5000 | 0.36 |
