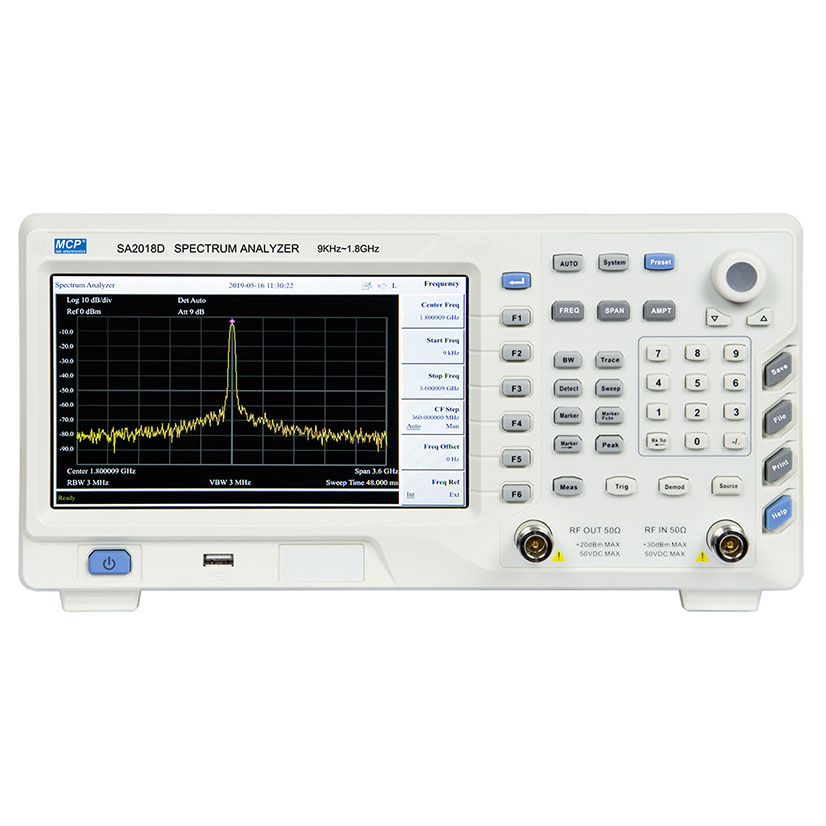

SA2000 SERIES
SPECTRUM ANALYZER
Feature
.Frequency range 9kHz~1.8GHz/3.0GHz
.Resolution bandwidth 1Hz~3MHz, sensitivity better than -158dBm
.Double source function, tracking/independence
.Acquisition of fast transient signals with application-specific transient detector
.Waterfall curve, modulation quality analysis, audio demodulation function
.Field strength, demodulation measure, S11 / S21 parameter and signal channel measure
.Pass-fail and others field test warning abilities
.8”color TFT-LCD display, multitracking operational measurement
| Technical data | SA2018/2018D | SA2030/2030D |
| Frequency range | 9kHz~1.8GHz | 9kHz~3GHz |
| Frequency resolution | 1Hz |
Frequency readout accuracy
| ±(frequency indication×frequendy accuracy+1%span+10%RBW+0.5×[span/(sweep dot-1)]+1Hz) |
Aging rate
| ＜2ppm/year |
| Temperature drift | ＜1ppm, 15℃~35℃ |
Bandwidth resolution
| 10Hz~500kHz, 1MHz, 3MHz |
Resolution filter shape factor
(60dB:3dB) | ＜5:19 (typical value, RBW≤500kHz) |
| RBW accuracy | ＜5% (typical value) |
| Video bandwidth | 10Hz~3MHz, in 1-3-10 sequence |
| DANL (preamplifier off/on) | 100kHz~1MHz, ＜-100dBm-3x(f/100kHz)dB/＜-120dBm-3x(f/100kHz)dB
1MHz~10MHz, ＜-130dBm/＜-150dBm
10MHz~1GHz, ＜-135dBm/＜-155dBm
1GHz~1.8GHz, ＜-134dBm/＜-153dBm
1GHz~3GHz, ＜-130dBm/＜-148dBm |
| Phase noise | -90dBc/Hz (offset: 30kHz)
-100dBc/Hz (offset: 10kHz)
-115dBc/Hz (offset: 1MHz) |
| Sweep time range | 3ms~ 3000s (span≠0)
1ms~ 3000s (span≠0) |
| Sweep mode | continuous, single |
Frequency counter resolution
| 1Hz, 10Hz, 100Hz, 1kHz |
Frequency counter accuracy
| frequency indication×frequency reference accuracy+frequency counter resolution |
Amplitude accuracy | ±1.5dB (input signal 0dBm~-50dBm) |
| Amplitude | Display average noise level
(test range fc≧10MHz) | +20dBm (SA2018/SA2018D)
+27dBm (SA2030/SA2030D) |
Max. Input level
(average continuous power) | +23dBm (SA2018/SA2018D)
+27dBm (SA2030/SA2030D) |
| Max. DC Input voltage | 50V |
| P1dB | +7dB |
| Spurious & residual response | IP3(>30MHz) | +13dB |
| IP2 | +30dB |
| Input spurious | ＜-60dBm |
| Residual response | ＜-90dBm (SA2018/SA2018D)
＜-85dBm (SA2030/SA2030D) |
Tracking source (SA2018D/SA2030D) | Frequency range | 100kHz~1.8GHz (SA2018D)
100kHz~3.0GHz (SA2030D) |
| Output power | -30dBm~0dBm, 1dB step |
| Output flatness | ±3dB |
| Input & output | RF input | N female, 50Ω |
USB | USB2.0 (H), USB2.0 (D) |
| LAN | 10/100 Base-T, RJ-45 |
| RS232 | 9 pin, D-SUB femail |
| Time base in/out | 10MHz, BNC female, input power 0dBm~10dBm, output power 0dBm±2dB |
| VGA | 800×460,60Hz, 15 pin, D-SUB female |
| Trigger input | BNC female, 5V TTL level (max.±10V,100mA) |
AM/FM demodulation | 3.5 jack female |
| Display screen | 8'' TFT-LCD |
| Power source | 100V~240V, 40Hz~60Hz, 20W |
| Dimensions(W×H×D) | 335×162×116 mm |
| Weight | 4kg |
