TM801
TIMER
Features
.Multiple function
.Microprocessor controlled
.Hand hold and rechargeable battery operation
Introduction

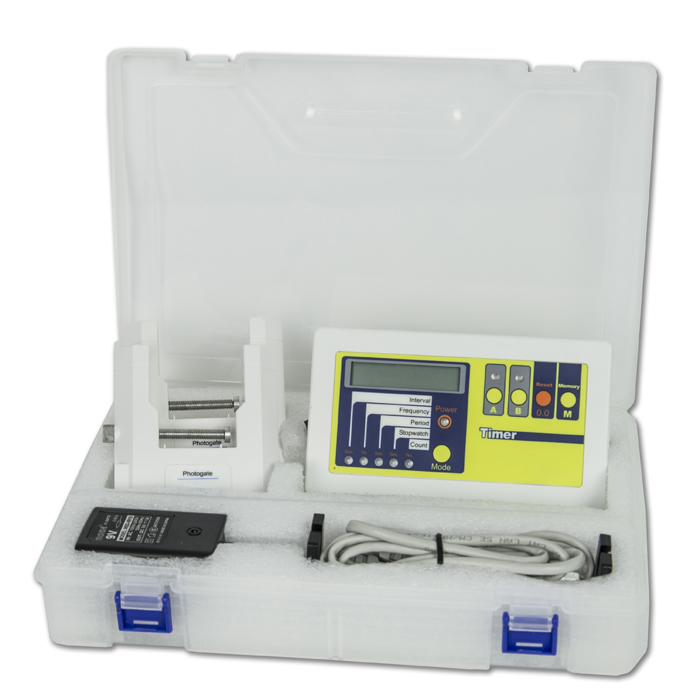

This microprocessor controlled LCD display universal counter can be used for measurement of time intervals, simple pendulum periods, velocity, acceleration, revolutions per second, frequency, pulses etc. It measures time intervals from 0.1 millisecond and frequencies to 20 KHz. The counter is provided with a five-digit LCD display, and a compact case making the apparatus highly suitable for student lab exercises. RJ45 inputs are provided for connection of photogate. Memory is provided for storing measured values.
| Technical Data | 5 digits LCD |
| Display | 5 digits LCD |
| Input | RJ45 |
| Start / Stop | from 0.01 s to 12000 s, resolution 0.01s/1s |
| Collision | A and B passage time from 0.1ms to 19999s, resolution 0.1ms |
| Acceleration | passage time and A to B time from 0.1ms to19999s, resolution 0.1ms |
| Period | from 0.1ms to 19999s, resolution 0.1ms |
| Frequency / resolution | from 0.1 Hz to 19999Hz / 0.1 Hz |
| Counter | from 1 count to 19999 counts |
| Memory storage | 10 values |
| Rechargeable battery | 9V/1800mAh |
| Accessory | photogate P416001, RJ45 cable, Power adapter |
| Dimensions | 165 x 95 x 45 mm (timer), 300 x 206 x 60 mm (box) |
| Weight | 1.0 kg (with box) |
