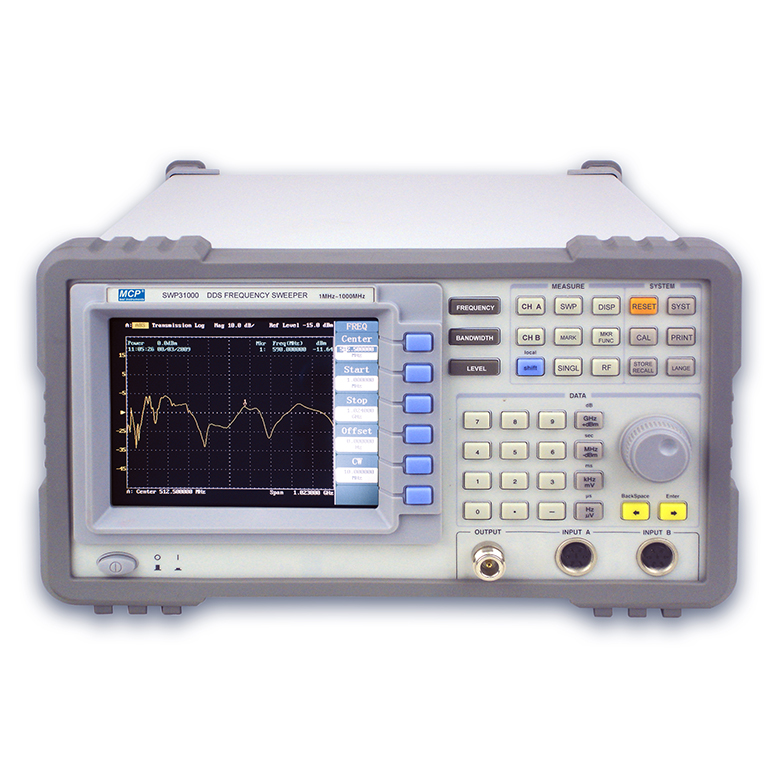

SWP31000
FREQUENCY RESPONSE ANALYZER
Feature
. 1GHz sweep signal
. High accuracy and stability with digital PLL technology
. Both lin. and log. scale display
. Both auto and manual sweep time
. 5 free setting markers, gain and frequency display
. 6.4 TFT color LCD and soft keys
. RS232, VGA interface and GPIB optional
. Limit lines search, set and compare function
. -3dB bandwidth and Q value measurement function
| SWP31000 |
| Output characteristics |
| Frequency range | 1MHz~1024MHz |
| Frequency resolution | 100Hz |
| Frequency accuracy | ±1x10-6 |
| Frequency stability | 1x10-8/day |
| Amplitude range | -67dBm~+13dBm |
| Amplitude accuracy | ±1.0dBm (f<10MHz) |
| ±40dBm (f≥10MHz) |
| Amplitude flatness | ±1.0dBm (f<10MHz) |
| ±40dBm(f≥10MHz) |
| SWR | ≤1.5 |
| Output off attenuation | 80dB |
| Scale | mVrms, uVrms, dBm |
| Output impedance | 50Ω |
| Harmonic distortion | ≤-25dBc |
| Sweep characteristics | Sweep time: auto/manual(250mS~10S) |
| Sweep mode: continue/single |
| Trig mode: int./ext |
| Ext. trig level: TTL |
| Ext. trig frequency: ≤3Hz |
| Input characteristics |
| Input impedance | 50Ω |
| Amplitude range | -40dBm~+13dBm |
| Display characteristics |
| Log. scale | 1dB/div, 2dB/div, 5dB/div,10dB/div |
| Lin. scale | 10mV/div, 20mV/div, 50mV/div, 100mV/div,200mV/div, 500mV/div |
| Mark | 5 |
| Display | 80dB |
| Detector characteristics |
| Frequency range | 1MHz~1024MHz |
| Dynamic range | 60dB |
| Impedance | 50Ω |
| Max. input voltage | +16dBm |
| Max. safety voltage | ±25VDC,+20dBm |
| Power supply | 110~127 VAC±10%, 220~240VAC±10% 50Hz±2Hz, 60Hz±2Hz |
| DIMENSIONS & WEIGHT | 340x190x360mm 6Kg |
