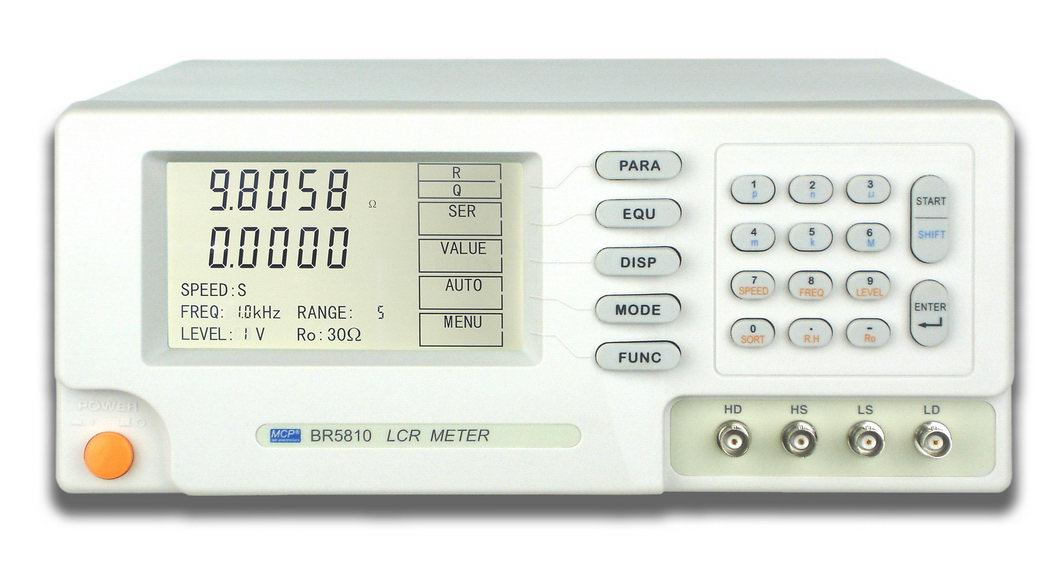

BR5812/BR5810
LCR METER
Features
.Three test levels
.0~25V internal offset voltage
.7 test parameters
.Special large white backlight LCD display screen
.4 bins comparator and bin counter
.RS232C and HANDLE interfaces
| Technical Data | BR5812 | BR5810 | | T est parameters | L/Q, C/D, R/Q, |Z|/θ, C/R, L/R | | Accuracy | 0.1% | | Test frequency | 100Hz, 120Hz, 1kHz, 10kHz,
