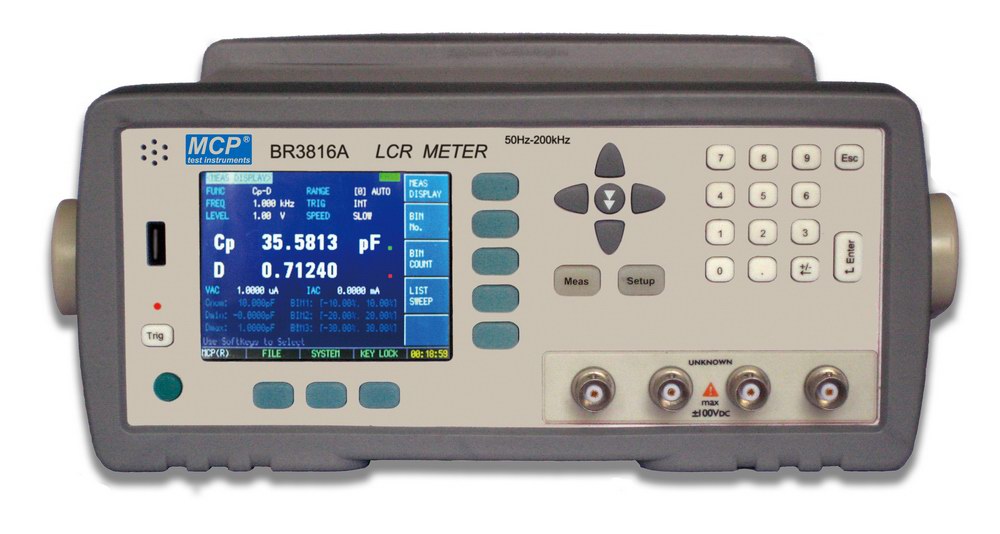

BR3816A
LCR METER
Features
.Programmable signal frequency from 50Hz to 200kHz with 12000 points
.Programmable signal voltage level from 10mVrms to 2.0Vrms with 0.01V by step
.7 test parameters
.3-line VFD display
.High performance and low cost.
.20 files and 14 bins comparator function
.Easy operation
.RS232C, HANDLER and USB (option) interface
.Key lock function and data Hold function
| Technical Data | BR3816A |
| Test parameters | L-Q, L-R, C-D, C-R, R-Q, |Z|-θ |
| Accuracy | 0.05%±5digits |
| Test frequency | 50Hz~200kHz (12000 points) |
| Test level | 0.01Vrms~2Vrms |
| Test resolution | 0.01Vrms |
| Output impedance | 30Ω, 50Ω or 100Ω |
| Measurement range | |Z|,R 0.0001Ω~99.999MΩ
C 0.0001pF~99999µF
L 0.0001µH~9999H
D,Q 0.00001~999999
θ(DEG) -89.999°~89.999°
θ(RAD) -3.1416~3.1416
Δ% -99999%~99999% |
| Measurement speed (time /sec) | slow: 4 medium: 9 fast: 25 |
| Equivalent circuit | Series / Parallel |
| Ranging mode | Auto/Hold |
| Trigger mode | internal/external, manual and long-distance |
| Averaging rate | 1~99 |
| Correction functions | open/short and sweep corrections |
| Measurement terminals | Five terminals |
| Display mode | direct,Δ ABS, Δ%, D, Q, |Z|, Vm, Im, θ, bin number and bin counter |
| Display digits | primary display: 5 digits, secondary display: 6 digits |
| Comparator function | 20 files and 14 bins, P1~P9, AUX, NG, PHI, PIN, PLO |
| Interface | RS232C, HANDLER and USB (option) |
| Display | 4 colors VFD display |
| Power supply | 110~127VAC±10%/220~240VAC±10%, 50Hz±2Hz/60Hz±2Hz |
| Weight | 5kg |
| Dimensions (WxHxD) | 264mm x 350mm x 107mm |
