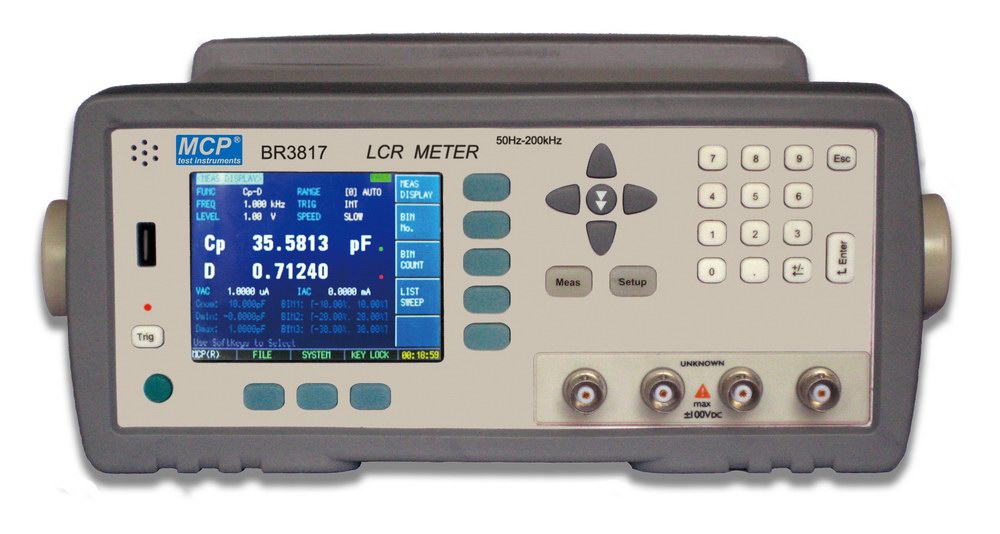

BR3817
LCR METER
Features
.Programmable signal frequency from 50Hz to 100kHz with 10 points
.3 test levels
.7 test parameters
.3-line VFD display
.High performance and low cost.
.20 files and 5 bins comparator function
.Easy operation
.RS232C, HANDLER and USB (option) interface
.Key lock function and data Hold function
| Technical Data | BR3817A | | Test parameters | L-Q, C-D, R-Q, |Z|-θ | | Accuracy | 0.05%±5digits | | Test frequency | 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz | | Test level | 0. 1Vrms, 0.3Vrms, 1.0Vrms | | Output impedance | 30Ω, 50Ω or 100Ω | | Measurement range | |Z|,R 0.0001Ω~99.999MΩ
