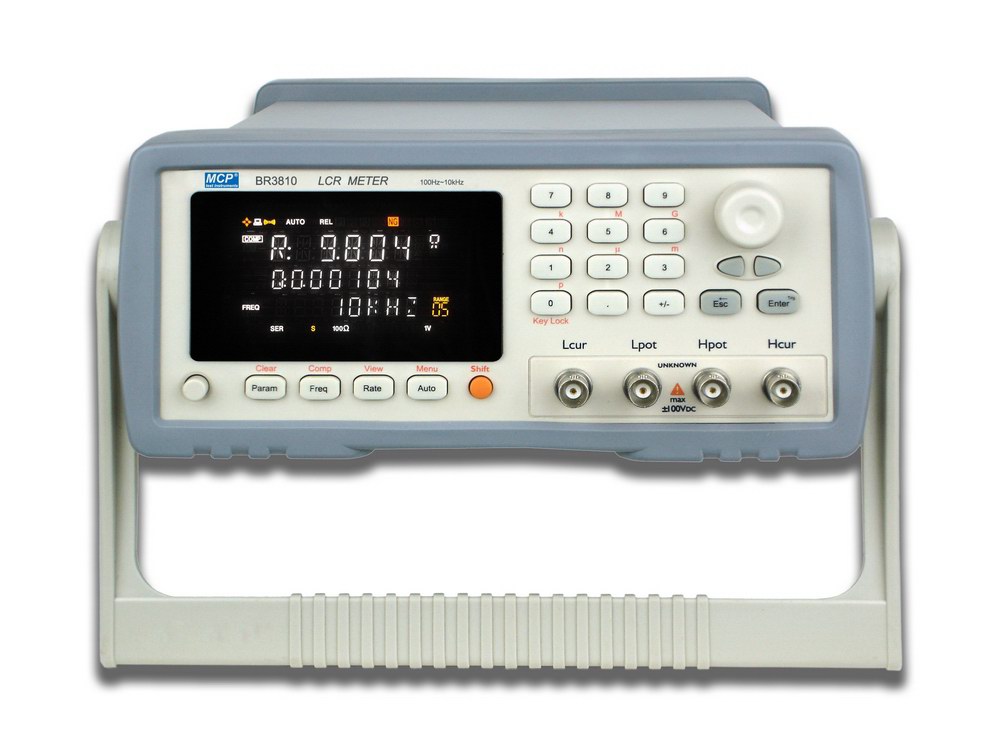

BR3810
LCR METER
Features
.Three test levels
.7 test parameters
.3-line VFD display
.High performance and low cost.
.20 files and 4 bins comparator function
.Easy operation
.RS232C, HANDLER and USB (option) interface
.Key lock function and data Hold function
| Technical Data | BR2820 |
| Test parameters | L, C, R, |Z|, D, Q, θ |
| Accuracy | 0.1%±2digits |
| Test frequency | 100Hz, 120Hz, 1kHz, 10kHz |
| Test level | 0.1Vrms, 0.3Vrms, 1Vrms |
| Output impedance | 30Ω or 100Ω |
| Measurement range | |Z|,R 0.0001Ω~99.99MΩ
C 0.01pF~9999µF
L 0.01µH~9.999H
G,B 0.00001µs~999.999s
D,Q 0.0001~9999
θ(DEG) -90.00°~90.00°
θ(RAD) -3.1416~3.1416
Δ% -9999%~9999% |
| Measurement speed (time /sec) | 3 |
| Equivalent circuit | Series / Parallel |
| Ranging mode | Auto/Hold |
| Trigger mode | Internal |
| Correction functions | Open / Short |
| Measurement terminals | Five terminals |
| Display mode | Direct,Δ% |
| Display digits | Primary and secondary display:5digits |
| Comparator function | NG, P1, P2, P3, 4 bins |
| Interface | RS232C, HANDLER |
| Power supply | 110~127VAC±10%/220~240VAC±10%, 50Hz±2Hz/60Hz±2Hz |
| Weight | 5kg |
| Dimensions (WxHxD) | 280mm x 120mm x 320mm |
