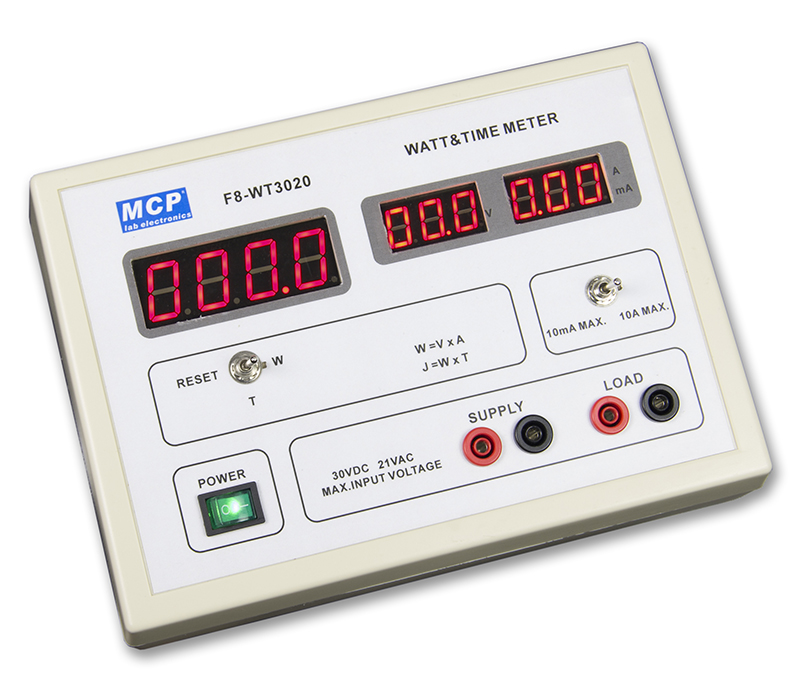

F8-WT3020 WATT & TIME METER

The instrument is capable of directly measuring the electrical power supplied to a load, making it a valuable tool for pupil-based work and simplifying numerous demonstrations. The direct readings obviate the need for voltmeters, ammeters, stop watches and calculators, enabling rapid and accurate results to be obtained. This facilitates comprehension of scientific concepts through empirical investigations

rather than mathematical manipulations, making it ideal for pupil-based inquiries in any technology course.

Features

. Watt measurement with two range mW and W, max. 100W

. Time measurement in 0.1s resolution and 1000s max. duration

. Voltage and current simultaneous measurement

. Comes with 2 set of 2 test leads( plug to plug) and 1 power cable

Specifications

Max. input voltage: 30VDC, 21VAC (rms)

Voltage resolution: 0.1V

Max. load current: W range = 10A, mW range = 10mA

Current resolution: 0.01A, 0.01mA

Max. power: W range = 100W, mW range = 100mW

Power resolution: 0.01W, 0.01mW

Max. time: 1000s

Time resolution: 0.1s

Accuracy: typically ±5% of full scale reading

Electrical Supply: 220-240VAC, 50-60Hz

Dimensions: 240(W) x 90(H) x 170(D) mm

Wight: 1kg
