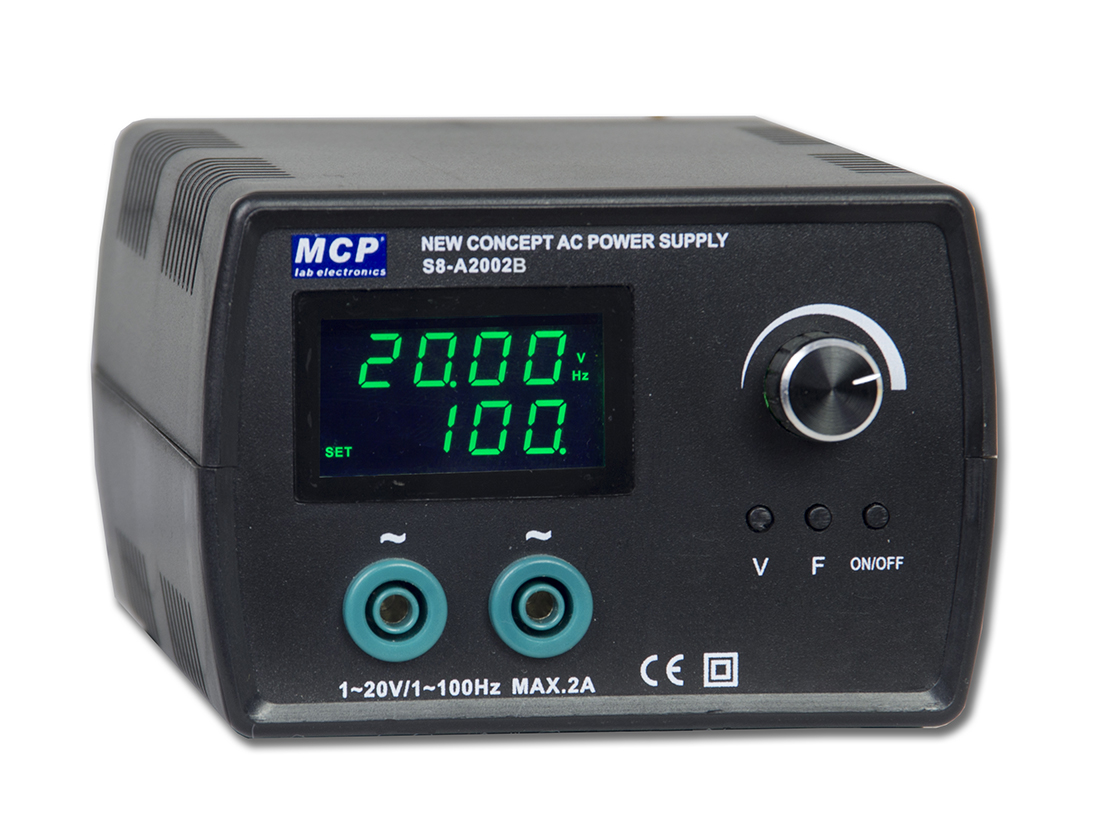

S8 SERIES NEW CONCEPT AC POWER SUPPLY
| S8-A2002B |
| Output voltage: | 1~20Vrms |  |
| Output frequency: | 1~100Hz (1Hz adjusting) |
| Output current: | 2A (adapter mode) 1A (battery mode) |
| Line regulation : | 1% |
| Load regulation : | 1%@50Hz |
| Output accuracy: | Voltage: 0.5%@50Hz, Frequency: 1% |
| Battery operation time: | about 1.5 hours with full load |
| Power source: | S8-000403A adapter: Input: 100~240VAC, 50/60Hz, 1.5A Max. Output: 24V, 3A Max Battery: 18650 Li-ion battery (3.7V 3000mAh)×6 |
| Dimensions: | 110(W)×75(H)×140(D)mm |
| Weight: | 800g |
| *companion model S8-A2002A, powered by adapter only |
| Accessories |

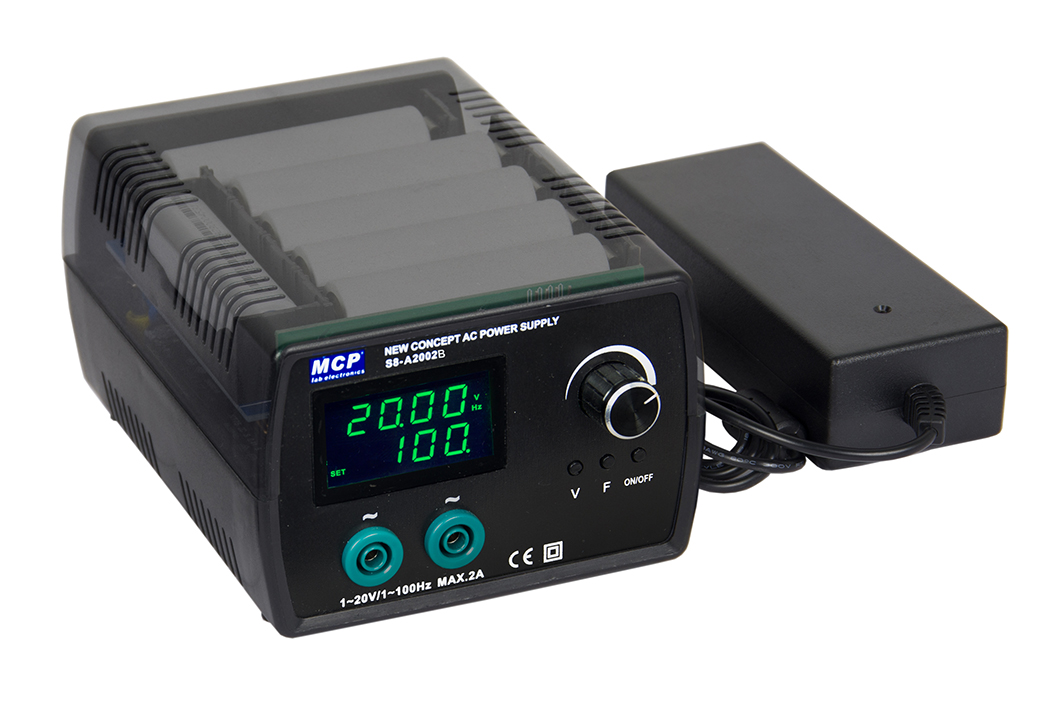

| S8-0001 Battery pack | S8-0002 Battery slot |
 1 Battery slot for S8 series power supply
6 18650 Li-Ion batteries |  1 Battery slot for S8 series power supply
|
| S8-0003 Li-Ion battery | S8-0004 power supply adapter |
18650 Li-Ion battery (3.7V 3000mAh)
|
Input: 100~240VAC, 50/60Hz, 1.5A Max. Output: 24V, 5A Max (S8-000405A) 24V, 4A Max (S8-000404A) 24V, 3A Max (S8-000403A) |
