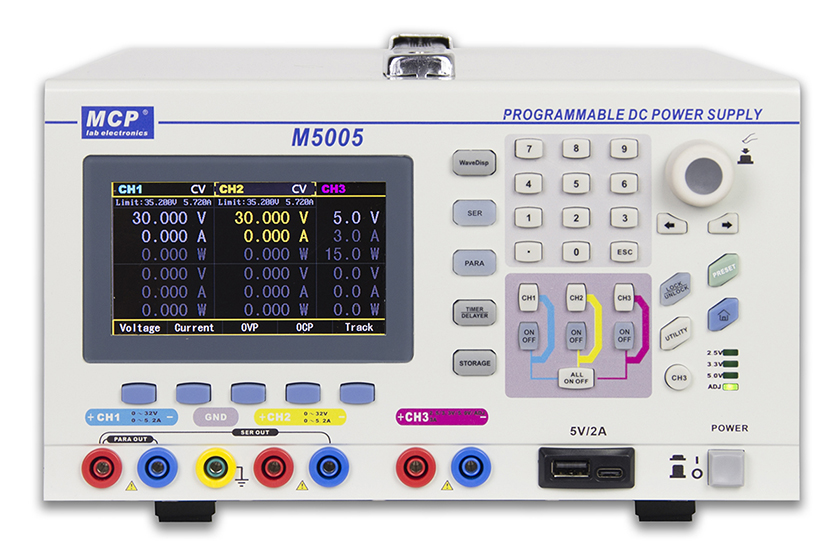

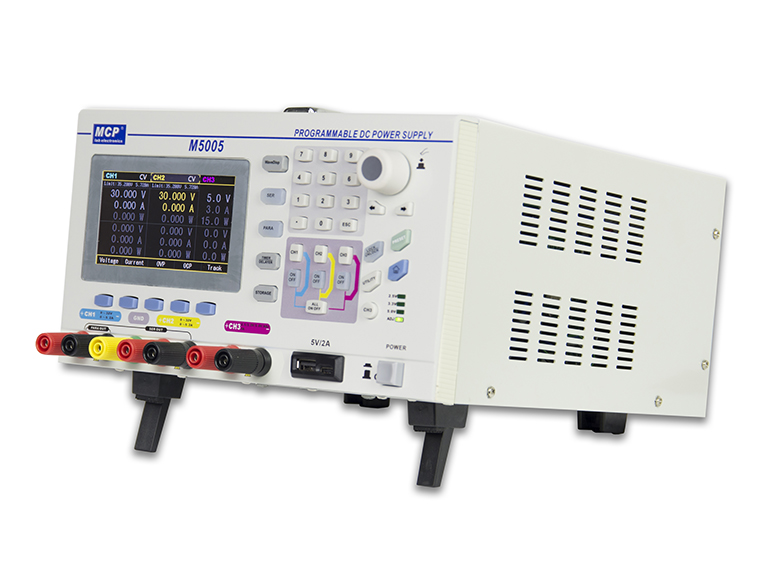

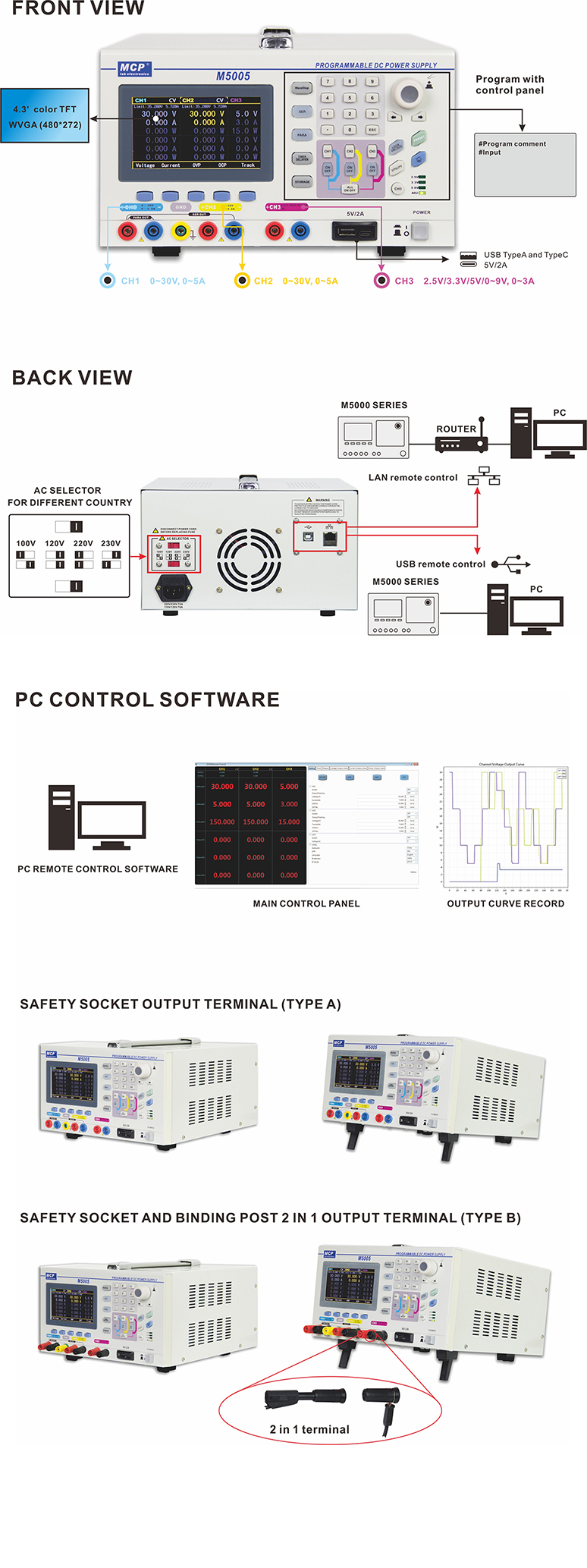

M5000 SERIES
PROGRAMMABLE DC POWER SUPPLY
Features
. 4.3' TFT color display, WVGA (480*272)
. Graphical user menu
. CH1 and CH2 0~30V/0~5A, CH3 0~9V/3A.
. Fixed voltage output 2.5V, 3.3V, 5V/3A
. Type A and type C USB output 5V/2A.
. High output resolution 1mV/1mA
. Low ripple noise.
. Over voltage,over vurrent and over heat protection
| Technical Data |
|
| M5003 | M5005 |
| Output | Voltage |
| CH1&CH2: 0～30V | CH1&CH2: 0～30V |
| CH3: 2.5V/3.3V/5V/ 0～9V | CH3: 2.5V/3.3V/5V/ 0～9V |
| Current |
| CH1&CH2: 0~3A×2 | CH1&CH2: 0~5A×2 |
| CH3: 0~3A | CH3: 0~3A |
CV mode
| Regulation | source
| ≤0.01%+2mV |
| load | ≤0.01%+2mV |
| Ripple & noise |
| ≤1.0mVrms/350μVrms (5Hz~1MHz) |
| Response time |
| ≤50μs(50% lord change & min. load 0.5A) |
Order processing time |
| <100ms |
| Output range |
| 0 to set voltage continuously adjustable |
CC mode
| Regulation | source | ≤0.01%+250μA |
| load | ≤0.01%+250μA |
Ripple & noise
|
| ≤2mArms |
Output range
|
| 0 to set voltage continuously adjustable |
| Trace mode | Parallel | source regulation | ≤0.01%+2mV |
| load regulation | ≤0.01%+2mV |
| Series | source regulation | ≤0.01%+3mV |
| load regulation | ≤300mV |
| Tracking error |
| ≤0.5%+100mV(with load +300mV) |
| Measurement | Display | voltage full range | 5 digits |
current full range | 4 digits |
| Programming resolution | voltage | 1mV
|
| current | 1mA
|
Read back resolution | voltage | 0.1mV |
| current | 0.1mA
|
| Display resolution | voltage | 1mV |
| current | 1mA |
| Programming accuracy (25±5℃) | voltage | ±(0.05%+10mV) |
| current | ±(0.2%+10mA) |
| Reading accuracy (25±5℃) | voltage | ±(0.05%+5mV) |
| current | ±(0.15%+5mA) |
| Voltage programming time | CH1 |
| UP: FL＜50ms,NL＜30ms DOWN: FL＜45ms,NL＜400ms |
| CH2 |
| UP: FL＜50ms,NL＜30ms DOWN: FL＜45ms,NL＜400ms |
| CH3 |
| UP: FL＜15ms,NL＜13ms DOWN: FL＜20ms,NL＜100ms |
Temperature coefficient per ℃ | CH1 | voltage full range | 0.01%+5mV |
current full range | 0.01%+2mA |
| CH2 | voltage | 0.01%+5mV |
| current | 0.01%+2mA |
| CH3 | voltage | 0.01%+2mV |
| current | 0.01%+2mA |
| Channel 3 | output voltage |
| 2.5V/3.3V/5V/0~9V ±8% |
| output current |
| 0~3A |
| Regulation | source | ≤0.01%+3mV |
| load | ≤0.01%+3mV |
| Ripple & noise |
| ≤1.0mVrms (5Hz~1MHz) |
| Interface |
|
| USB Host & Device |
| Power Source |
|
| AC 100V~240V，50Hz /60Hz |
| Weight |
|
| 8kg | 9.5kg |
| Dimension (W×H×D) |
|
| 260mm×270mm×300mm |
