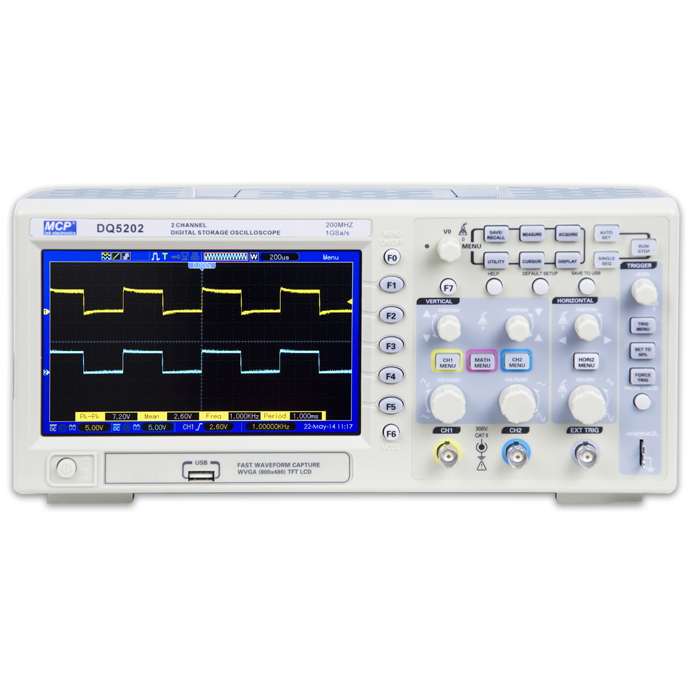

DQ5000 Series
DIGITAL STORAGE OSCILLOSCOPE
Features
. 1GSa/s sampling rate
. 7 inch wide rectangle colour LCD
. 32 kinds of automatic measurement function
. FFT function
. Auto-setting for quick setup and waveform acquisition
. Advanced cursor modes: manual, auto and track
. 40k memory length
| TechnicalData | DQ5072 | DQ5102 | DQ5202 | | Display | | Type | 7" rectangle color LCD | | Display resolution | 800 horizontal×480 vertical pixels | | Display contrast | Adjustable | | VERTICAL SYSTEM | | Sensitivity and accuracy | 2mV / div~10V / div | | Vertical resolution | 8 bit | | Width of band (-3dB) | 70MHz | 100MHz | 200MHz | | Rise time | ≤5ns | ≤3.5ns | ≤1.7ns | | Sing-shot band width | 70MHz | 100MHz | 200MHz | | Input coupling | DC , GND , AC | | DC gain accuracy | ±3% (10mV/div~5V/div), ±4% (2mV/div~5mV/div) | | HORIZONTAL SYSTEM | | SEC/DIV range | 4ns/div~80s/div | 4ns/div~80s/div | 2ns/div~80s/div | | Sampling rate range | 1G Sa/s | | Wave forn interplation | (Sinx)/x | | Record length | 40k | | Memory length | 25k (12.5k per channel) | Sampling rate and delay
Time accuracy | ±50ppm over any ≥1ms time interval | Delta time Measurement
accuracy | Single ± (1 sampling interval time+ 100ppm x rdg +0.6ns)
Average ± (1 sampling interval time+ 100ppm x rdg +0.4ns) | | TRIGGER SYSTEM | Acquisition Mode | AUTO, Normal, Single | | Type | Edge, Pulse Width, Video, Slope, Overtime, Alternate trigger | | Hold Off Range | 100ns~10s | | MATH | ＋, －, ×, ÷ | | FFT | | ACQUIRE INPUT | | Input couping | DC、AC or GND | | Input impedance | 1MΩ±2% 20pF±3pF | | Probe attenuation | 1x、10x、100x、1000x | | Max.input voltage | 300V (DC+AC peak, 1MΩ) Voltage difference (△V) between cursors | | MEASUREMENT | | Cursor | Time difference (△T) between cursors | | Reciprocal of △T in Hz (1/△T) | | AUTO-Mesure | Frequency,Period,Mean,Pk-Pk,Cycil RMS,Min.,Max.,Rise time,Fall time,+Pluse width, -Pulse width,Delay1-2Rise,Delay1-2Fall,+Duty,-Duty,Vbase,Vtop,Vmid,Vamp, Overshoot,Preshoot,Preiod Mean,Preiod RMS,FOVShoot,RPREShoot,BWIDTH, FRF,FFR,LRR,LRF,LFR,LFF | | I/O | | Standard | USB(H) | | CALIBRATOR SIGNAL | | Output Voltage | 5V (≥1MΩ load) | | Output Frequency | 1 kHz | | POWER SOURCE | 100~120V, 45Hz~440Hz; 121~ 240V, 45Hz~66Hz; 30VA Max; CAT Ⅱ | | ACCESSORIES | Operation manual, power cord, USB cable, probe×2, software CD-ROM | | DIMENSIONS & WEIGHT | 313(W) × 108(H) × 142(D)mm, 2kg |
|
