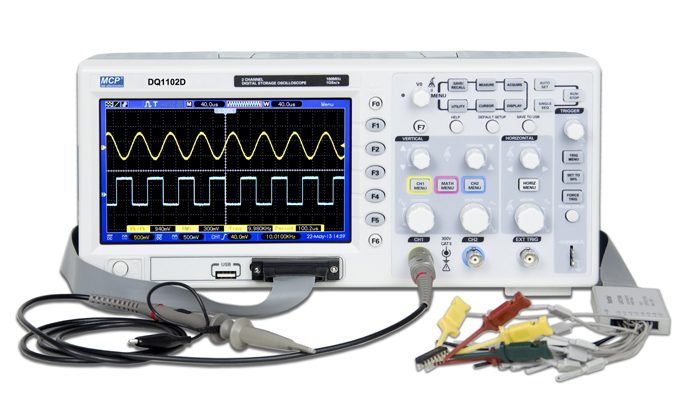

DQ1000D SEIRES
MIXED SIGNAL OSCILLOSCOPE
Features .Support logic analyzer and oscilloscope
.1GSa/s sampling rate and 50GSa/s equivalent
sampling rate
.1024k recording length
.7″wide screen 64k color TFT display
.USB-host for save and update
| Technical Data | DQ1062D | DQ1102D | DQ1202D | | Channels | 2 channels oscilloscope+ 16 channels logical analyser | | Sampling rate | 1GSa/s | | Equivalent sampling rate | 25GSa/s | | Display | | Type | 7″wide screen 64k color TFT LCD | | Display contrast | Adjustable (16 gears) with the progress bar | | Display resolution | 800 horizontal × 480 vertical pixels | Vertical system
| | Sensitivity and accuracy | 2mV/div~5V/div | | Vertical resolution | 8 bit | | Width of band (-3dB) | DC (AC 10Hz)
~ 60MHz | DC (AC 10Hz)
~ 100MHz | DC (AC 10Hz)
~ 200MHz | Selectable analog
bandwidth limit | 20MHz | | Rise time | ≤5.8ns | ≤3.5ns | ≤1.8ns | | DC gain Accuracy | ±4%(2mV/div~5mV/div) ±3%(10mV/div~5V/div) | | DC measurement accuracy | ±(3%Rdg.+0.1div+1mV)(10mV/div~5V)
±(3%(Rdg.+vertical position)+0.2div+1%(vertical position)
(2mV/div~200mV/div, +2mV; 200mV/div~5V/div, +50mV) | Horizontal system | | SEC/DIV range | 2ns~40s/div, at 2-4-8 increment | | Waveform interpolation | Sin(x)/x | | Recording length | 1024k | Sampling rate and delay
time accuracy | ±50ppm (any time interval 1ms) | Delta time
measurement accuracy | Single: ±(1 sampling time interval + 100ppm×Rdg. + 0.6ns) | | Average values: ± (1 sampling time interval + 100ppm×Rdg. + 0.4ns) | Trigger system | Mode
| Auto, normal, single | | Type | Edge, pulse, video, alternate | | Hold off range | 100ns~10s | Math
| +, -, x, ÷ | | FFT | Acquire input | | Input coupling | DC, GND, AC | | Input impedance | 1MΩ ±2% 20pF±3pF | | Probe attenuation | 1x, 10x, 100x, 1000x | | Max. input voltage | 300V (DC+AC peak) | | Measurement | | Cursor | Voltage difference ( V) between cursors
Time difference ( T) between cursors
Reciprocal of T in Hz (1/ T) | | Auto-measure | Vrms, Vavg, Vp-p, Vmax, Vmin, Vtop, Vhigh, Vlow, Vmid, Vamp;
Period, Freq, Rise, Fall, +Width, -Width, +Duty, -Duty, Delay | | I/O | | Standard | USB(D), USB(H) | | Options | LAN | | Calibrator | | Output voltage | 5V≥( 1MΩ load) | | Output frequency | 1kHz | | Logical analyzer | | Input channel | D0~D15 | | Max. input impedance | 200k (C=10P) | | Max. sampling rate | 500MHz | | Recording length | 512k | | Max. input voltage | ±60V | | Minimum voltage slew | 1.2Vpp | | Logic threshold range | ±8V | | Compatible input | TTL, CMOS, ECL | | Cursors | Voltage difference (ΔV) between cursors
Time difference (ΔT) between cursors
Reciprocal of ΔT in Hz (1/ΔT) | | Measurement | Period and Frequency | | Record postion | RefA, RefB | | Trigger mode | Edge | D0~D15 select slope (rising or falling edge) | | Pulse width | D0~D15 select pulse polarity (positive or negative pulse), trigger when (=, ≠, ＞, ＜), trigger pulse width | | Code-type | D0~D15 select code-type (H, L, X) | | Duration | D0~D15 select persist time and trigger when
(data terminate, data start, and data delay) | | Queue | D0~D15 select specific data index (0~3) and code-type (H, L, X) | | Repeat | D0~D15 select code-type (H, L, X) and repeat times | | Power source | 100~120VACrms (±10%), 45~440Hz; 30VA Max; CAT Ⅱ
120~240VACrms(±10%), 45~66Hz; 30VA Max; CAT Ⅱ | | Dimensions (Wx Hx D) | 315×142×110mm | | Weight | 2.1kg | | Accessories | Operation manual, power cord, USB cable, probe×2, sofrware CD-ROM, logic analyzer probe |
|
