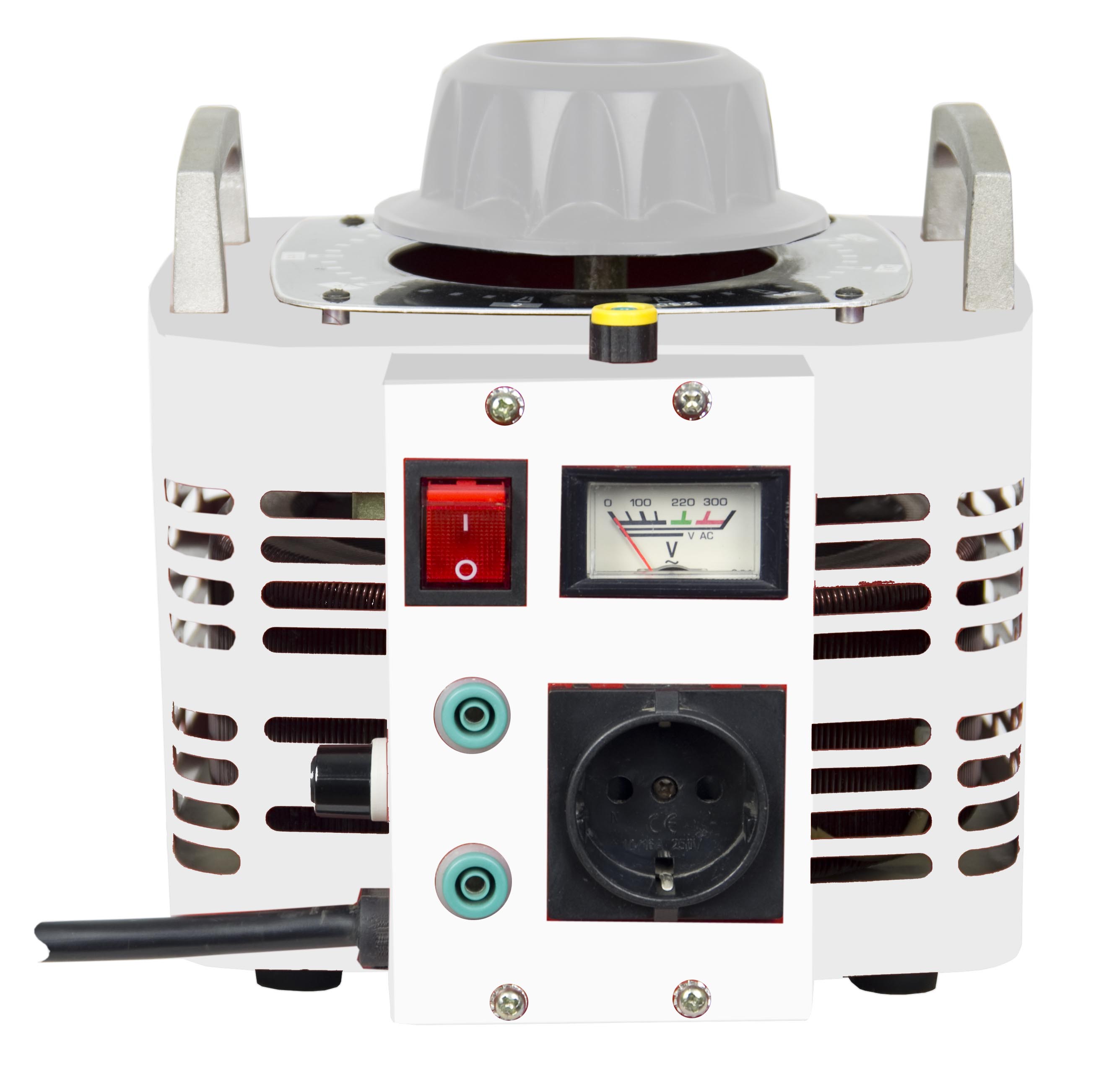

M10-500 SERIES
VARIAC
|
| Features
.Power cable plug or binding post for input. .4mm safety socket, outlet or binding post for output. .High efficiency and convenient use .Digital meter optional
| Specifications |
| Model | Input Voltage | Output Voltage | Max Power | Max Current | Dimensions (WxHxD) | Weight (kg) |
|---|
| M10-522-02 | 220(230)VAC | 0~250VAC | 200VA | 1A | 115x130x125mm | 2.5 | | M10-522-05 | 220(230)VAC | 0~250VAC | 500VA | 2A | 125x145x160mm | 4 | | M10-522-10 | 220(230)VAC | 0~250VAC | 1000VA | 4A | 185x160x210mm | 6 | | M10-522-20 | 220(230)VAC | 0~250VAC | 2000VA | 8A | 185x190x210mm | 8 | | M10-522-30 | 220(230)VAC | 0~250VAC | 3000VA | 12A | 200x210x250mm | 11 | | M10-522-50 | 220(230)VAC | 0~250VAC | 5000VA | 20A | 235×250×290mm | 17 | | M10-511-02 | 100(115)VAC | 0~130VAC | 200VA | 2A | 125×145×160mm | 4 | | M10-511-05 | 100(115)VAC | 0~130VAC | 500VA | 4A | 185×160×210mm | 6 | | M10-511-10 | 100(115)VAC | 0~130VAC | 1000VA | 8A | 185×160×210mm | 8 | | M10-511-20 | 100(115)VAC | 0~130VAC | 2000VA | 15.5A | 200×210×250mm | 11 | | M10-511-30 | 100(115)VAC | 0~130VAC | 3000VA | 23A | 235×250×290mm | 17 | | M10-512-02 | 100(115)VAC | 0~250VAC | 200VA | 2A | 125×145×160mm | 4 | | M10-512-05 | 100(115)VAC | 0~250VAC | 500VA | 4A | 185×160×210mm | 6 | | M10-512-10 | 100(115)VAC | 0~250VAC | 1000VA | 8A | 185×160×210mm | 8 | | M10-512-20 | 100(115)VAC | 0~250VAC | 2000VA | 15.5A | 200×210×250mm | 11 | | M10-512-30 | 100(115)VAC | 0~250VAC | 3000VA | 23A | 235×250×290mm | 17 |
Input and output mode | Model | Input | Output | | M10-522-02 | Power cable plug | 4mm safety socket
| | M10-522-05 | Power cable plug | 4mm safety socket | | M10-522-10 | Power cable plug | 4mm safety socket, outlet socket | | M10-522-20 | Power cable plug | 4mm safety socket, outlet socket | | M10-522-30 | Power cable plug | 4mm safety socket, outlet socket | | M10-522-50 | Binding post | Binding post | | M10-511-02 | Power cable plug | 4mm safety socket | | M10-511-05 | Power cable plug | 4mm safety socket, outlet socket | | M10-511-10 | Power cable plug | 4mm safety socket, outlet socket | | M10-511-20 | Power cable plug | 4mm safety socket, outlet socket | | M10-511-30 | Binding post | Binding post | | M10-512-02 | Power cable plug | 4mm safety socket | | M10-512-05 | Power cable plug | 4mm safety socket, outlet socket | | M10-512-10 | Power cable plug | 4mm safety socket, outlet socket | | M10-512-20 | Power cable plug | 4mm safety socket, outlet socket | | M10-512-30 | Binding post | Binding post |
|
