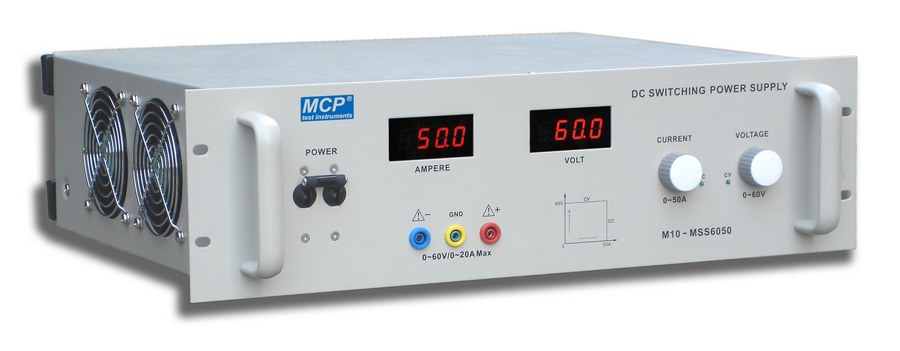

M10-MSS SERIES
SWITCHING POWER

Features

.Two LED digital panel meters

.Constant voltage and constant current operation.

.Efficiency up to 90%

.High power density, small and light

.19-inch rack mount(3U) and benchtop

.Voltage and current control by 10-turn potentiometer, resolution 0.03%

.Protected against all overload and short circuit conditions

.Silent operation with temperature controlled fan

.Isolated analog and digital programming interface option

Specifications

.Line Regulation: CV500mV CC500mA

.Load Regulation: CV 5% CC 2%(M10-MSS30100)
                             CV 2.5% CC 2%(M10-MSS6050)
                             CV 2% CC 2%(M10-MSS10030)

.Ripple & Noise: CV 0.5% Vmax (20Hz~20MHz)   CC 0.5% Imax

.Display Accuracy:Voltmeter ±(1%Rdg+2 digits)   Ampmeter ±(1%Rdg+5digits)

.Input Voltage: 110~127VAC±10%, 220~240VAC±10%, Switchable

.Dimensions: 19" 3U

.Weight: 12.5kg
