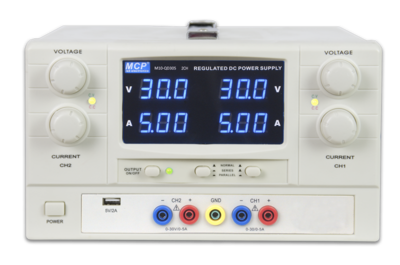

M10-QD SERIES
DUAL OUTPUT ADJUSTABLE DC POWER SUPPLY
Features
. Output off function
. Dual independent adjustable DC outputs
. USB power output (5V/2A)
. Independent, series and parallel variety output
. Constant voltage and constant current
. Low ripple and noise
. Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously
. 16 hours continuous output with full load
. Auto tracking output
Specifications
| Line Regulation: | CV | ≤5×10-4 + 3mV (M10-QD3010, M10-QD3020, M10-QD6010) |
≤1×10-4 + 3mV (other models) |
| CC | ≤4×10-3 + 3mA (M10-QD3010, M10-QD3020, M10-QD6010) |
| ≤2×10-3 + 3mA (other models) |
| Loading Effect: | CV | ≤5×10-4 + 3mV (output current≤10A)
≤1×10-3+ 3mV (output current>10A) (M10-QD3010, M10-QD3020, M10-QD6010) |
| CC | ≤1×10-4 + 3mV (output current≤3A)
≤2×10-4 + 3mV (3A≤output current<10A) (other models) |
| .Ripple & Noise: |
| 1.5mV (rms) (M10-QD3010, M10-QD3020, M10-QD6010) 1mV (rms) (other models) |
| .Display Accuracy: |
| ±0.5%Rdg+2digits |
| .Input Voltage: |
| 110~127VAC±10%, 220~240VAC±10% Switchable |
| Model | Independent Output | Series Output | Parallel Output | Dimensions
(WxHxD) | Weight (kg) |
|---|
| M10-QD302 | CH1/0~30V/0~2A
CH2/0~30V/0~2A | CH1+CH2
0~60V/0~2A | CH1//CH2
0~30V/0~4A | 250x135x300mm | 8 |
| M10-QD303 | CH1/0~30V/0~3A
CH2/0~30V/0~3A | CH1+CH2
0~60V/0~3A | CH1//CH2
0~30V/0~6A |
| M10-QD305 | CH1/0~30V/0~5A
CH2/0~30V/0~5A | CH1+CH2
0~60V/0~5A | CH1//CH2
0~30V/0~10A |
| M10-QD3010 | CH1/0~30V/0~10A
CH2/0~30V/0~10A | CH1+CH2
0~60V/0~10A | CH1//CH2
0~30V/0~20A | 250x135x460mm | 12 |
| M10-QD3020 | CH1/0~30V/0~20A
CH2/0~30V/0~20A | CH1+CH2
0~60V/0~20A | CH1//CH2
0~30V/0~40A | 16 |
| M10-QD6010 | CH1/0~60V/0~10A
CH2/0~60V/0~10A | CH1+CH2
0~120V/0~10A | CH1//CH2
0~60V/0~20A | 16 |
