AUTOMOTIVE BASIC ELECTRONIC CIRCUIT TRAINING SYSTEM
Feature

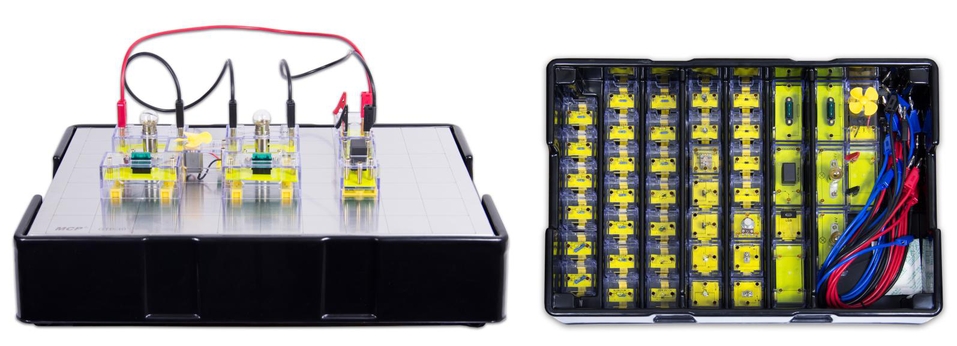

The training system of automotive basic electronic circuits are designed for automotive relative field electronic training course such as automotive factory, motorbike factory, service center, 4S shop, automotive maintain station, automotive training school. An educational training equipment for training basic electronic circuits and automotive electronic device. It is effective for study and training with 20 types of basic electronic circuits and 5 types of automotive electronic circuits using the written experiment manual and also for you doing your own designed other more experiment. It has 36 pcs of basic components and 9 pcs of automotive components.All components are separated as in transparent plastic boxes with magnetic stand on a grid panel.
| SYSTEM CONTAIN: |
1. Grid panel and tray / 1 pc
2. Components / 45 pcs
3. Leads (5 red, 5 blue, 5 black) / 15 pcs
4. Experiment manual / 2 copies
|
| EXPERIMENTS CONTENT |
1: Series resistors circuit 2: Parallel resistors circuit 3: Compound resistors circuit 4: Ohm's law I = F (V) 5: Ohm's law I = F (R) 6: Kirchhoff's Laws on voltage 7: Kirchhoff's Laws on current 8: Superposition theorem 9: Thevenin's theorem 10: Norton's theorem 11: Voltage divider circuit 12: Wheatstone bridge circuit |
13: Characteristics of PTC resistor
14: Characteristics of NTC resistor 15: The function of the relay 16: Operation of diode in DC circuit 17: Characteristics of NPN and PNP type transistor 18: Rectifier and filter current circuit 19: Characteristics of Zener diode 20: Simulate automotive starting motor circuit 21: Automotive relay circuit 22: Automotive lamp circuit 23: Automotive turn signal circuit 24: Automotive fuse circuit
|
OPTIONAL EQUIPMENT
12V (24V) DC power supply (M10-300)
M10-300-10 (12V or 24V,10A) M10-300-15 (12V or 24V,15A)
TURN SIGNAL LAMP EXPERIMENT
