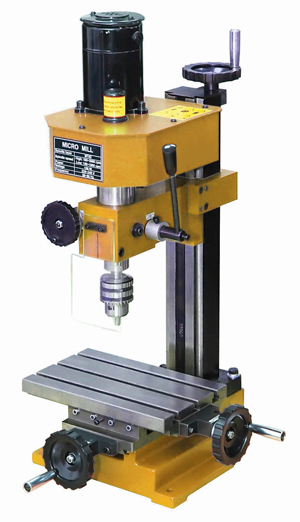

MX1 MILLING MACHINE

Details

MX1 MILLING MACHINE

Features

.Variable speed
.Over load protection
.Inside leadscrew

Technical Data
Drilling capacity	10mm
End milling capacity	10mm
Face milling capacity	16mm
Table	Table size	240×145mm
	T slot (amount×width×distance)	3×8mm×45mm
	Max. load	20kg
Travel	X travel	180mm
	y travel	90mm
	Z travel	230mm
	Spindle nose to table	45~275mm
	Max. distance spindle to table	220mm
Spindle	Spindle taper	Mt2
	Spindle motor	150W
	Spindle speed	100~1000r/min.(low range) 100~2000r/min.(high range)
Accessory	Φ10mm drill chuck, wrench set, oil can
Power source	230V or 120V
Dimensions(W×H×D)	340mm × 320mm × 600mm
Packing size(W×H×D)	410mm × 420mm × 660mm
Weight	32kg(NW)/44kg(GW)

Optional Accessories **Accessories in Black are necessary
M:10035 Quick vice (width 50mm)		M:10076 MT2 collet ￠8mm
M:10038 2 Flute Hss end mill ￠4mm		M:10077 MT2 collet ￠10mm
M:10039 2 Flute Hss end mill ￠6mm		M:10078 MT2 collet ￠3-10mm set
M:10040 2 Flute Hss end mill ￠8mm		M:10104 Clamping kit 12 pcs
M:10041 2 Flute Hss end mill ￠10mm		M:10105 Clamping kit 24 pcs
M:10067 2 Flute Hss end mill ￠3mm		M:10106 Oil tray for X1
M:10068 2 Flute Hss end mill ￠5mm		M:10108 Vice width 55mm
M:10069 2 Flute Hss end mill ￠3~10mm set		M:10116 Stub milling machine arbor
M:10070 Mill chuck set		M:10117 Rolling center (MT #1)
M:10071 Indexable carbide end mill		M:10118 Stub milling machine arbor
M:10072 MT2 collet ￠3mm		M:10133 Vice width 70mm
M:10073 MT2 collet ￠4mm		M:10254 Stand
M:10074 MT2 collet ￠5mm
M:10075 MT2 collet ￠6mm
