SINGLE & THREE-PHASE LOAD
Features
.Steps of 20%
.DC mode or 220V(50Hz) single phase
.Three-phase star 380V(50Hz) and delta 220V(50Hz)
| Model | Power | Resistor | Dimensions
(W×H×D) mm | Weight
(kg) | Phase |
| SRL-1000 | 200W/400W/600W
800W/1000W | 242Ω/121Ω/81Ω
61Ω/48Ω | 200×250×425 | 8 | Single |

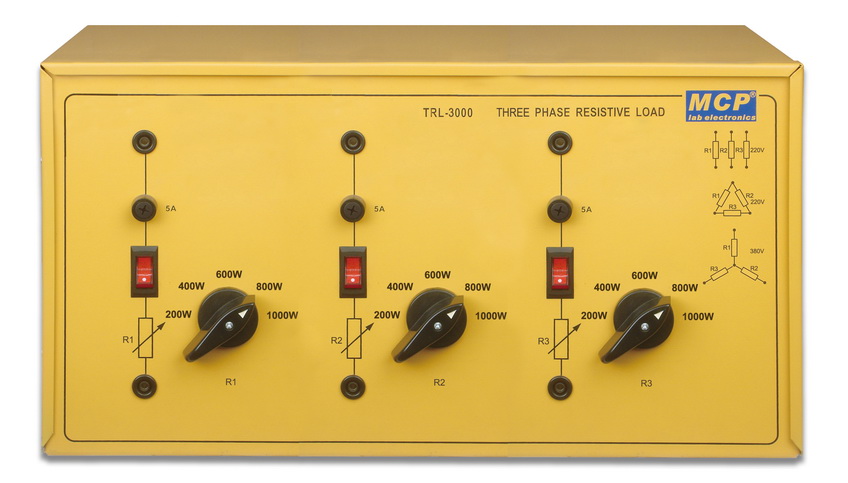

| TRL-3000 | (200W/400W/600W
800W/1000W)×3 | (242Ω/121Ω/81Ω
61Ω/48Ω)×3 | 400×250×425 | 24 | Three |
| Model | Power | Capacitor | Dimensions
(W×H×D) mm | Weight
(kg) | Phase |
| SCL-1000 | 200W/400W/600W
800W/1000W | 13μF/26μF/39μF
53μF/66μF | 150×130×185 | 1.5 | Single |

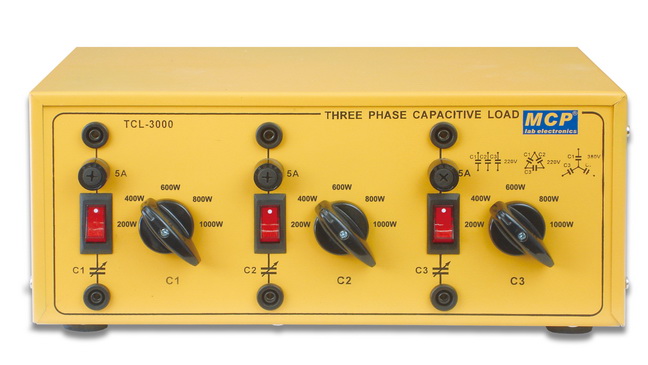

| TCL-3000 | (200W/400W/600W
800W/1000W)×3 | (13μF/26μF/39μF
53μF/66μF)×3 | 300×130×185 | 3 | Three |
| Model | Power | Inductor | Dimensions
(W×H×D) mm | Weight
(kg) | Phase |
| SIL-1000 | 200W/400W/600W
800W/1000W | 770mH/385mH/257mH
193mH/154mH | 190×150×365 | 10 | Single |

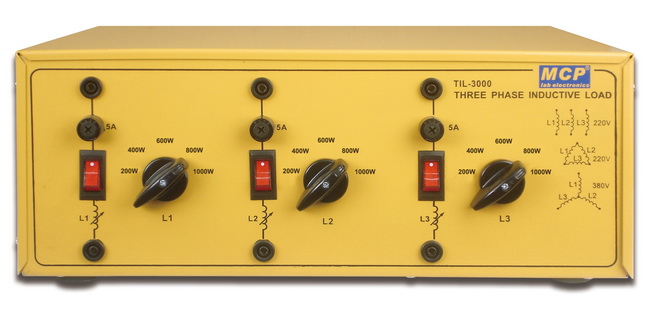

| TIL-3000 | (200W/400W/600W
800W/1000W)×3 | (770mH/385mH/257mH
193mH/154mH)×3 | 380×150×365 | 30 | Three |
