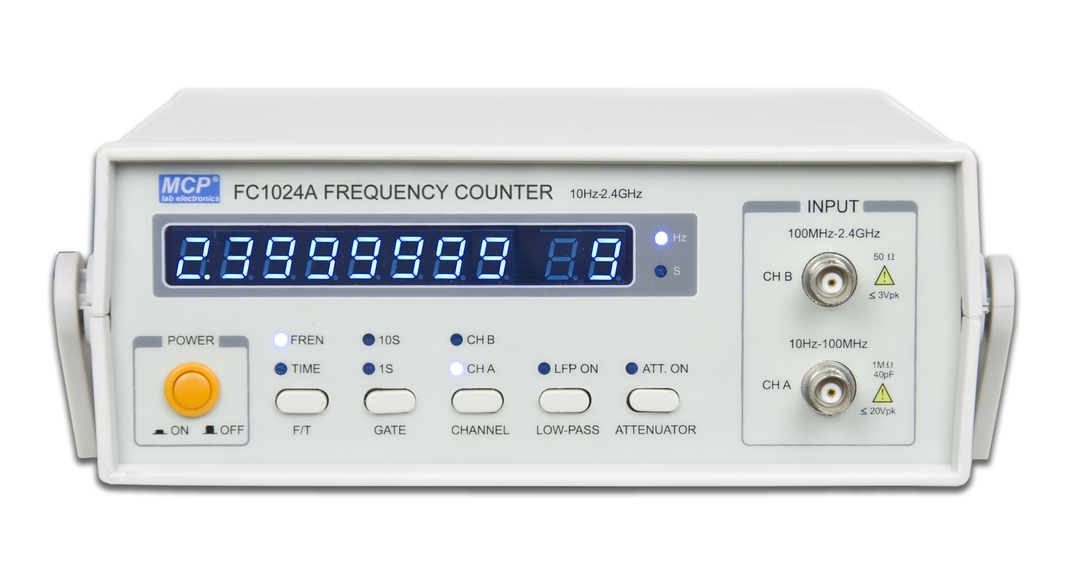

FC1024A
MULTI-FUNCTION COUNTER
Features
.8 digits LED display
.Measure range up to 2.4GHz (channel B)
.Low pass filter for low frequency measuring
.Two channels input
| Function | measure frequency, period |
| Measure frequency range | 10Hz~100MHz (channel A)
100MHz~2.4GHz (channel B) |
| Period range | 100ns~1s (channel A) |
| Sensitivity | 35mV (1~20Hz)
20mV (20Hz~100MHz)
30mV (100MHz~2.4GHz) |
| Max input voltage | 250V (channel A), 1/20 attenuation
30mVrms~1Vrms (channel B) |
| Input impedance | 1MΩ (channel A)
50Ω (channel B)
|
| Channel A LPF | -3dB bandwidth about 100kHz |
| Channel A att. | 1:20 |
| Couple mode | AC |
| Measure error | ±1X10-5 |
| Gate time | 1s, 10s |
| Dimensions(WxHxD) | 230 × 85 × 240mm |
| Weight | 1.5kg |
