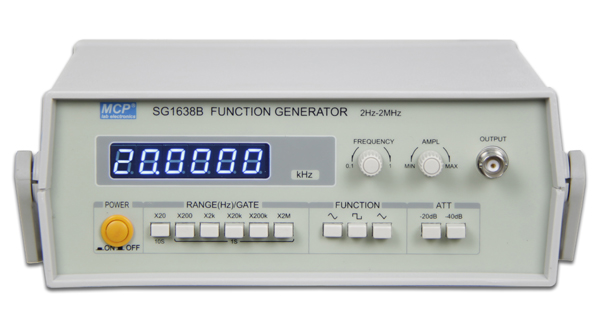

SG1638B
FUNCTION GENERATOR
Features
.Three waveforms: sine, triangle, square
.6 ranges of frequency, up to 2MHz
| Technical Data | SG1638B |
| Main output | Output frequency | 0.2Hz~2MHz |
| Output waveforms | Sine, Square, Triangle |
| Output impedance | 50Ω±10% |
| Output amplitude | ≥20Vp - p (1MΩ Load); ≥10Vp - p (50Ω Load) |
| Output attenuation | 20dB/40dB |
| Attenuation accuracy | ±3% |
| Sine wave | Distortion factor | ≤2% (≤2100kHz) |
| Frequency response | ±0.5dB (≤100kHz) ±1dB (＞100kHz) |
| Square wave | Rise or fall time | 100ns (5Vp-p 1MHz) |
| Triangle wave | Linear | 98% (≤100kHz), 95% (＞100kHz) |
| Power supply | 110~127 VAC±10%, 220~240VAC±10%, 50Hz±2Hz / 60Hz±2Hz |
| Dimension(W×H×D) | 225(W) ×105(H)×195(D)mm |
| Weight | 2kg |
